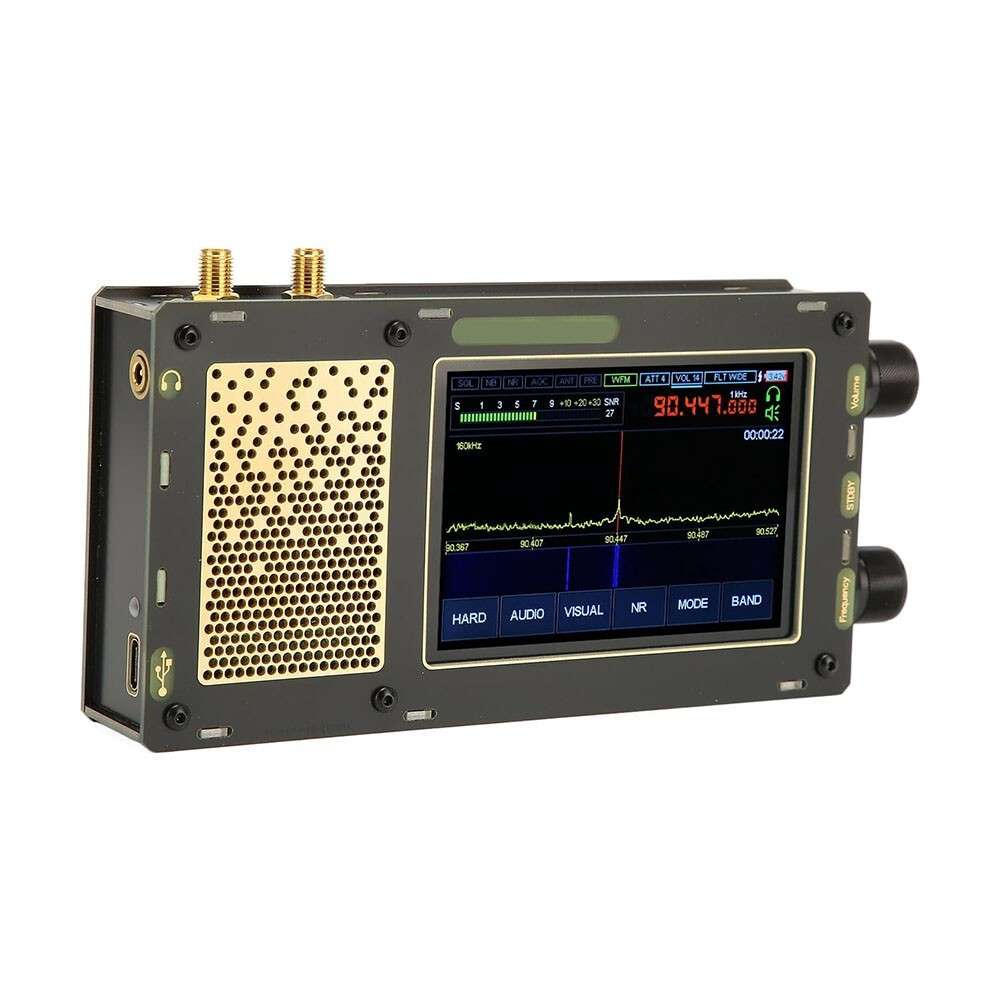

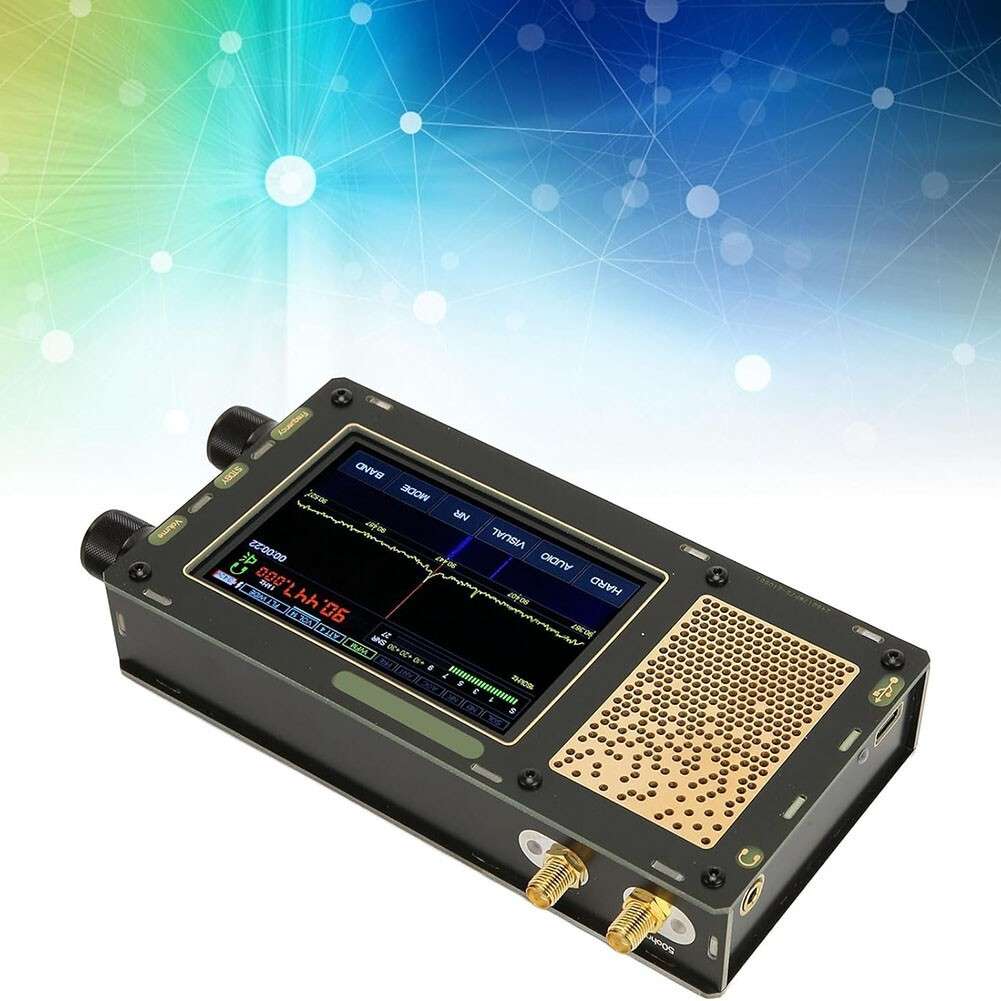

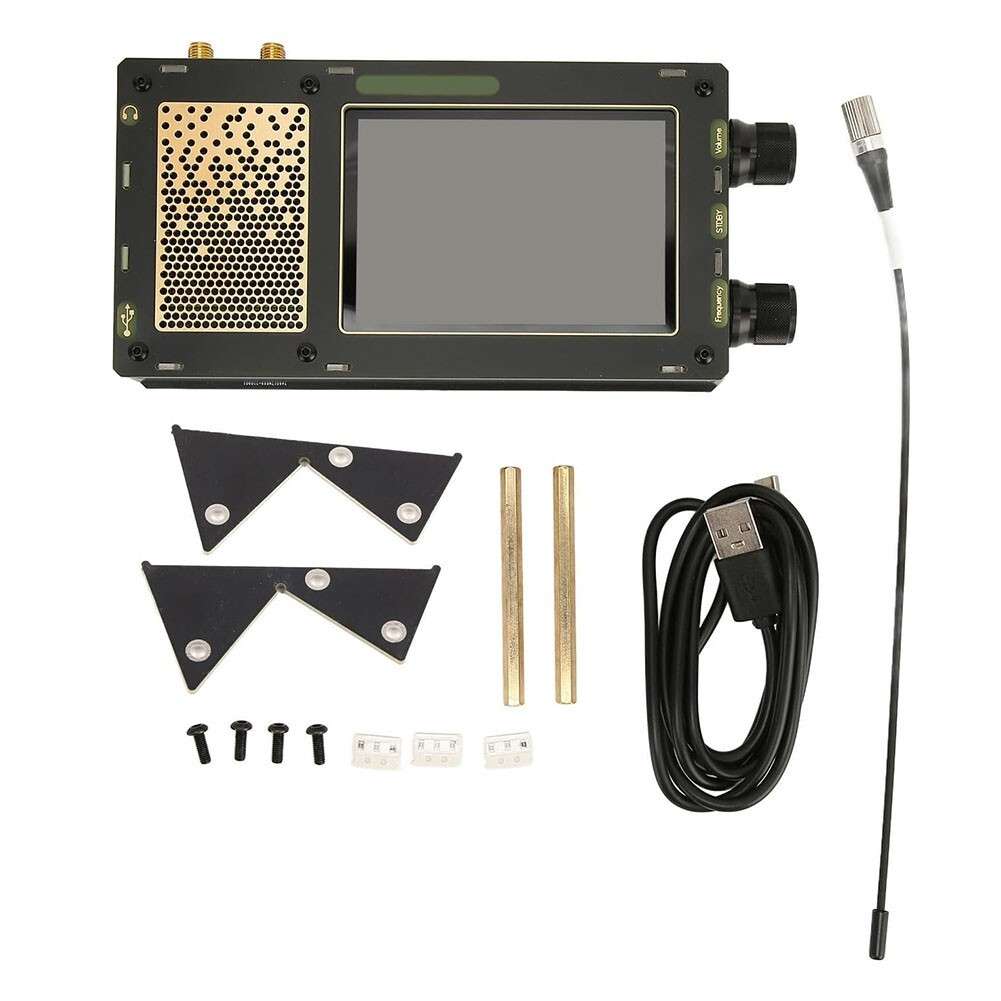

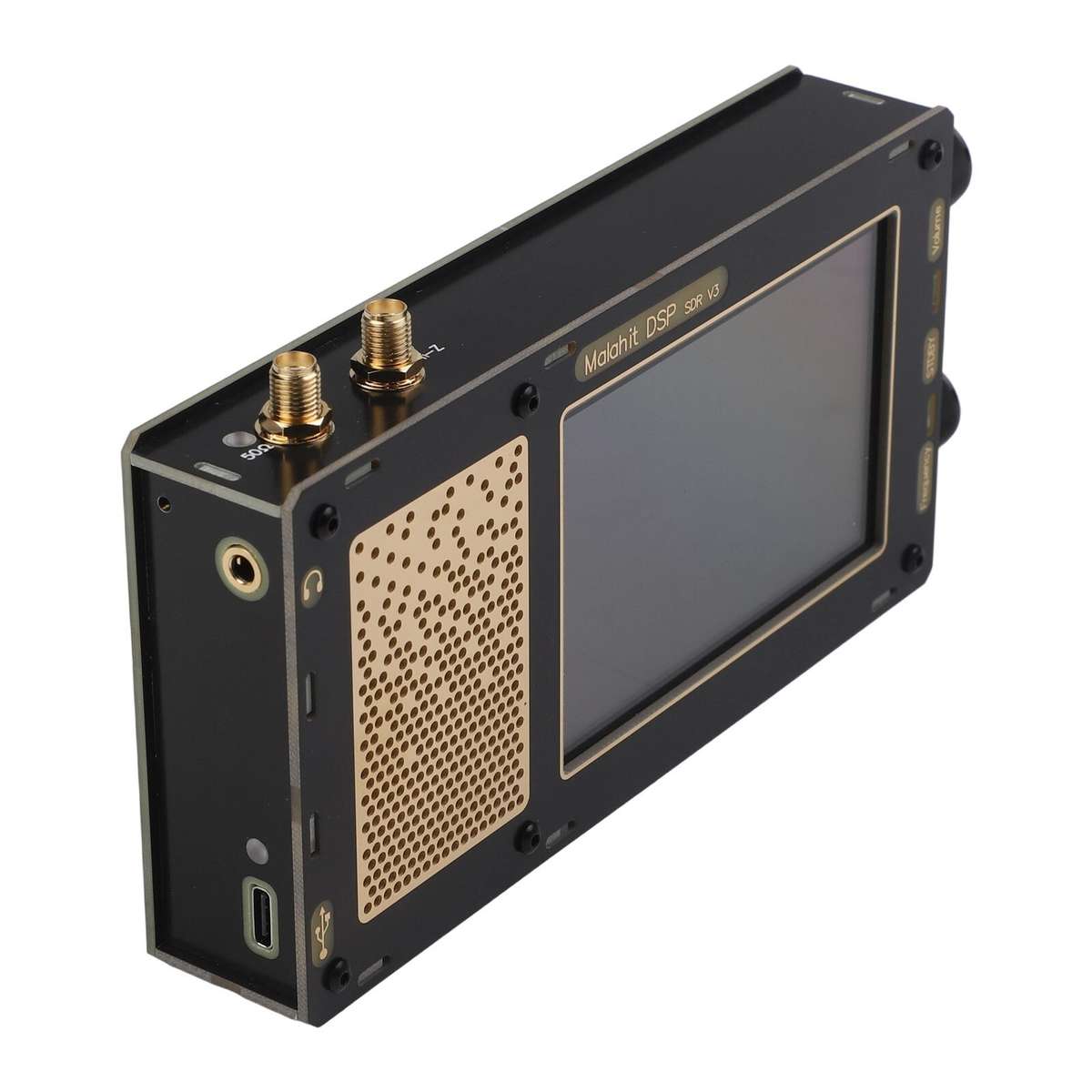

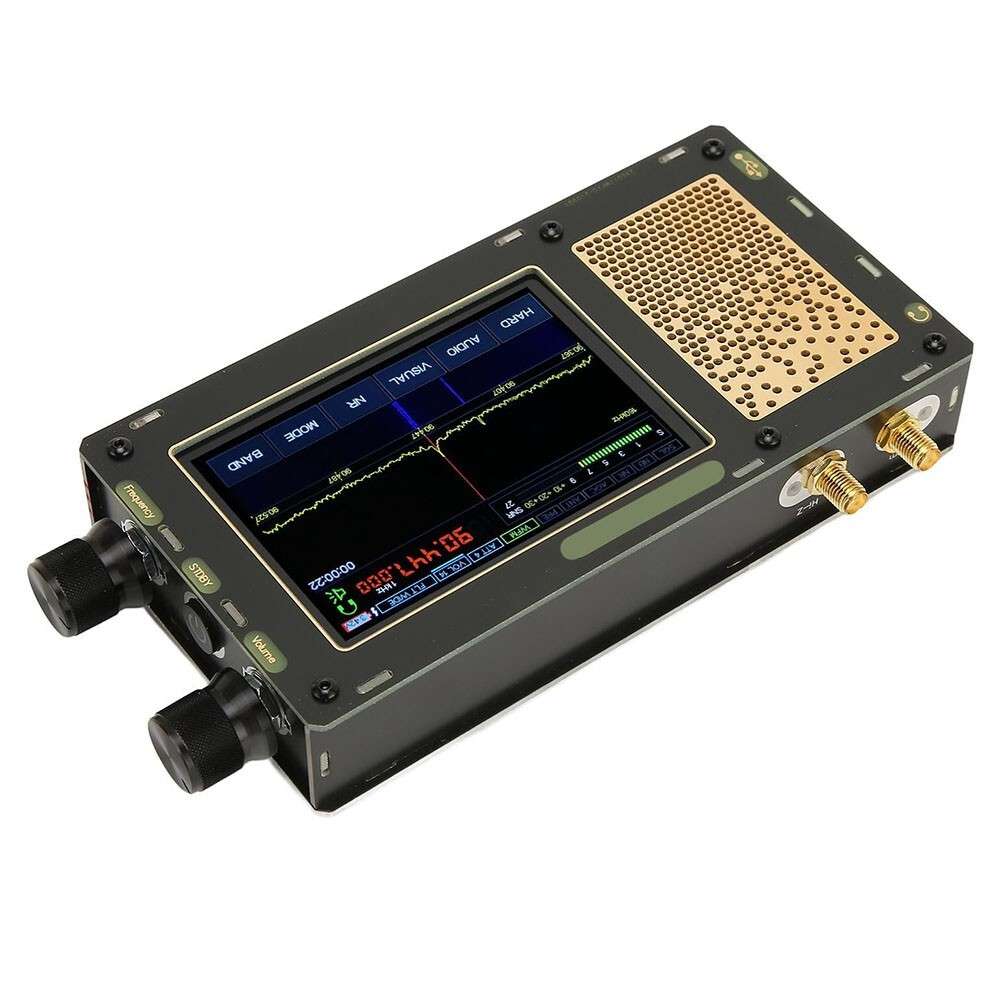

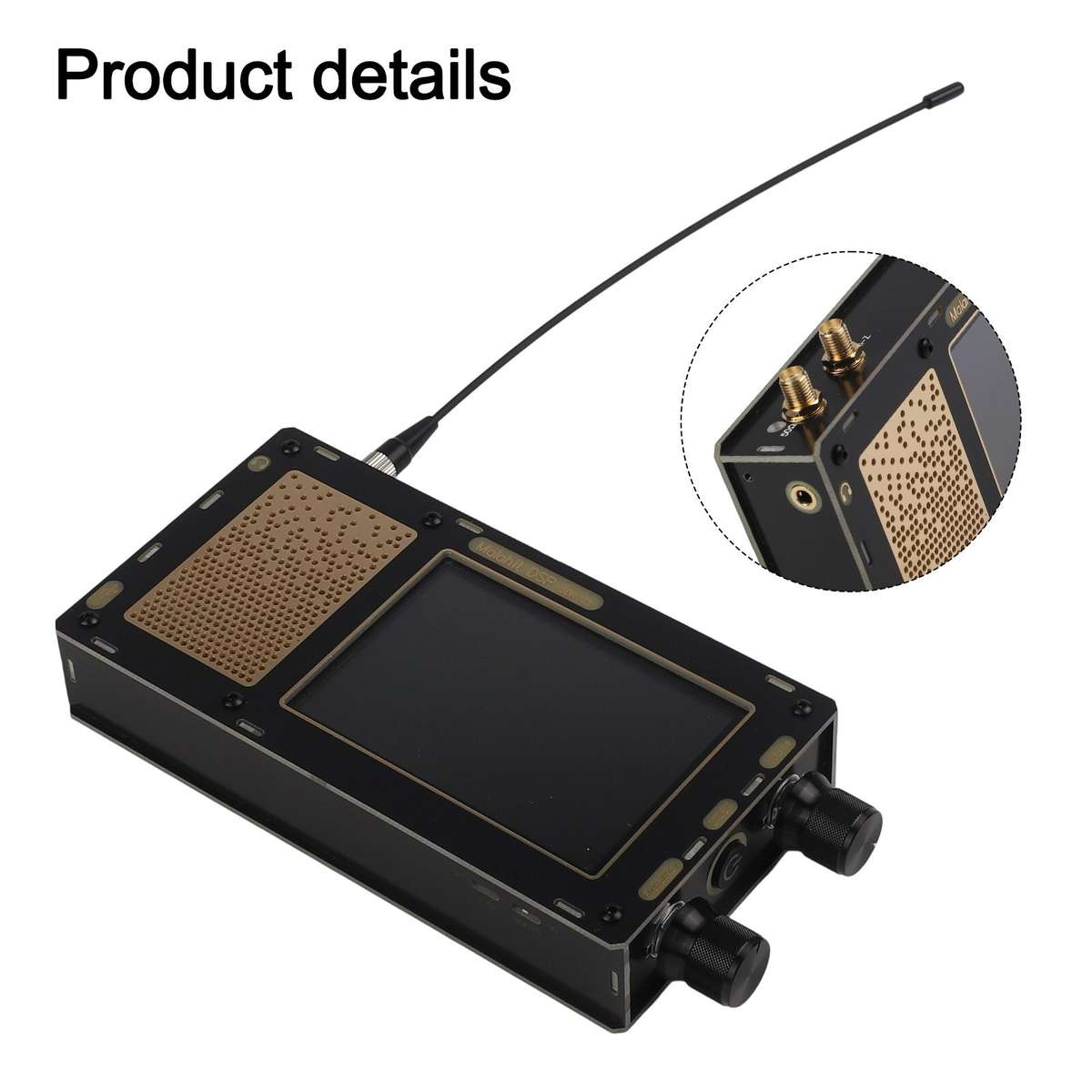

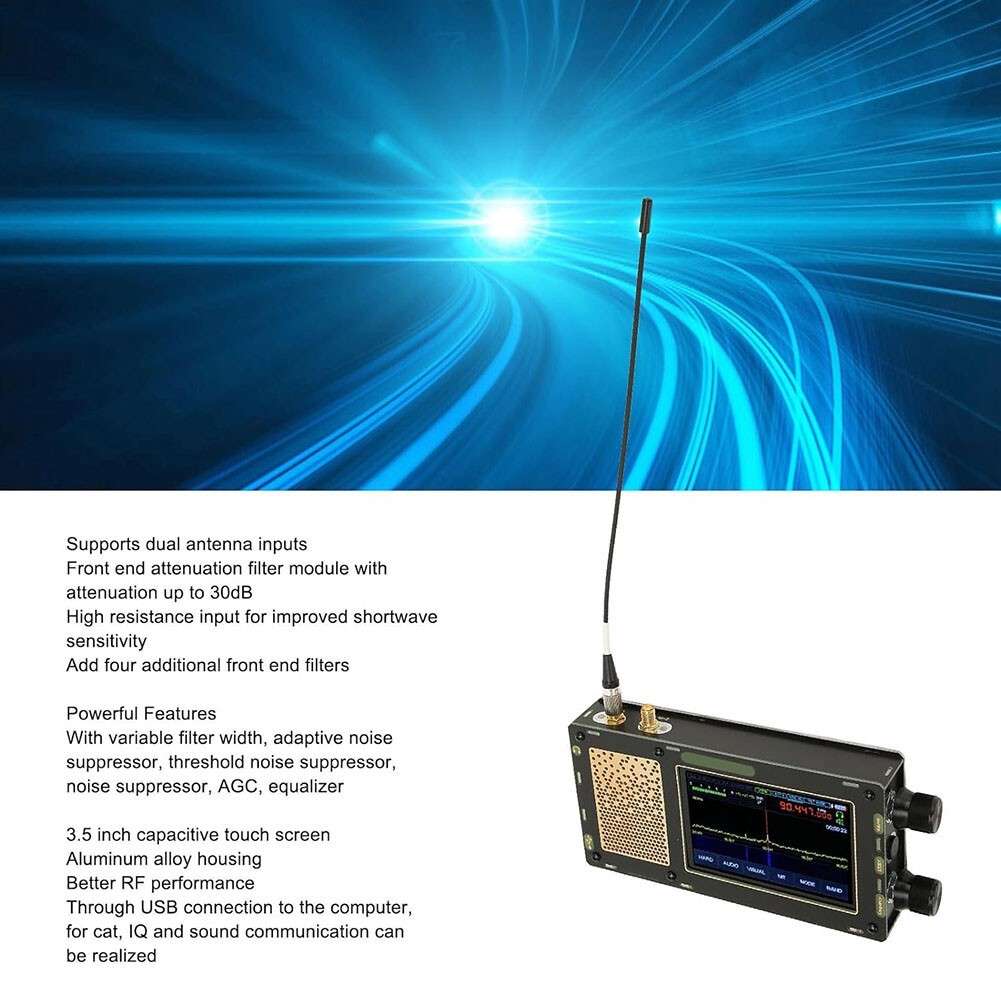

DESCRIPTION Features: * The demodulation mode of the for DSP receiver adopts AM, SSB, NFM, WFM, CW. Based on the S DR architecture, it adopts the msi001 RF front end for 12-bit quantitative sampling, adopts the stm32h743 processor, and the main frequency is up to 480MHz. * High sensitivity and long battery life] The frequency range of this for DSP receiver is 50 kHz?2.0GHz (registered version 1.10d), S, W is 0.3V 10dB, and it can reach up to 250MHz. The built-in 3000mAh battery provides long playback. * The for DSP receiving radio filter supports dual antenna input, front-end attenuation filter module, up to 30dB attenuation, high impedance input, improved shortwave sensitivity, and four additional front-end filters. * Multi-function This shortwave for DSP radio receiver has powerful built-in functions, including variable filter width, adaptive noise suppressor, threshold noise suppressor, noise suppressor, AGC, equalizer. * USB connected 3.5 inch capacitive touch screen. PCB housing, better RF performance, connected to computer via USB, cat enabled, for IQ and voice communication. Specifications: Part Name: Receiver Material: PCB Color: As picture Size: Standard Battery: Li-ion battery 503450 (built-in), capacity: 3000mAh Screen: 3.5 inch IPS capacitive touch screen Demodulation: AM, SSB, NFM, WFM, CW. Frequency Value: Range 50 KHz to 49.999 MHz, 50.001 MHz to 249.999 MHz, 400 MHz to 2 GHz MCU: Powerful stm32h743, main frequency is 480mhz. Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise suppressor, AGC, equalizer. Demodulation chip: Adopts the chip msi001 with full functions, high integration and high reliability. Connection: Connect to computer via USB for cat, can realize for IQ and voice communication Tuner technology: DAB Package Contents: 1 x Receiver 1 x Type C Charging Cable 1 x Antenna 4 x Screws 2 x Nuts 2 x Brackets Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
