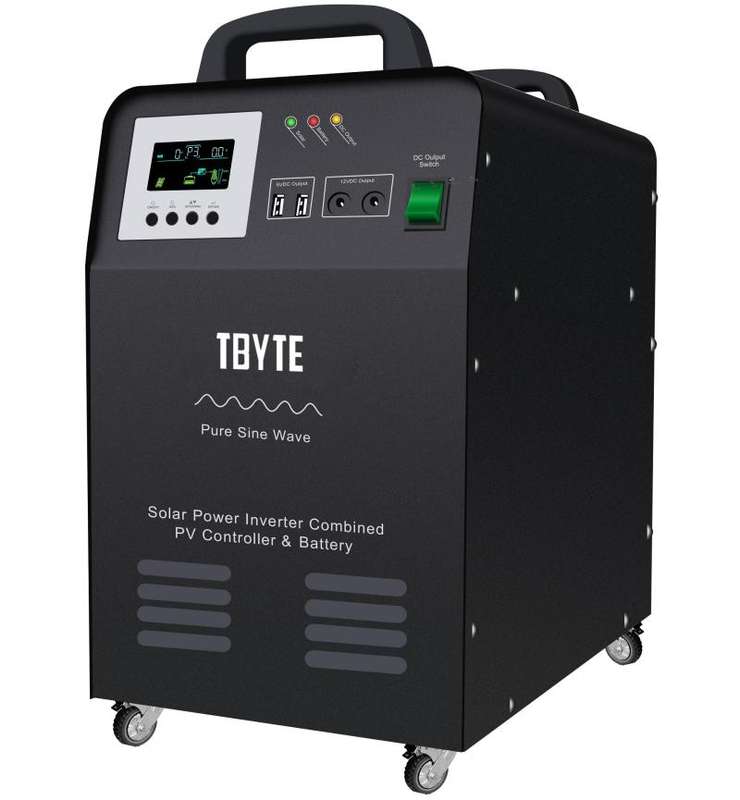

500W Trolley Inverter with 12V 65AH BAT

TBYTE 500W TROLLEY INVERTER WITH 12V 65AH BAT - SP500W

Integrated Photovoltaic Power Point Energy Storage System

Intelligent charge and discharge Management System Function, effectively protect the Battery Charge and discharge

Colorful and bright Display, visually Display the working status of the machine.

Output Overload, Overvoltage, Overtemperature, short circuit intelligent protection

Output pure sine wave, strong Load Capacity

Built-In Solar Charge Controller, High Charging efficiency

Adjustable Switching Mode, DC, AC, Solar priority Mode

Solar Power Inverter Combined PV Controller & Battery

Model: SP0512-55P

Battery Voltage: 12V 24V

In-Built Battery Specification: 65AH

Rated Power: 500W

Output Voltage: 110VAC/220VAC

Output Frequency: 50/60Hz

Output Waveform: Pure Sine Wave

Charge By A Mians Supply

Rated Voltage 110VAC/220VAC��*(* means an optional function)

Charge Current: 8A

Solar Input

Maximum Photovoltaic Voltage (VDC) =25V

Charge Voltage (VDC): 13.7V

Rated Charge Current (A): (PWM)5-10A

Maximum Power(Wp): 360Wp

Voltage Of Overcharge Protection(VDC):14.2V

Voltage Of Overcharge Recovery(VDC): 14.0V

Voltage Of Floating Charge(VDC): 13.7V

DC Output

Voltage Of High-Voltage Protection(VDC): 16V

Voltage Of High-Voltage Recovery(VDC): 15.2V

Voltage Of Low-Voltage Recovery(VDC):13V

Voltage Of Low-Voltage Protection(VDC): 11V

5VDC USB Output Port 5VDC USB: 2units/MAX 2A

12VDC Output Port 12VDC: 2 DC Ports (MAX 2A)

Starting Temperature Of The Exhaust Fan: >45?

Ambient Temperature For Operation: 0-40?

Ambient Temperature For Storage: -25-55?

Operation/Storage Conditions/ : 0-90%(No Condensation)

External Dimensions: D x W x H(mm) 423 x 260 x 453

Packing Dimensions: D x W x H(mm) 520 x 370 x 520
