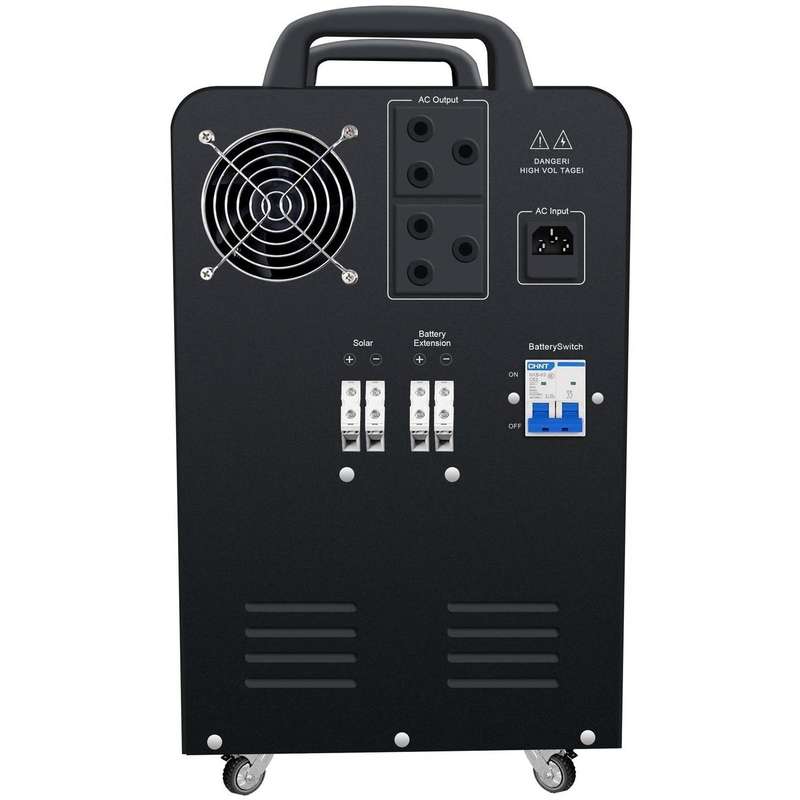

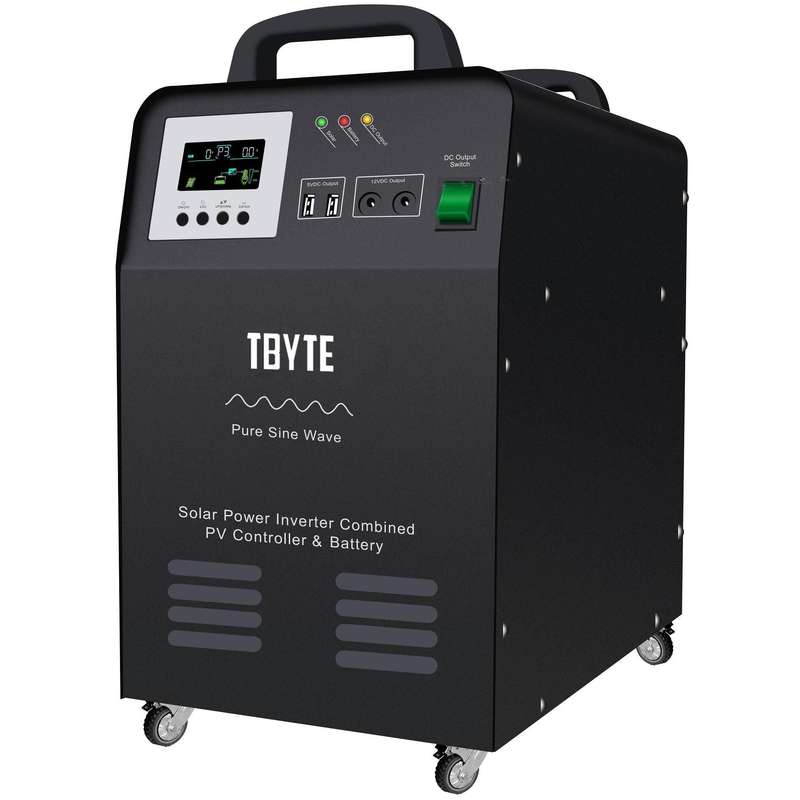

TBYTE 500W TROLLEY INVERTER WITH 12V 65AH BAT - SP500W
Battery Type_ Lead Acid Battery
Integrated Photovoltaic Power Point Energy Storage System
Intelligent Charge and Discharge Management System Function, effectively protect the Battery Charge and Discharge
Colorful and bright Display, visually Display the working status of the machine
Output Overload, Overvoltage, Overtemperature, short circuit intelligent protection
Output pure sine wave, strong Load Capacity
Built-In Solar Charge Controller, High Charging efficiency
Adjustable Switching Mode, DC, AC, Solar priority Mode
Solar Power Inverter Combined PV Controller & Battery
Model: SP0512-55P
Battery Voltage_ 12V 24V
In-Built Battery Specification_ 65AH
Rated Power_ 500W
Output Voltage_ 110VAC/220VAC
Output Frequency_ 50/60Hz
Output Waveform_ Pure Sine Wave
Charge By A Mians Supply
Rated Voltage 110VAC/220VAC (* means an optional function)
Charge Current_ 8A
Solar Input
Maximum Photovoltaic Voltage (VDC) =25V
Charge Voltage (VDC): 13.7V
Rated Charge Current (A): (PWM)5-10A
Maximum Power(Wp): 360Wp
Voltage Of Overcharge Protection(VDC):14.2V
Voltage Of Overcharge Recovery(VDC): 14.0V
Voltage Of Floating Charge(VDC): 13.7V
DC Output
Voltage Of High-Voltage Protection(VDC): 16V
Voltage Of High-Voltage Recovery(VDC): 15.2V
Voltage Of Low-Voltage Recovery(VDC):13V
Voltage Of Low-Voltage Protection(VDC): 11V
5VDC USB Output Port 5VDC USB_ 2units/MAX 2A
12VDC Output Port 12VDC_ 2 DC Ports (MAX 2A)
Starting Temperature Of The Exhaust Fan_ >45
Ambient Temperature For Operation_ 0-40
Ambient Temperature For Storage: -25-55
Operation/Storage Conditions/ : 0-90%(No Condensation)
External Dimensions_ D x W x H(mm) 423 x 260 x 453
Packing Dimensions_ D x W x H(mm) 520 x 370 x 520
https://www.micropointsa.co.za/assets/documents/sp500w/datasheet/datasheet.pdf
