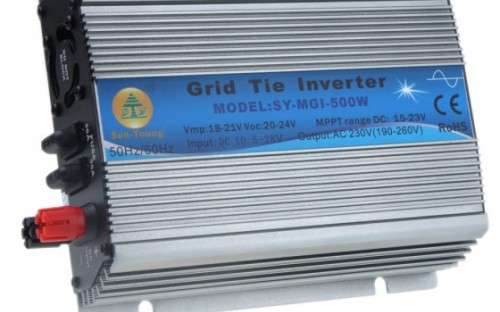

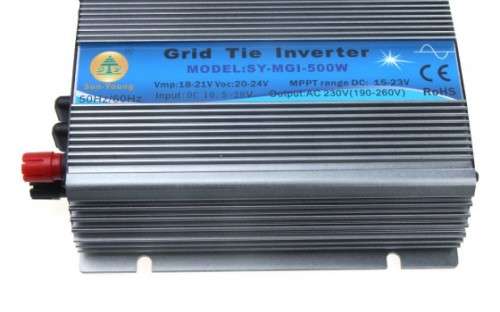

500W Watt Micro Grid Tie Inverter Accept DC 10.5-28V AC 230V Solar Power Pure Sine Wave

 500W Watt Micro Grid Tie Inverter Accept DC 10.5-28V AC 230V Solar Power Pure Sine Wave

Features:
Pure sine wave output.
High utilization of solar energy by using MPPT (maximum power point tracking) technology.
Over current protection.
Reverse polarity protection, avoid machine fault.
Support stackable (connect in parallel for higher output).
LED indicators reflect well working condition or machine fault.
Environment friendly.
Simple and safe to install.

Specifications:
Power - 500W
Solar Panels - Vmp18-21V;Voc20-24V
DC MAX Input - 600W
DC Input Range - 10.5-28V
MPPT Voltage - 15.5-20VDC

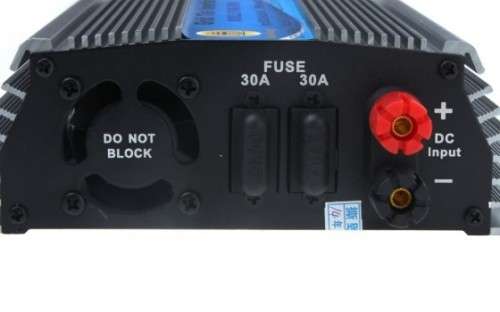

DC MAX Current - 30A
AC MAX Output - 550W
AC Output Range - 230VAC(190-260VAC)
Frequency Range - 50Hz/60Hz(Auto control)
Power Factor - >97.5%
THD - Phase Shift - Efficiency - 230VAC(190-260VAC)
Peak Efficiency - 87%
Stable Efficiency - 85%
Protection - Islanding; short-circuit; converse connection; low voltage; over voltage; over temperature protection
Work Temperature - 25-65 degrees
Work Environment Humidity - 0%~90%RH non-condensing
Grade of Waterproof - Indoor design

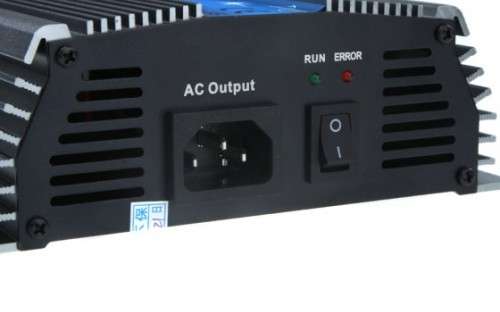

Show - 1 red and 1 green
Cooling - Fan
Stand-by Power - 2-3W
EMC - EN61000-6-3:2007 EN61000-6-1:2007
Grid Disturbance - EN 50178+EN 62109-1+VDE0126-1-12
Grid Detection - DIN VDE 1026 UL1741
Certificate - CE
Inverter Size - 21 * 16.5 * 5.3cm / 8.26 * 6.46 * 2.08in
Inverter Weight - 1.3kg / 2.86Lb
Package Size - 31 * 21 * 11.5cm / 12.20 * 8.26 * 4.52in
Package Weight - 1.75kg / 3.85Lb

Packing List:
1 * Micro inverter
1 * AC cord
1 * User manual
