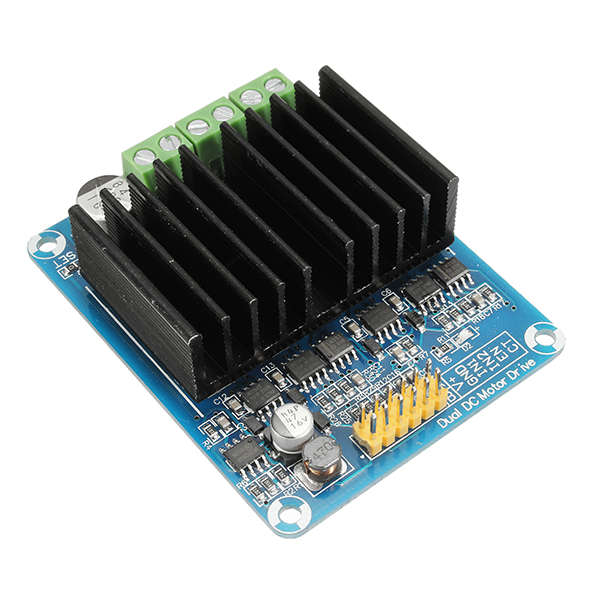

50A Dual-Channel H Bridge Motor Driver Module Robot Chassis Servo

20 available / new

R825.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641111280

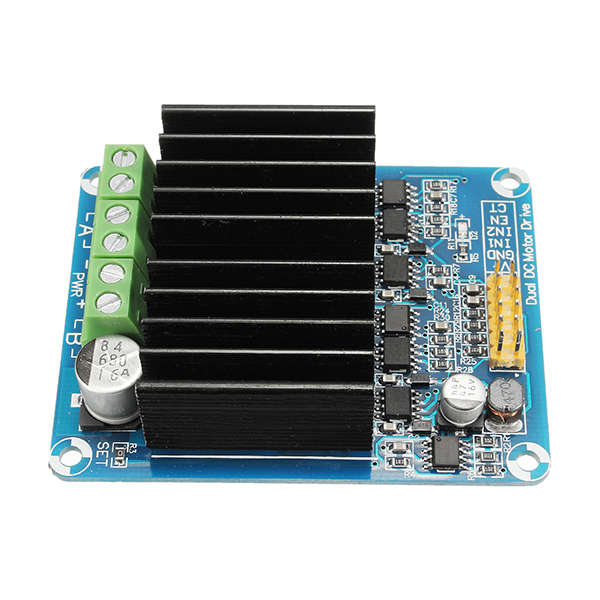

Description:

This drive module performs much better than MC33886 or L298 motor drive module. T
his drive module performs very well in terms of motor start speed and power efficiency. It can withstand high current overload.
This drive has a brake function, which can quickly stop the motor. And the operation is very easy. Its performance is better than drive module of MC33886 chips.
The drive module contains a full-bridge driver chip and MOSFET of low internal resistance.
The full-bridge driver IC minimizes the switching loss of MOSFET and improves power efficiency.
MOSFET driver chip has the hardware brake functions and power feedback function.
MOSFET is the current impact-resistant type, with an internal resistance of 0.003 Euro.
MOSFET channel can be opened quickly to improve the motor's speed curvature, and also brake the motor quickly.
This function can make the car start or stop quickly.
The drive module weighs 15 grams. It can work under the PWM duty cycle of 0% -98%, which a common drive module can not.
Size:6cm x 4.5cm x 1.9cm - 2.36inch x 1.77inch x 0.75inch.

Performance parameters:

limited Rated voltage: 5V-12V.
Rated current: 50A.
Peak Current: 100A.
Dimensions: length 6.05cm, Width 4.55cm.
Installation: screw connection. Mounting hole spacing: 5.5cm / 4cm (length-wise/width-wise).

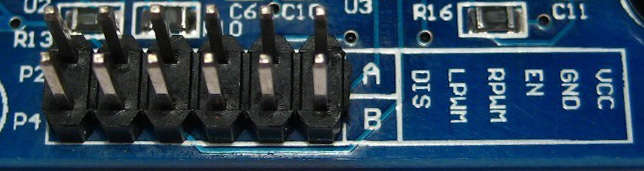

Control Definition:

Rotate forward: EN = 1, RPWM = PWM, LPWM = 1, DIS = vacant
Rotate reverse: EN = 1, RPWM = 1, LPWM = PWM, DIS = vacant
Parking and brake: EN = 1, RPWM = 1, LPWM = 1, DIS = vacant
Parking but not brake: EN = 0, RPWM = 1, LPWM = 1, DIS = vacant
Prohibit the use: EN = X, RPWM = X, LPWM = X, DIS = 1

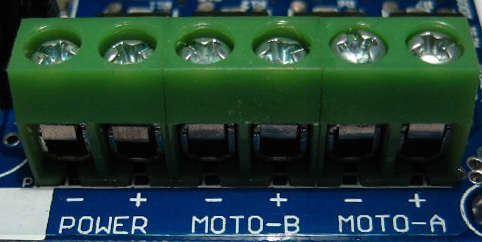

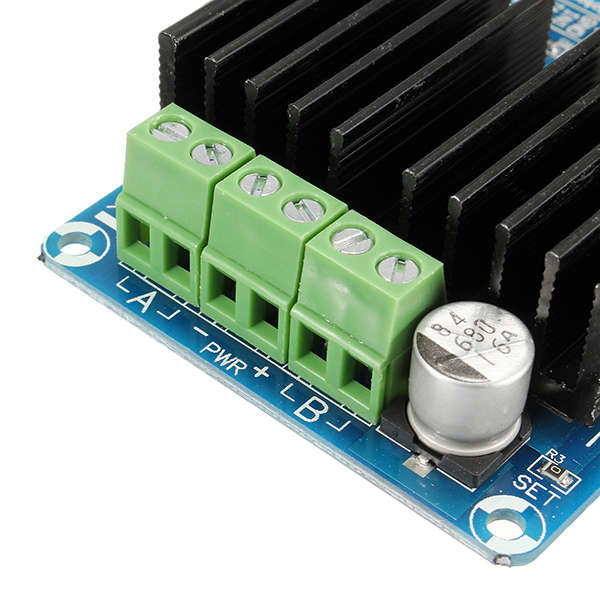

Motor and power wiring:

Package included:

1 x50A motor drive module
