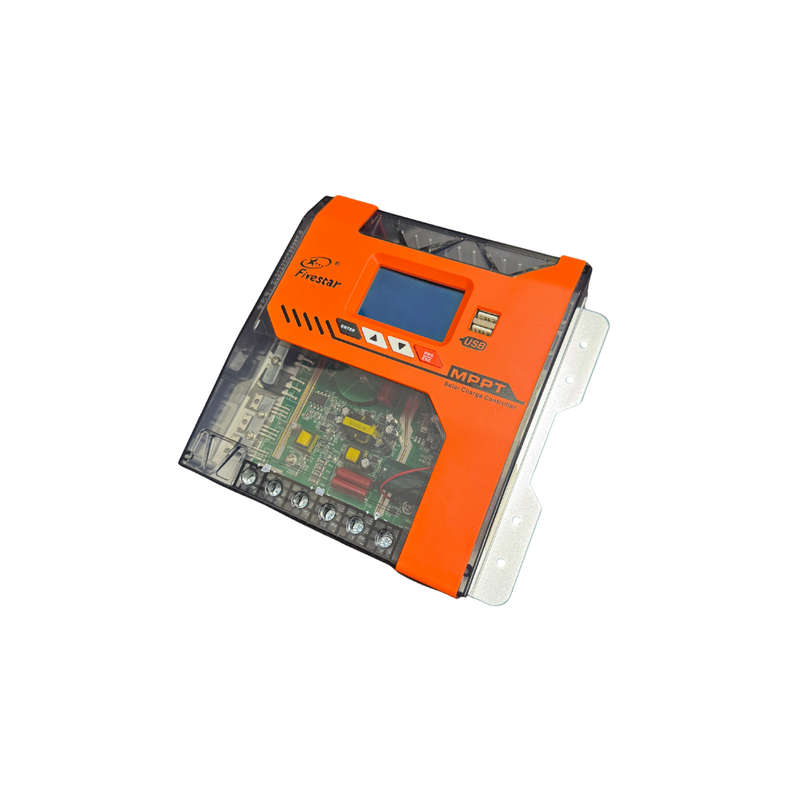

50A MPPT Solar Charge Controller - Fivestar FSM-50

Description:

The Fivestar FSM-50A MPPT Solar Charge Controller is a high-performance energy management solution for multi-voltage battery systems. Built for both small and large-scale solar setups, this controller features 100% MPPT tracking and an intelligent DSP core for stable, efficient energy conversion across 12V, 24V, 36V, and 48V battery banks.

Key Features:

-Auto Voltage Detection: Seamlessly detects and adjusts for 12V, 24V, 36V, and 48V battery systems.

-Advanced MPPT Algorithm: Delivers up to 99% tracking efficiency and 98% system conversion, capturing maximum solar output.

-Optimized 3-Stage Charging: Includes bulk, constant, and float charging stages to enhance battery health and long-term reliability.

-Full System Feedback: Large LCD screen displays real-time system metrics including PV voltage/current, battery state, and charging activity.

-Certified Safety: CE and RoHS compliant for peace of mind in professional installations.

Technical Specifications:

-Brand: Fivestar

-Model: FSM-OP50-50A

-Battery Voltage: 12V/24V/36V/48V (auto-switching)

-Maximum PV Input Voltage: 180V

-Maximum PV Input Power:

-600W (12V)

-1200W (24V)

-1800W (36V)

-2400W (48V)

Controller Type: MPPT with Digital Signal Processor (DSP)

Charging Phases: 3-stage charging (Fast, Constant, Float)

Display: LCD with live data feedback

Package Includes:

-1 × Fivestar FSM-50A MPPT Charge Controller

-1 × Instruction Manual

Warranty & Installation Guidelines:

Backed by a 1-year manufacturer warranty. For warranty validation and optimal performance, ensure installation is performed by a qualified wireman or electrician. The installation must conform to SANS 10142 standards and must be accompanied by a valid COC (Certificate of Compliance).
