Description
APPLICATION OF DP SERIES PUMP
- Agriculture/Yacht / RV/Caravan pressurized water system
- Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
- Cleaning machine, Humidifier, Water purification, Medical apparatus
- Food beverage filling & liquid transfer
- Any other pressurization system
FEATURES OF DP SERIES WATER PUMP
- Long life, no leak, quiet operation
- Positive displacement pump
- Can run dry
- Industry-standard mount pattern
- Built thermal protector
- Self-priming, fully automatic, easy installation
- Special valve for liquid input and output
- 12v,24vDC and 120v,230v AC motors standard(consult factory for other voltages
- Numerous fittings options for greater mounting flexibility
- High-pressure diaphragm pump;
- Small size, Lightweight and Stable performance;
- special EPDM valve for liquid input and output;
- Antivibration pad, easy installation with stable function;
- Self-priming, Automatic Pressure Switch;
- Automatic Pressure Protection;
- Low Noise, with excellent resistant to chemical corrosion

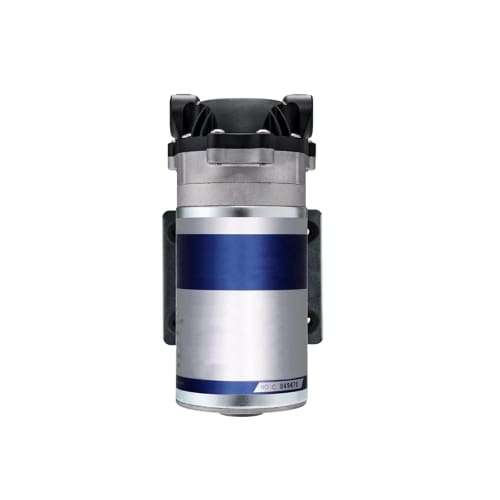

SPECIFICATION OF DP-80 DIAPHRAGM PUMP
- Pump design: 3 chamber diaphragm
- Max. flow: 1.14GPM(5.1L/min)
- Port size: 3/8�(9.5mm)Hose Barb
- Pressure max: 170psi
- Diaphragm materials: Santoprene
- Check valve made: EPDM or Viton
- Voltage:12vdc, 24v dc,120v ac, 220v ac, 230v ac
- Liquid temp: 140 °F(60°C) Maximum
- Body material: Cast Iron
- Duty cycle: Intermittent
HOW A DIAPHRAGM PUMP WORKS
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers.
Each valve chamber has a diaphragm behind it in the lower pump housing.
As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet.
The volume of flow is determined by several factors including the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
FUNCTIONS OF DIAPHRAGM WATER PUMP
- High flow rate and low-pressure requirements.
- Automatic electric water pump, working rate 1.8-2.5meters, max flow rate more than 5 meters.
- Water purification, filter machine, chemical metering, and fluid supply.
- Food, Beverage filling, and transfer.
- Controlled by the pressure switch.
- WDA47
