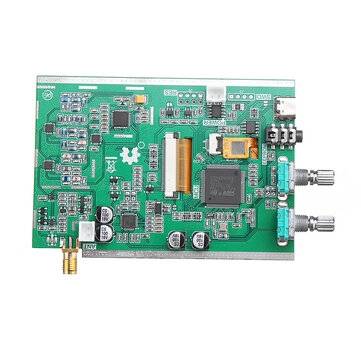

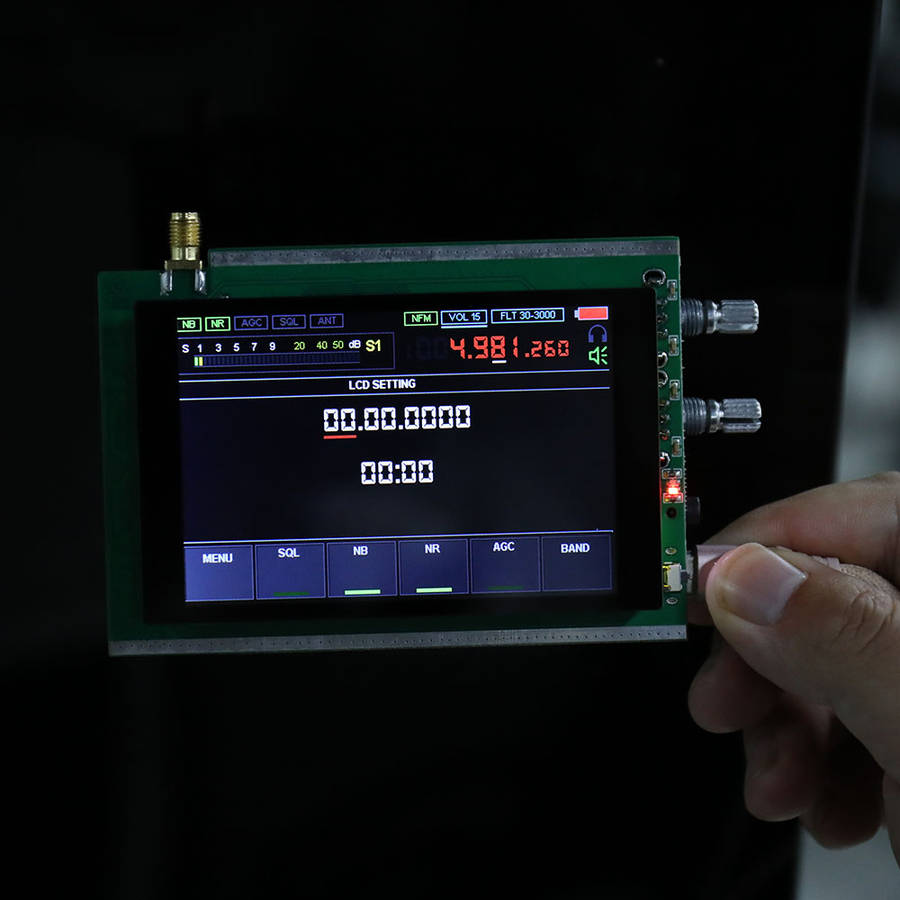

Features: - Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer. - Chip: use cheap but fully functional chip msi001, the powerful stm32h743 with clock frequency of 480mhz is applied. - SDR: the radio is built on the principle of SDR - the function is determined by the loaded software. - LCD display: with 3.5 inch touch LCD display, 160 kHz span, expandable, backlight control, SMA antenna socket. - Control: 2 encoders with buttons and touch screen. - Additional board: in order to improve HF reception on the telescope antenna, an additional board with a source follower is developed, the board will be built into the standard receiver design. - Use: connecting to the computer via USB, you can transfer cat, IQ and audio. - Dynamic blocking range: is about 85dB due to the characteristics of msi001 chip used. - Consumption: 300mA when listening to headphones.
Specification: Material: PCB Color: as shown Size(approx): 100X70mm/3.94*2.76inch Frequency range: 50KHz to 200MHz Power: USB(Type C) power, or install battery , ( battery not included) All types of analog modulation: AM, SSB, NFM, WFM Sensitivity: 0.3 v = 10dB at S / w up to 250MHz; no measurement was carried out due to lack of measuring equipment
Package Included: 1 x 50K-200MHz Malachite DSP SDR Radio Malahit DSP SDR HAM Receiver
