Specification:

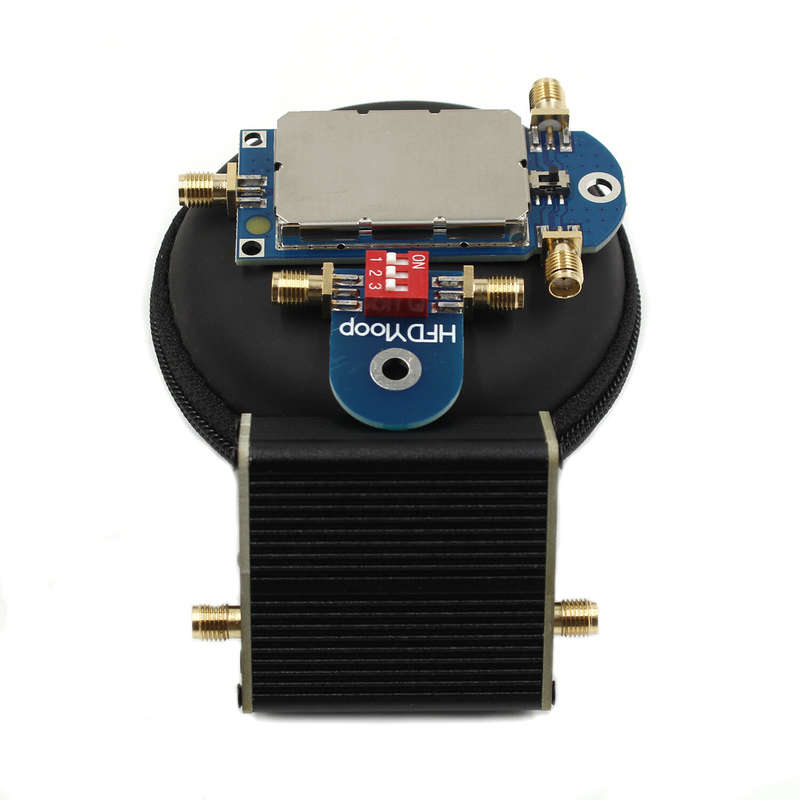

Product Name: 50K-500MHz Wideband Active Small Magnetic Loop Antenna
Frequency Range: 50kHz to 500MHz
Gain: 17dB at 10MHz
Output Noise: -125dBm at 10MHz, BW=100Hz
P1dB (1dB Compression Point): +15.5dBm@10MHz
OIP3 (Third Order Intercept Point): +38dBm@10MHz
Power Supply Voltage: 9V to 12V
Power Supply Current: 130mA to 150mA
Antenna Interface: SMA(M)
Output Interface: SMA(F)
Coaxial Cable Type: RG402
Coaxial Cable Loss: 0.145dB/m
Antenna Diameter: 60cm
Power size: 5.5-2.1mm
Features:
1. Wide Frequency Range: This small magnetic loop antenna covers a broad frequency range from 50kHz to 500MHz, making it suitable for various radio receivers, SDRs, and radios.
2. High Gain: With a gain of 17dB at 10MHz, it provides significant signal amplification, enh
