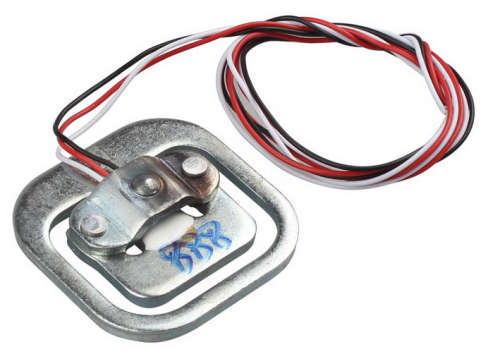

The internal 1000 ohm half bridge strain gauge, the measuring range is 50kg weighing sensor, half bridge structure.
Size: 34mm x 34mm
This sensor is a group of half bridge strain gauge, using the method can have the following three:
1, using a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50kg. External resistance requirements are higher.
2, the use of two sensors to form a full bridge measurement, measuring the range of two sensors and: 50kgx2=100kg
3, the use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50kgx4=200kg
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
