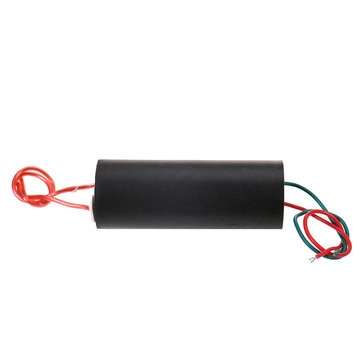

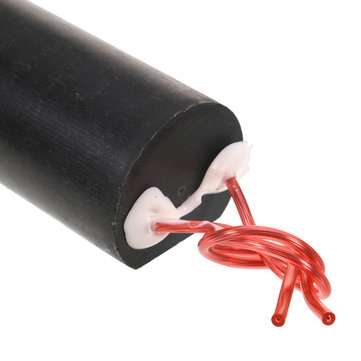

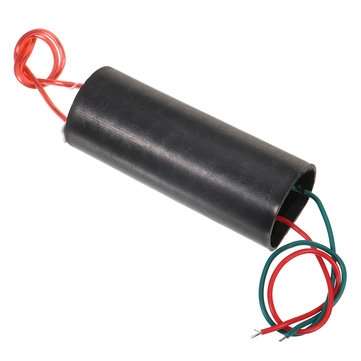

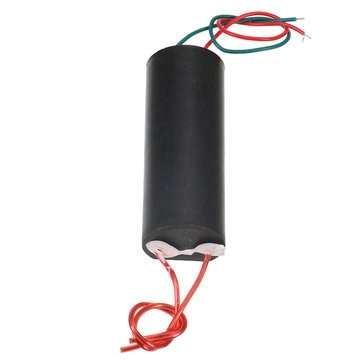

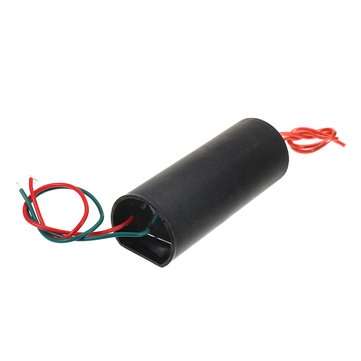

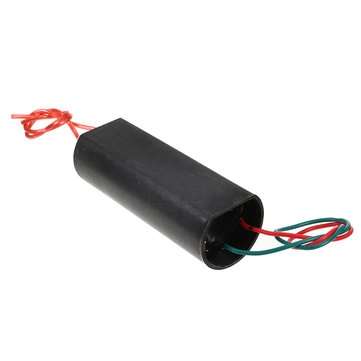

50KV High Voltage Pulse Arc Generator Inverter

Specifications: Input voltage: 3.7V-6V Input current: 1A-3A High pressure type: pulsed DC type Output voltage: about DC50KV (Please pay attention to safety when used) High-voltage two-pole discharge distance: 10mm-20mm Output high-voltage line length: 100mm Input power cord length: 100mm (red line is positive) Dimension: 50mm x 21mm (Length x Diameter) Precautions for using the module: 1. The internal should not heat, so can not work for a long time 2. High voltage modules should be avoided. Using Method: Red and green wire are input port, red wire is positive, green wire is negatice, other two high voltage wire are output port, fixing high voltage wire port for proper distance, and input port connects with battery can achieve high voltage arc Input Power: Can use single 3.7V lithium battery or 2S parallel connection,auch as 18650 battery etc Package included: 1 x High Voltage Pulse Arc Generator









, , ,
