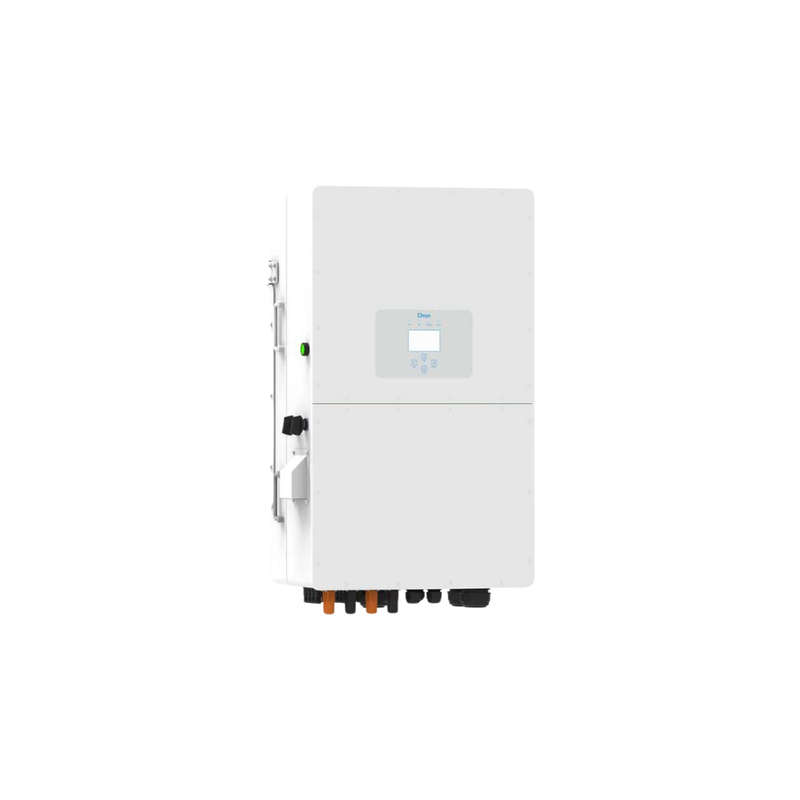

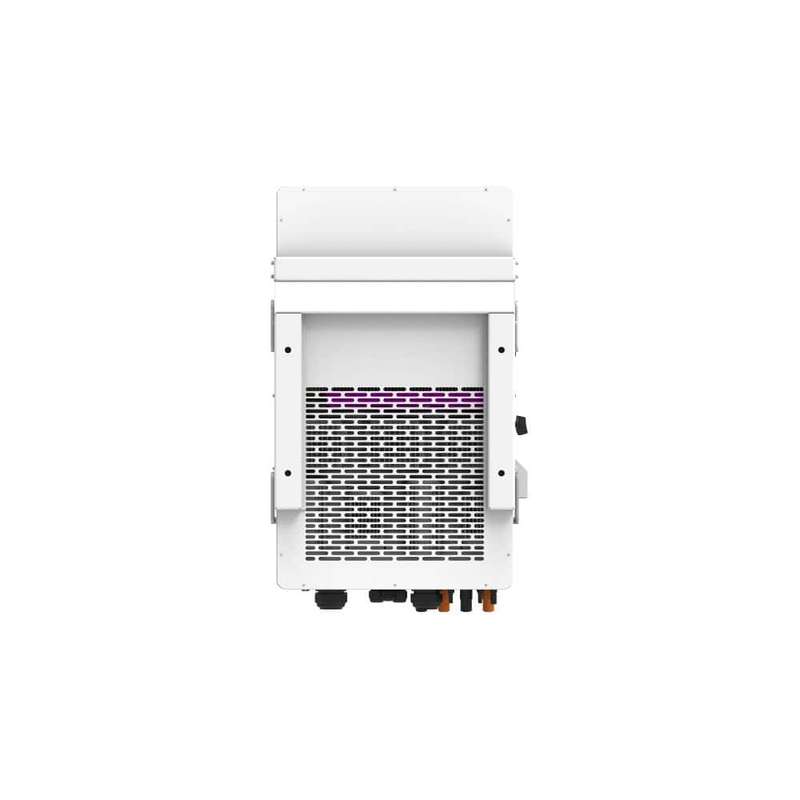

50KW Deye 3 Phase High Voltage Hybrid Inverter
ONLINE DEAL ONLY, CAN BE ORDERED FOR IN STORE COLLECTION
Description:
The Deye 3-Phase Hybrid Inverter Series (SUN-50K-SG01HP3-EU-BM4) offers high-efficiency power management, seamless scalability, and full energy independence for large-scale residential, commercial, or industrial applications. Compatible with high-voltage lithium battery banks, this inverter series is designed to meet the demands of both grid-tied and off-grid systems, supporting up to 10 units in parallel and offering 100% unbalanced output per phase.
DATA SHEET
Key Features:
Advanced Energy Management
-Supports charging/discharging up to 100A, with dual 50A channels for load balancing
-Configurable 6 time periods for charging and discharging for smart energy scheduling
-Compatible with diesel generators for off-grid energy storage
Hybrid & AC Coupling Flexibility
-Supports solar, grid, generator, and battery integration
-AC-coupling ready ideal for retrofitting into existing solar systems
-Parallel support for up to 10 units for larger installations
Battery and PV Compatibility
-Works with high-voltage lithium-ion batteries (160V800V)
-Up to 2 battery inputs per inverter
-PV Input Power Range:
-From 38,870W (29.9kW model) up to 65,000W (50kW model)-Max PV Input Voltage: 1000V | MPPT Range: 150850V
-3 or 4 MPPT trackers, model dependent
Performance and Protection
-Max Efficiency: 97.6% | MPPT Tracking Efficiency: >99%
-Comprehensive protection features:
-Reverse polarity
-Overvoltage and short-circuit protection
-Surge protection (Type II DC & AC)
-Ground fault, islanding, and thermal protection
Smart Monitoring & Connectivity
-Communication interfaces: RS485, RS232, CAN
-Optional monitoring: WiFi, Bluetooth, 4G, LAN, GPRS
-Real-time data viewing and system updates via app or web
Built to Last
-IP65 rated for indoor/outdoor use
-Intelligent air cooling
-Operates from -40°C to +60°C (derating above 45°C)
-Max altitude: 2000m
-Noise level: 65 dB
Dimensions & Weight
-Size: 527 x 894 x 294 mm
-Weight: 80 kg
Benefits of the Deye 3-Phase HV Inverter Series:
-Massive Power Scalability
Supports up to 500kW in parallel ideal for industrial or large-scale residential solar systems.
-Unmatched System Flexibility
Each phase supports 100% unbalanced output, ensuring consistent supply across varied loads.
-Effortless Retrofit Integration
Built-in AC-coupling allows upgrades to existing PV systems without major changes.
-Smart Energy Optimization
Time-based charge/discharge settings maximize efficiency and reduce reliance on the grid.
-Commercial-Grade Reliability
Built for tough environments with global certifications and robust protection features.
Installation & Warranty
-Standard 5-Year Warranty, extendable to 10 years depending on installation site and registration
-Must be installed by a qualified wireman or master electrician, registered with the Department of Labour
-A valid COC (Certificate of Compliance) is required
-Installation must fully comply with SANS 10142 regulations
-Non-compliant installations may void the warranty
