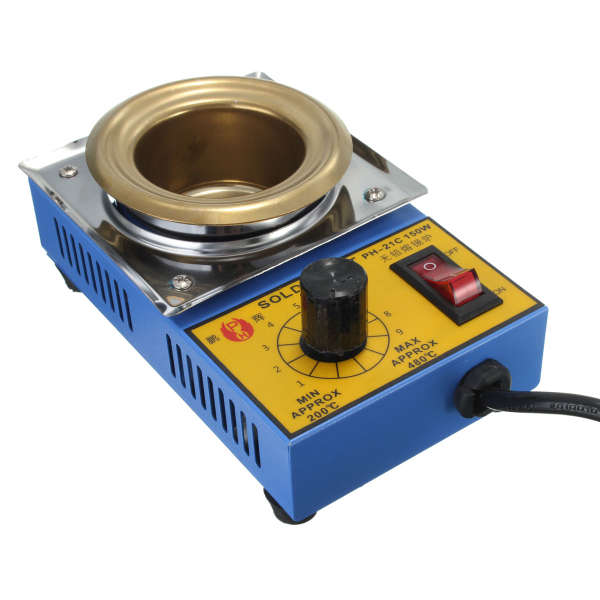

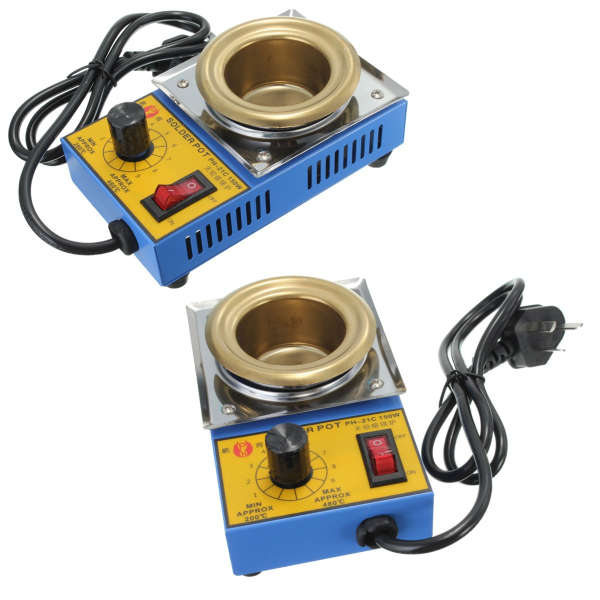

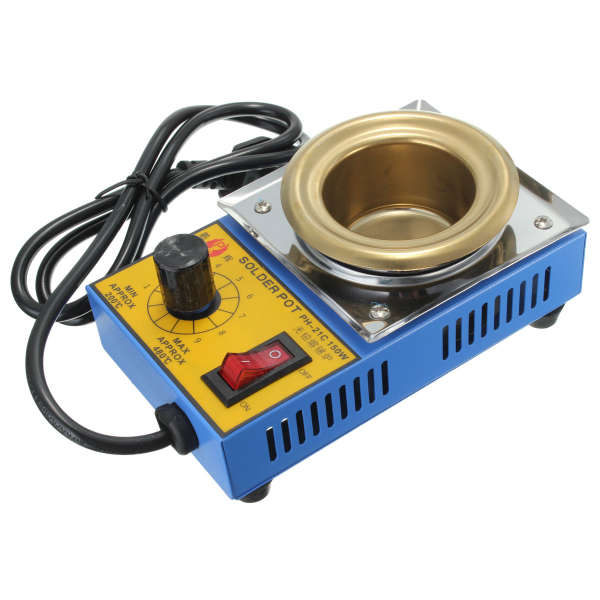

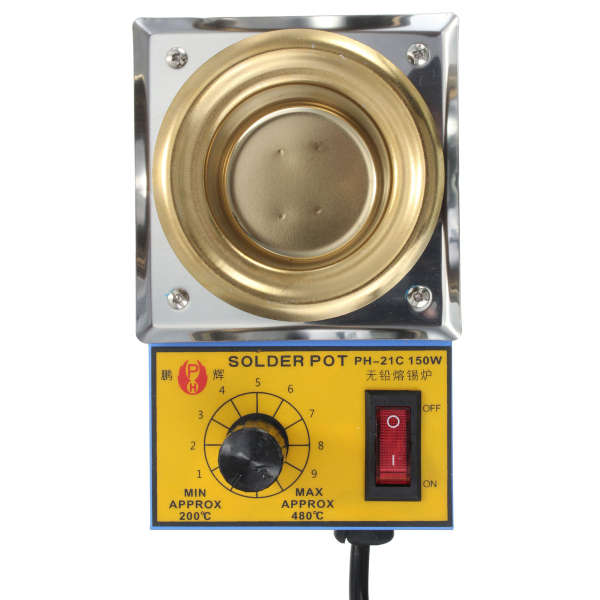

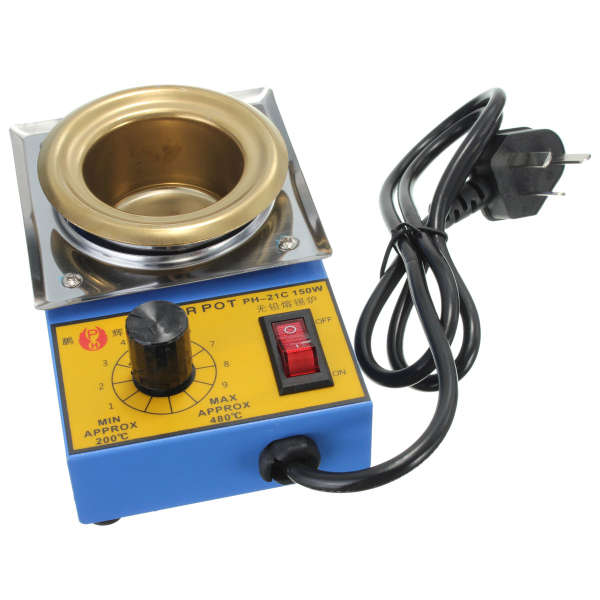

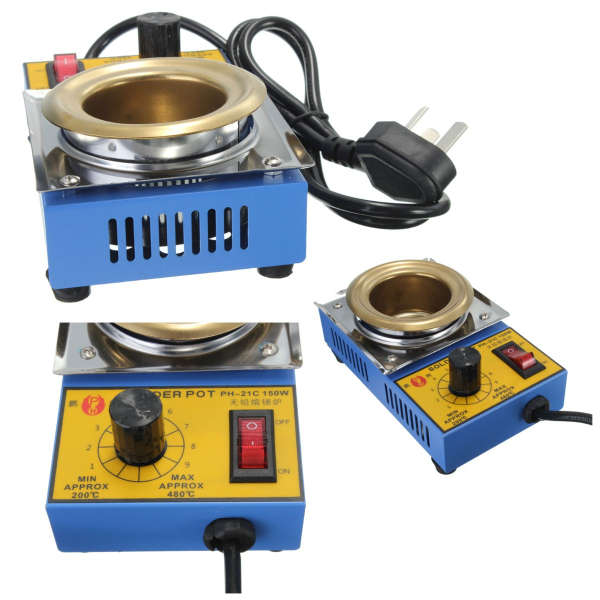

50mm 220V 150W Solder Pot Soldering Desoldering Bath Tin Mealting Plate

Specification:
Model: 21C
Power:150W
Temperature range :2 00-480?ﾣC
Melted solder capacity: 500g
Tin pot diameter(mm): 50mm
Material: Stainless steel
Input voltage: AC220v 50Hz

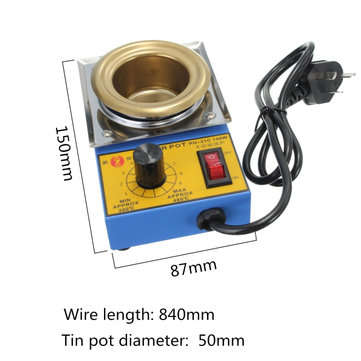

Product size: length:150mm
width:87mm
Wire length:840mm

Feature:
1 Electronic temperature regulating plates, some of the imported components production.
2 Tin furnace is made of imported stainless steel plate, according to regulate the temperature, automatic constant temperature.
3 Easy to use, easy maintenance, good heat effect, melting tin fast.
4 The titanium alloy solder bath and other heavy duty compents offer greater durability.
5 High power heater,quickly melten the lead-free tin bar.

Welding method:
1 Firstly,you should put the tin bar into the furnace to melt (melting point of Pb SN is about 250 DEG C, lead-free solder melting point of 300 DEG C or so, slug melting 328 DEG C or so)
2 Secondly,put the flux in another container (the welding foot to touch);
3 Thirdly,when you are welding,you should put the welding feet on the flux to dip, then put into the dip soldering tin stove.
4 Lastly,after the temperature of welding becomes cooling,it means the welding is finish.

Package Included:
1 pc lead-free solder pot
