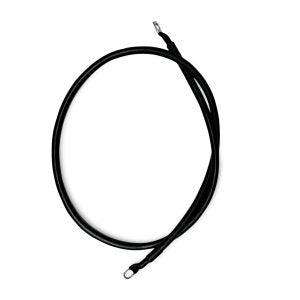

50mm2 1/0 AWG Battery Cable 70CM Black With 10mm Ring Lugs Double Sided

50mm2 1/0 AWG Battery Cable 70CM Black With 10mm Ring Lugs Double Sided

DC Battery Cables for battery to battery or battery to inverter connections. Hydraulically crimped and insulated ring terminal lugs to minimise resistance and reduce the risk of a fire hazard.
These cables have pure copper cores compared to aluminium cores that do not have an efficient CCC (Current Carrying Capacity).

While aluminium core cables are more popular on solar panel connections due to safety reasons and allow the cable to burn off internally and prevent fires, copper cables are in favor of battery connections to minimize voltage loss and current restrictions.

Therefore it is critically important to have battery cables professionally crimped and adequately sized for the application.Colour : BlackOne End Lug : 10mm Ring LugsOther End Lug : Terminated Both EndsStrand Diameter : 0.3mmCable Size AWG : 1/0 AWGNominal Size MM2 : 50mm2Nominal External Diamter : 14mmCable Type : DC Battery CableMax Continious Current : 255 AmpsMax Starting Current : 465 AmpsInsulation/Wall Thickness : 2.2mmMax Resistance Mohm/km : 0.386Conductor Type : Flexible annealded copper SABS 1411 Part 1 Class 5 resistanceOperating Temperature : up to 70 CStock Location : In Stock at Livestainable
