51 Single Chip Microcomputer Minimum System Board Learning Board Experiment... (TYPE: FINISHEDBOARD)

20 available / new

R428.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3501

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641111731

SELECTED OPTION:
TYPE: FINISHEDBOARD

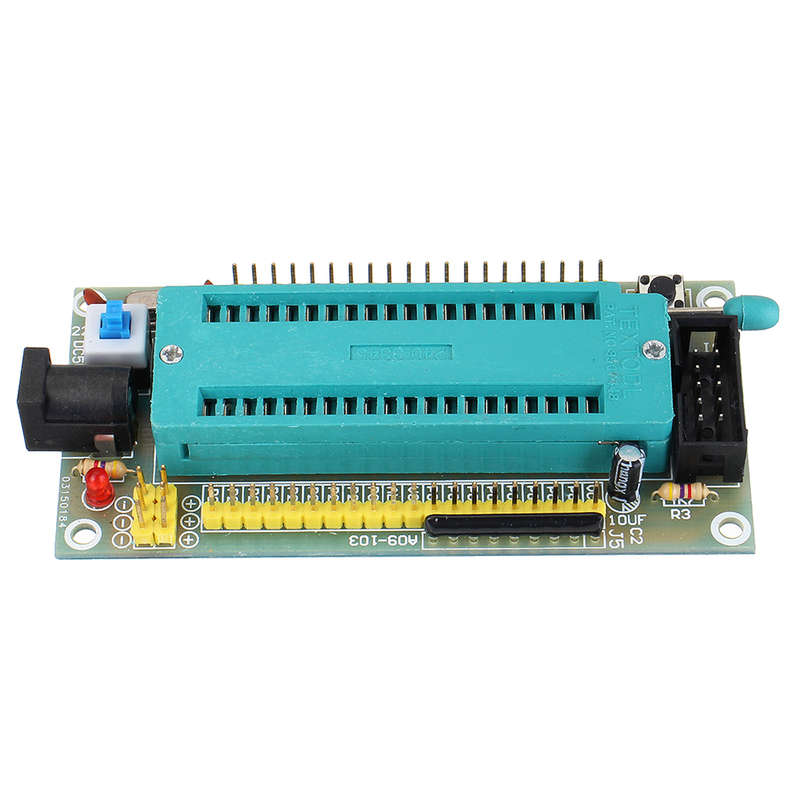

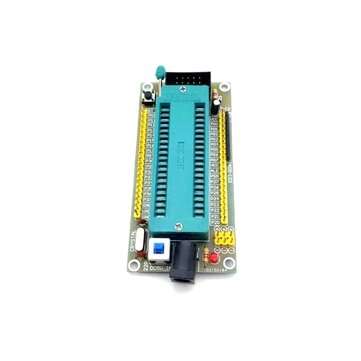

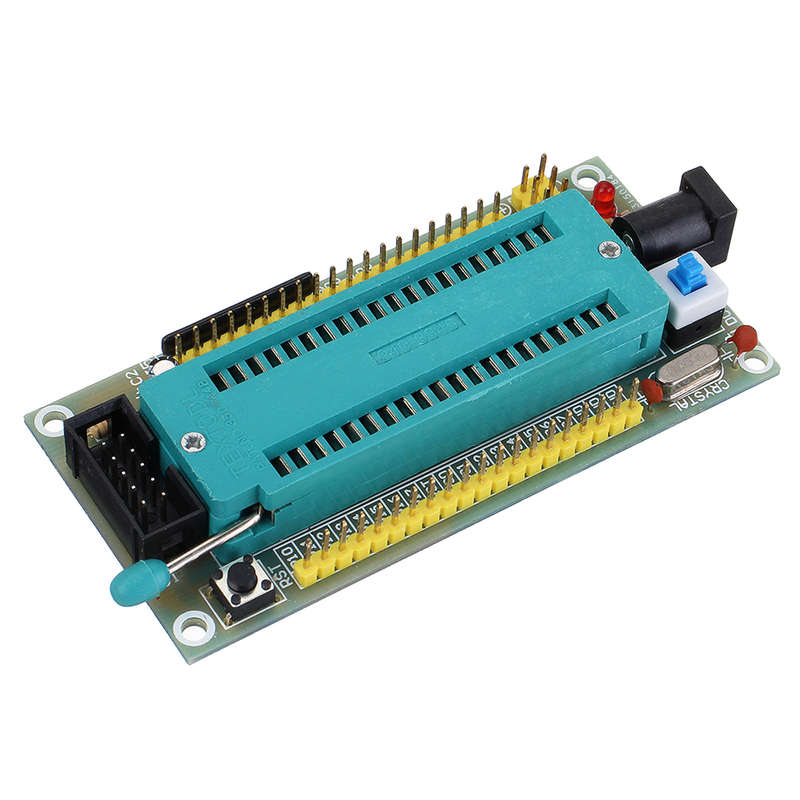

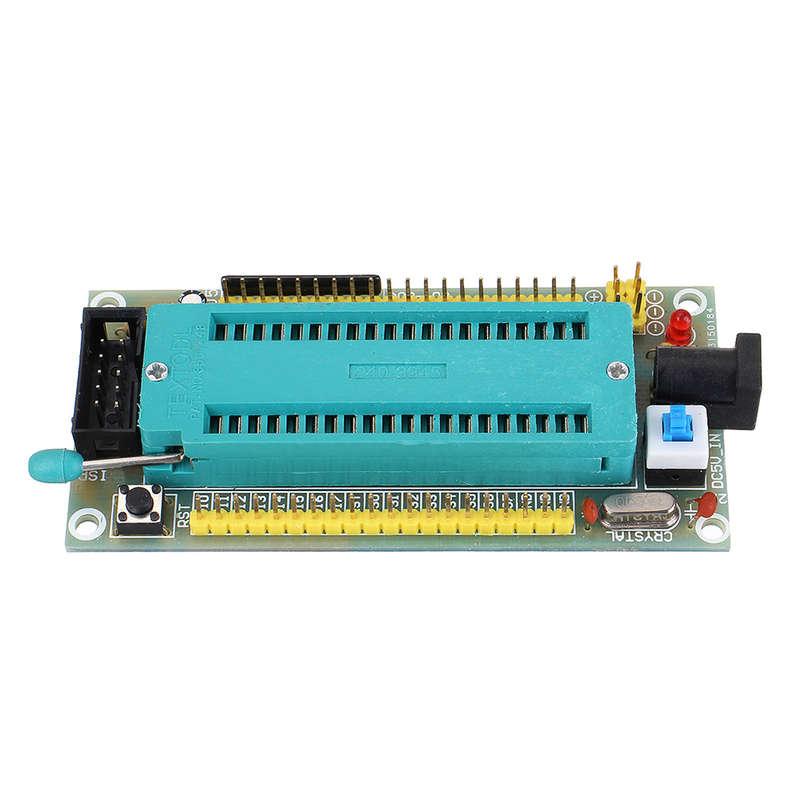

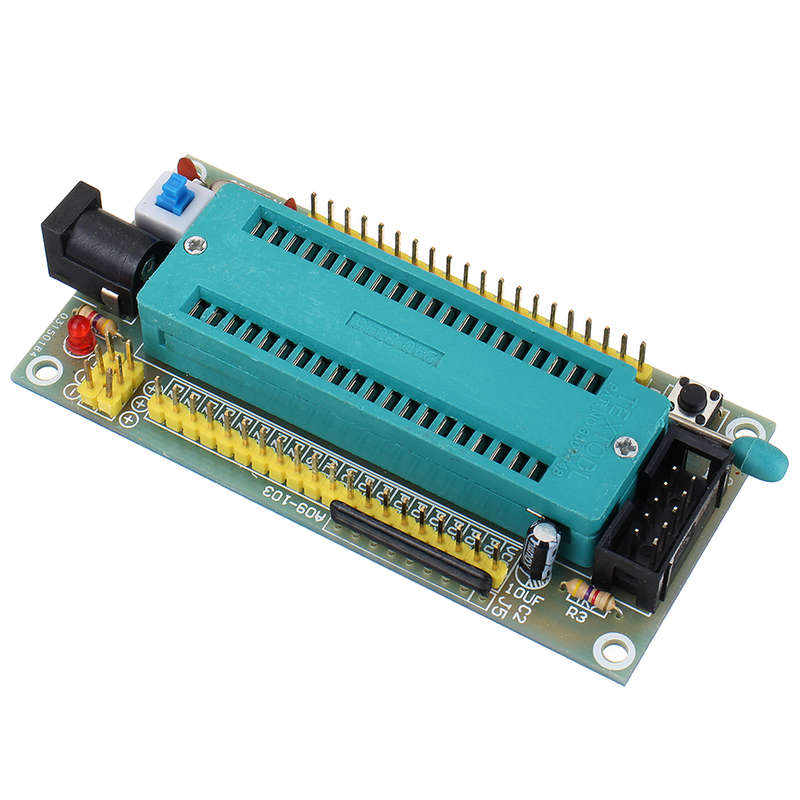

Features:

1. Classic 51 minimum system, eliminating the trouble of wiring and welding; 2. All 40 pins are led out to facilitate expansion.
3. A 10K pull-up resistor is added to port P0, so users can operate port P0 more freely;
4. The ISP download port is led out independently to facilitate the download of AT89S5X series programs;
5. Support chips: STC89C5X, AT89S5X, STC12C5A60S2 STC11/10x series and chip pin compatible chips;
6. With a self-locking switch, it can flexibly control the on and off of the DC005 power supply of the system, which is convenient for users to carry out various tests (there is no on and off function for the power input of the pin header or DC3-10 seat);
7. Flexible power supply: It can be powered by ISP download port, can be powered by standard DC-005 interface, or can be powered by pin header.

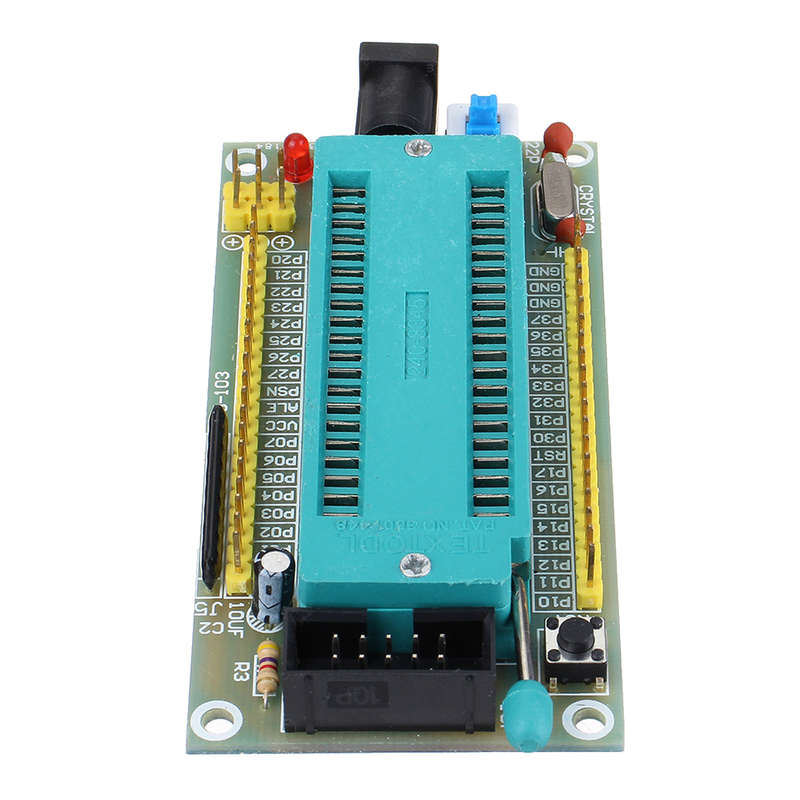

8. Built-in parts design, save space, pin numbers are marked on the board, convenient for wiring.
Parameter:
1. Power supply voltage: DC005 is powered on the positive and negative pins or on the pin header, the power supply voltage is the same as the working voltage of the chip. 2. Crystal oscillator: 12M

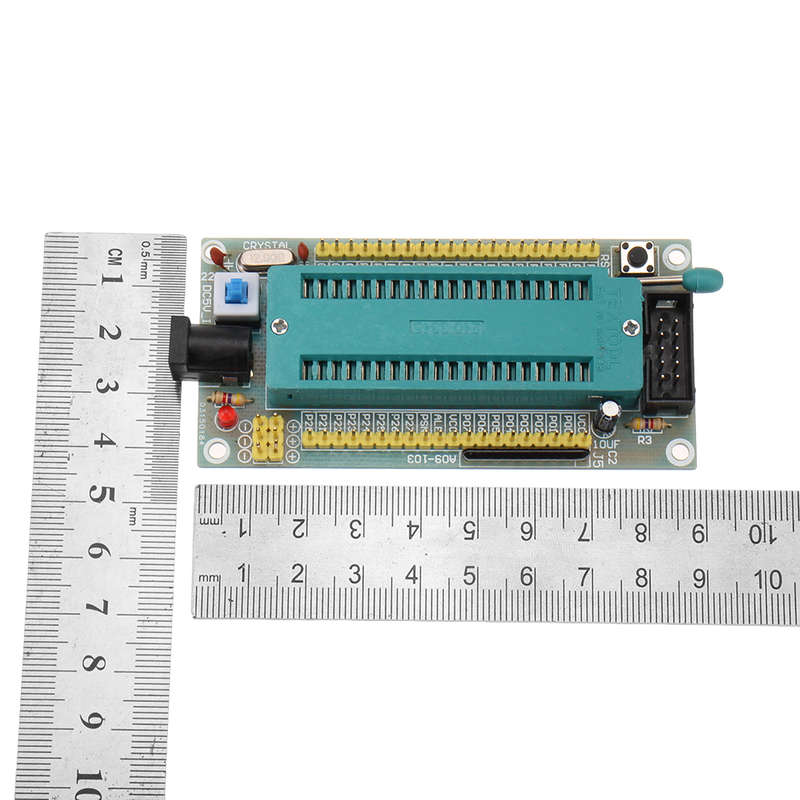

3. PCB board size: 8.9cm*4.3cm
Package included:
1 x PCB board
