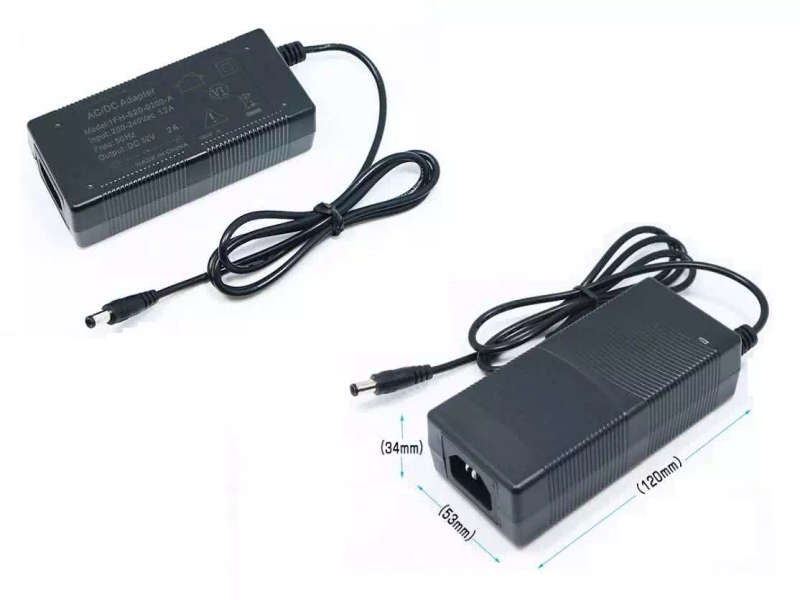

This 52V, 1.2A power supply is mostly used with Power Over Network Switches & POE Injectors as below:
Input range : 230 ~ 250 VAC
Input frequency : 47 ~ 63 Hz
Input current : 0.6A Max
Leakage current : 0.5 mA at 50/60 Hz 250VAC input
Rated output power : 60 Watts
DC Connector : 5.5mm OD & 2.1mm ID
Output voltage : 52V± 1%
Output current : 1.2 A
Output load efficiency 80% at 100VAC full load; 80% at 250VAC full load
Max power : 60 Watts for convection
OL protection 96% to 104% above peak rating
Ripple & noise 200mV at rated load
Short current 100mA at 250 VAC rated load
