52Pi Vibration Sensor Module Ceramic Piezo Analog Signal for Raspberry Pi / MCU STM32 / ESP32

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} Description

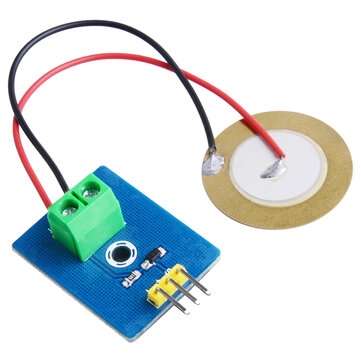

It is Ceramic Piezo Vibration Piece Sensor, and it is high quality vibration sensor.
It is an analog sensor and need ADC convertor if it works with Raspberry Pi.

When the piezoelectric ceramic shocking will generate an electrical signal, Controller analog port can be perceived slight vibration signals, also can be realized with vibration interactions related works, such as electronic drums.

Features

• Easy to use
• Compatible with most MCU such as STM32, ESP32 and so on
• Sensitive to vibration

Specifications

• Output: Analog Sensor
• Working Voltage: 3.3V or 5V
• Weight¯10g
• Working Current: Less than 1mA
• Operating Temperature Range: -10 Degrees Celsius ~ + 70 Degrees Celsius
• Interface Type: Analog Output
• Item Size: 30mm x 23mm

Pins Definitions

• S: Signal Output
• +: Power Supply (VCC)
• -: Ground (GND)
• Input: Positive of the piezoelectric ceramic
• GND: Negative of the piezoelectric ceramic

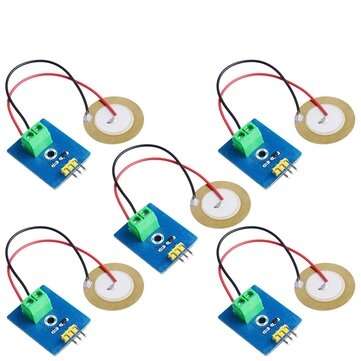

Package Includes
