540mm LED Backlight Strip Kit for 22 Inch Update CCFL LCD Screen to LED Monitor Module 2 LED Strips

Product Specification:

- 540mm LED Backlight Strip Kit For 22 inch inch Update CCFL LCD Sn To LED Monitor
- LED Strip Size: 540mm; Driver board size: 7x2cm; Input: DC 9-30V;
- Colour: blue white
- Material: metal
- The product of the original display-specific lights, high brightness, can not look directly
- LED particles close, high-density arrangement bright LED SMD imports
- Long life, is a display design, the life of 100,000 hours.
- Easy to install, use double-sided tape can be attached to the original LCD display tank, or posted elsewhere

Brief Installation Instructions:

If your monitor is a high pressure plate, this pressure plate into a direct replacement driver board like if your monitor is one of the high-voltage power supply board, then: one version of the high-pressure electricity, find 12V (capacitance), then pull swap power supply with a multimeter to find and 12V (capacitance) is connected to the negative originals off, boost board then three lines 12V, ON, GND, 12V 12V positive electrode plate with high pressure booster is integrally connected to the board, GND with negative connected, ON even ON / OFF. it is simply the original high-voltage power supply is disconnected to replace the booster plate at the front end of the original pressure to take power.

Normal Method:

open to protect the metal frame with a simple conversion step
Remove the LCD glass panel (panel carefully on soft cable, such as careless easy to qualify and broadband)
Remove the plastic inner frame and lighthouse (Be careful not to get dirty fouling within the backlight assembly)
Remove the inner lamp lighthouse
LED light bar affixed inside the lighthouse
then restore the original removal steps carefully
Replace the glass panels and metal frame test
installed lights

Package Included:

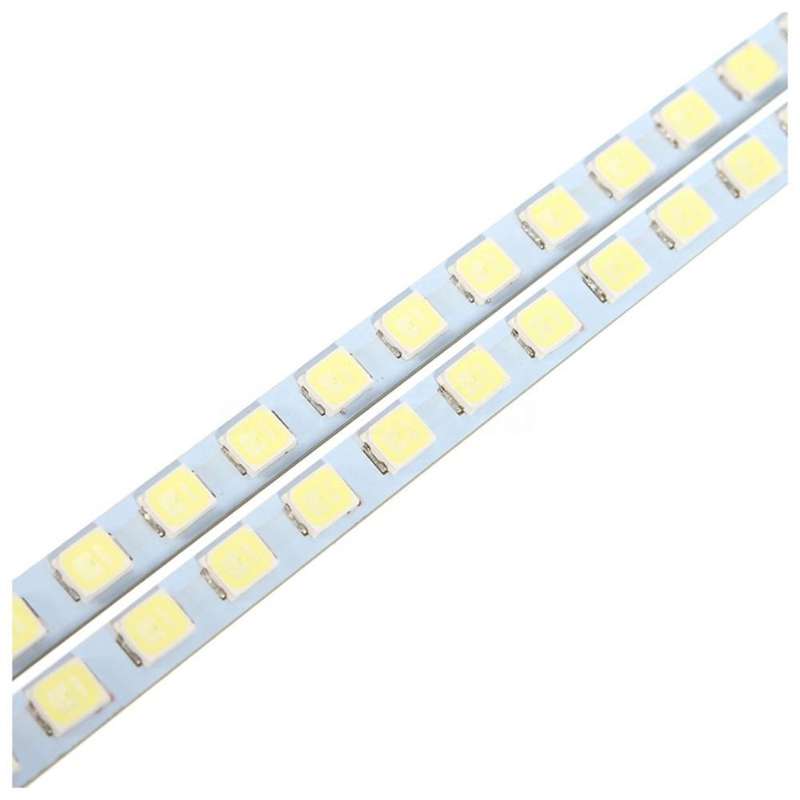

2 x LED Strips

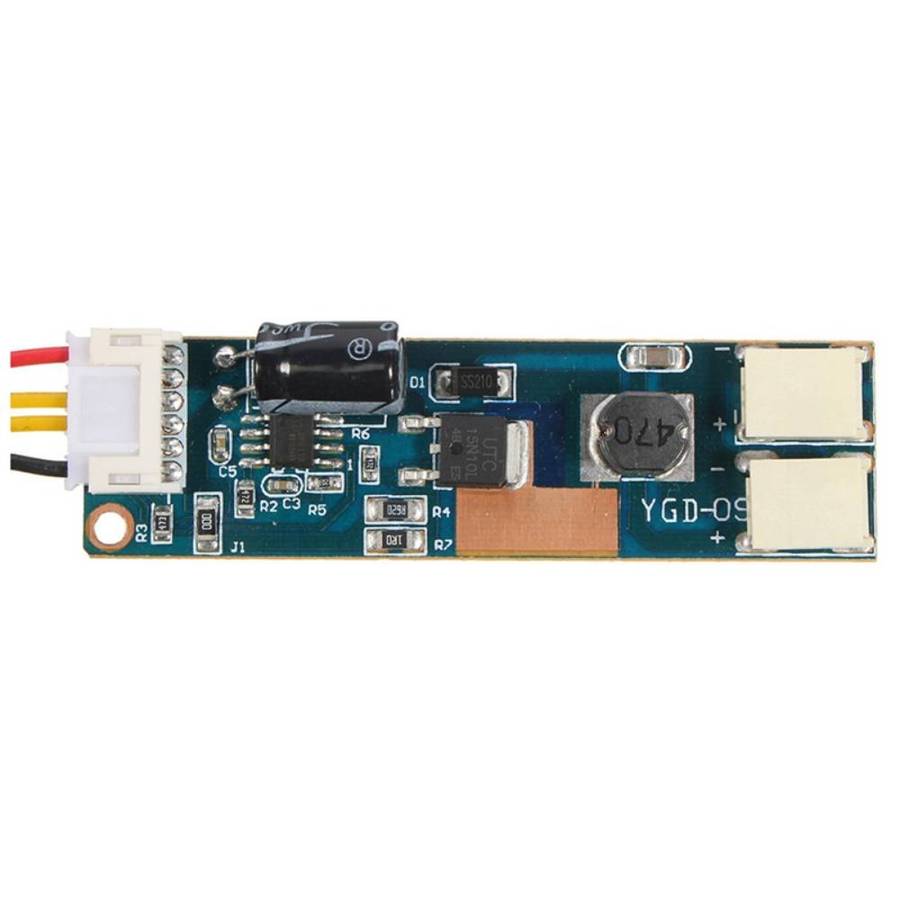

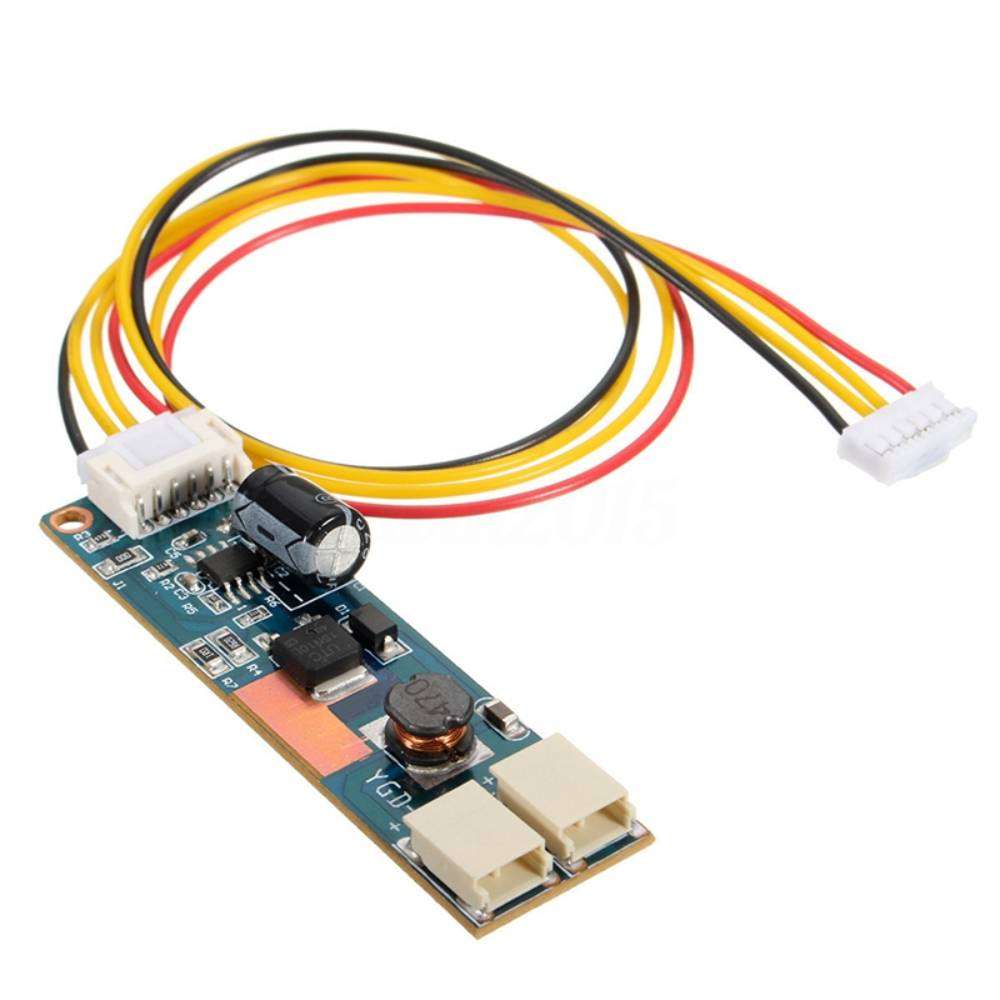

1 x Driver Board
1 x Cable
