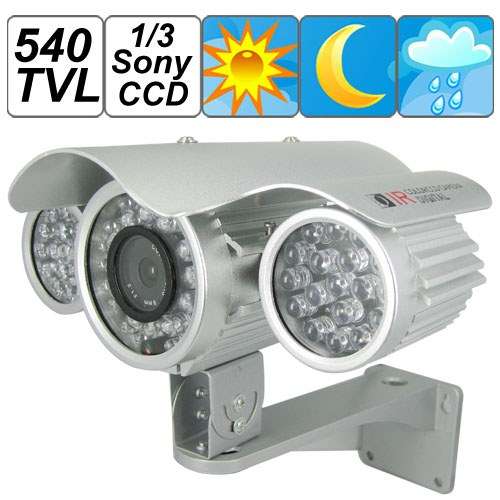

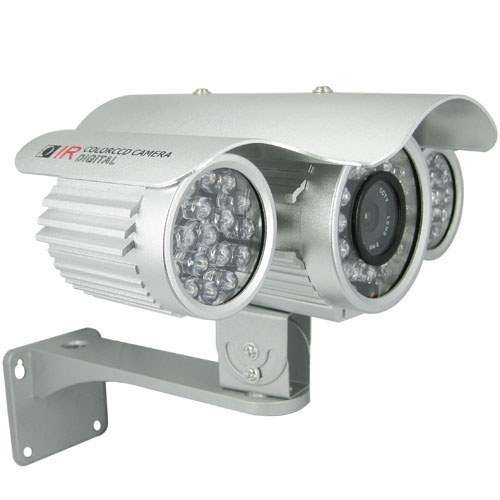

540TVL 1/3 Sony CCD 8mm Lens Waterproof Camera Support 80m IR View Distance

Specifications:

Function: Ultra-Long IR view distance weatherproof CCTV Surveillance camera
Adopting Three light tubes side by side design, generous and beautiful, no dark corner in night surveillance.
Material: Aluminum Alloy
Image Sensor: 1/3 inch color sony CCD sensor
Horizontal Resolution: 540 TV lines

IR Viewing Distance: 80 meters in the nighttime
Lens: 8mm/F1.2
Effective Pixels:
- PAL: 752 (H) x 582 (V)
- NTSC: 512(H) x 492 (V)
IR Led:
-Φ8 x 48 pcs
-Φ5 x 18 pcs
- Wavelength: 850 nm
Video Output: 1Vp ~ p.75 Ω
Image Color: Color
Shutter Speed: 1/50 ~ 1/100,000 second
White Balance: Auto
Backlight Compensation: ON
S/N Ratio: > 48db
Sync Speed: Internal
Minimum Illumination: 0.000 LUX at night(IR LED ON)
Scanning mode: 2:1
Waterproof Level: IP66
CDS Sensor: YES
Audio: No
Operating Temperature: -20 ~ 50 Degrees Celsius
Operation Humidity: RH95%
Connection Type: BNC
Power Requirement: DC 12V, 1000mA

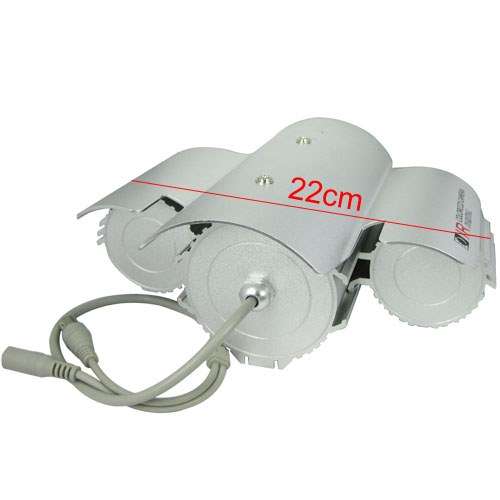

Dimensions(L x W x D): 220 x 167 x 85 mm
Color: Silver
Applicable Scope: House, Hotel, Corridors Aisle, Large square, Road, etc. various occasions
Approved: CE / FCC
After Sales Service: 1 year warranty

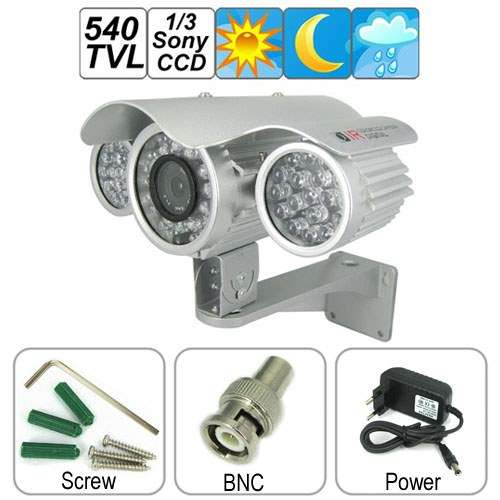

Accessories:

1 x Power Adapter
1 x BNC
1 x Bracket
Screws
