545W HAITAI TaiJi TIER 1 Mono Crystal Solar Panel (6 Pack Combo)

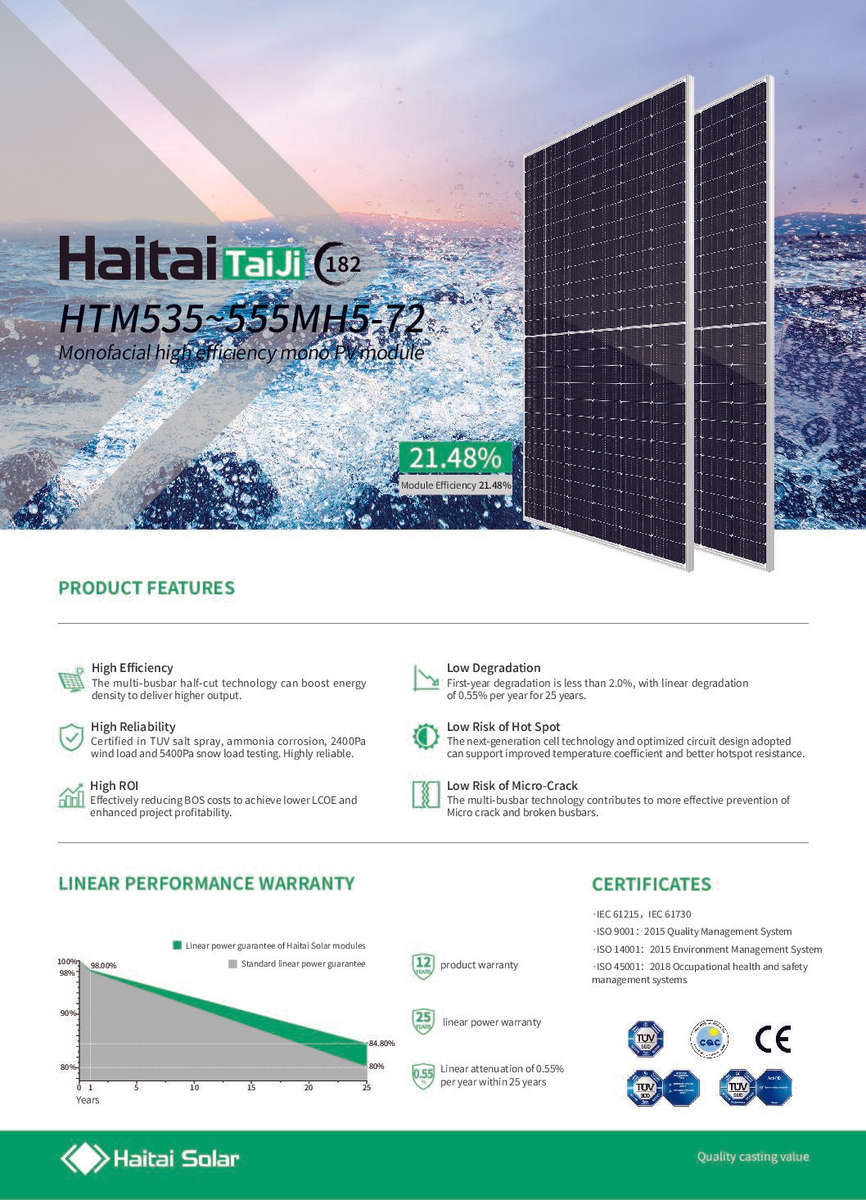

DATA SHEET : 04_Product_182-535-555-72_30 thickness 3

545W HAITAI TaiJi TIER 1 Mono Crystal Solar Panel (6 Pack Combo)

Please Note: Solar Panels are couriered at own risk.

The Haitai 545W Tier 1 Mono Solar Panel delivers top-tier efficiency with a module efficiency of 21.10%, ideal for maximizing energy generation in both residential and commercial installations. Built to last, it performs reliably in extreme temperatures from -40°C to +85°C, and features durable high-transmittance glass, an anodized aluminum frame, and an IP68-rated junction box for optimal protection. With a high power output of 545W and compatibility with both 1000V and 1500V systems, this solar panel offers superior performance and reliability. Upgrade your solar system with Haitai panels for long-term efficiency and sustainability.

Description:

• Exceptional Energy Efficiency: Haitai 545W solar panels are engineered with a high efficiency of 21.10%, making them an ideal choice for maximizing energy production in space-limited installations.
• Powerful Performance: Rated at 545W, these solar panels are perfect for both residential and commercial use, ensuring optimal energy generation even in limited roof spaces.
• Built to Endure: These panels are designed to operate in extreme conditions, withstanding temperatures from -40°C to +85°C, making them reliable in a variety of climates and weather conditions.
• Mono Crystalline Cells: Featuring 144 mono crystalline cells, arranged in a 6x24 configuration, these panels provide efficient energy conversion, even under less than optimal sunlight conditions.
• High-Quality Glass & Frame: The 3.2mm high transmittance glass ensures maximum light absorption, while the anodized aluminum frame and anti-aging film backsheet provide extra strength, durability, and protection for long-term performance.
• Compact and Lightweight Design: At 2278×1134×30mm and weighing only 28kg, these panels are easy to handle and install, while still offering high energy output.
• High System Voltage Compatibility: Suitable for both 1000V and 1500V systems, Haitai panels offer flexibility in integration, making them compatible with various residential and commercial solar systems.
• Reliable Junction Box: With an IP68-rated junction box, these panels are protected against dust and water, ensuring their continued performance under all weather conditions.
• Flexible Installation Options: The panel comes with MC4 compatible connectors and customizable wiring lengths for easy and flexible installation.

Specifications:

• Model: HTM545MH5-72
• Maximum Power (Pmax/W): 545W
• Open Circuit Voltage (Voc/V): 49.68V
• Short Circuit Current (Isc/A): 13.71A
• Voltage at Maximum Power (Vmp/V): 41.18V
• Current at Maximum Power (Imp/A): 13.24A
• Module Efficiency: 21.10%
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1000/1500V
• Cell Type: 182×91mm Mono
• Cell Orientation: 144(6x24)
• Module Dimensions: 2278×1134×30mm
• Weight: 28.0kg
• Glass: 3.2mm high transmittance, reinforced glass
• Backsheet: Anti-aging film
• Frame Material: Anodized aluminum alloy
• Junction Box Protection Class: IP68
• Cable: 4.0mm², positive pole: 200mm, negative pole: 250mm
• Connector: MC4 compatible connector

Combo Includes

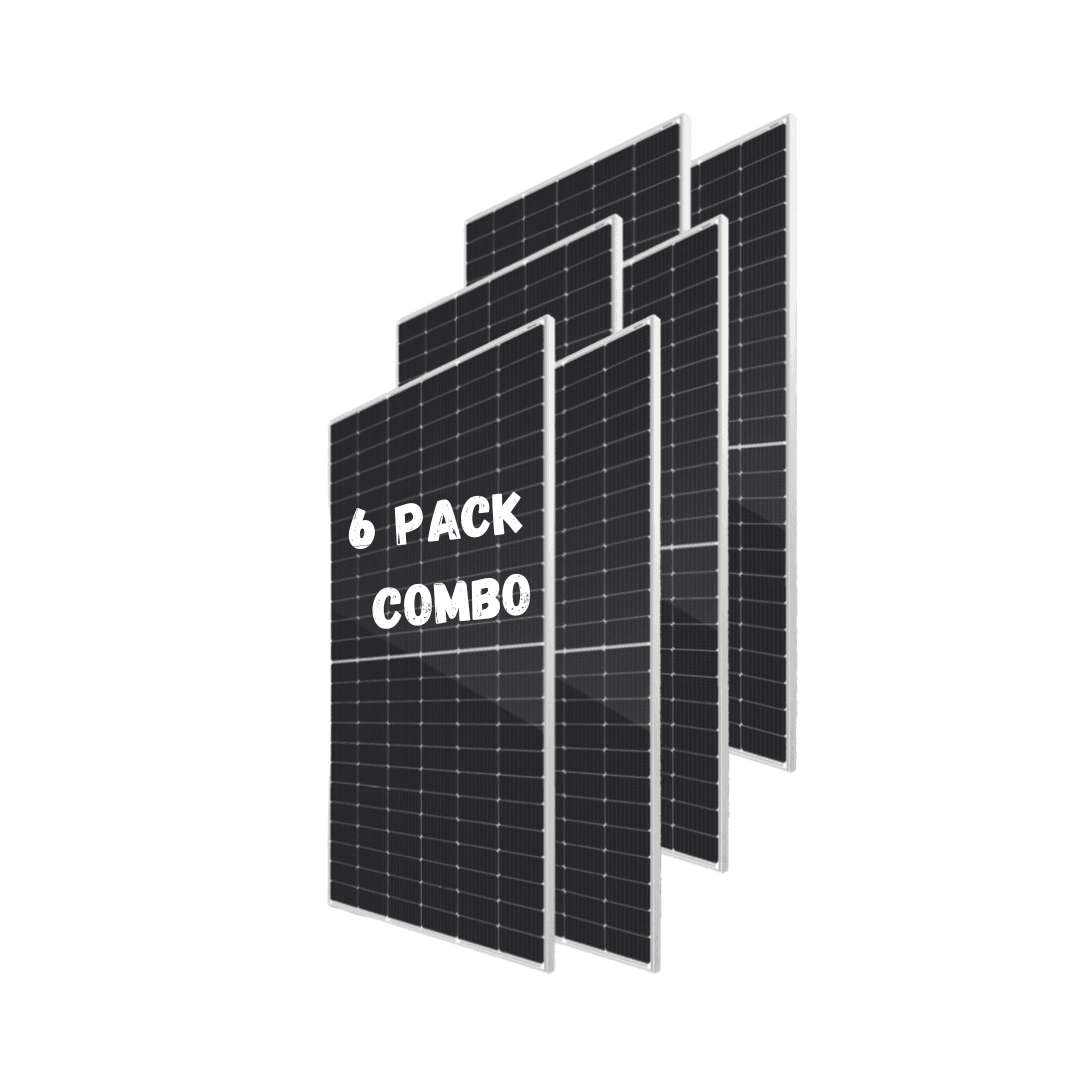

6x 545W HAITAI TaiJi TIER 1 Mono Crystal Solar Panel

Warranty:

• 25-Year Performance Warranty
• 10-Year Product Warranty

Installation Requirements:

• Installation must be performed by a qualified electrical wireman or master electrician.
• Compliance with SANS 10142 standards is required, and a Certificate of Compliance (COC) must be submitted for warranty validation.
