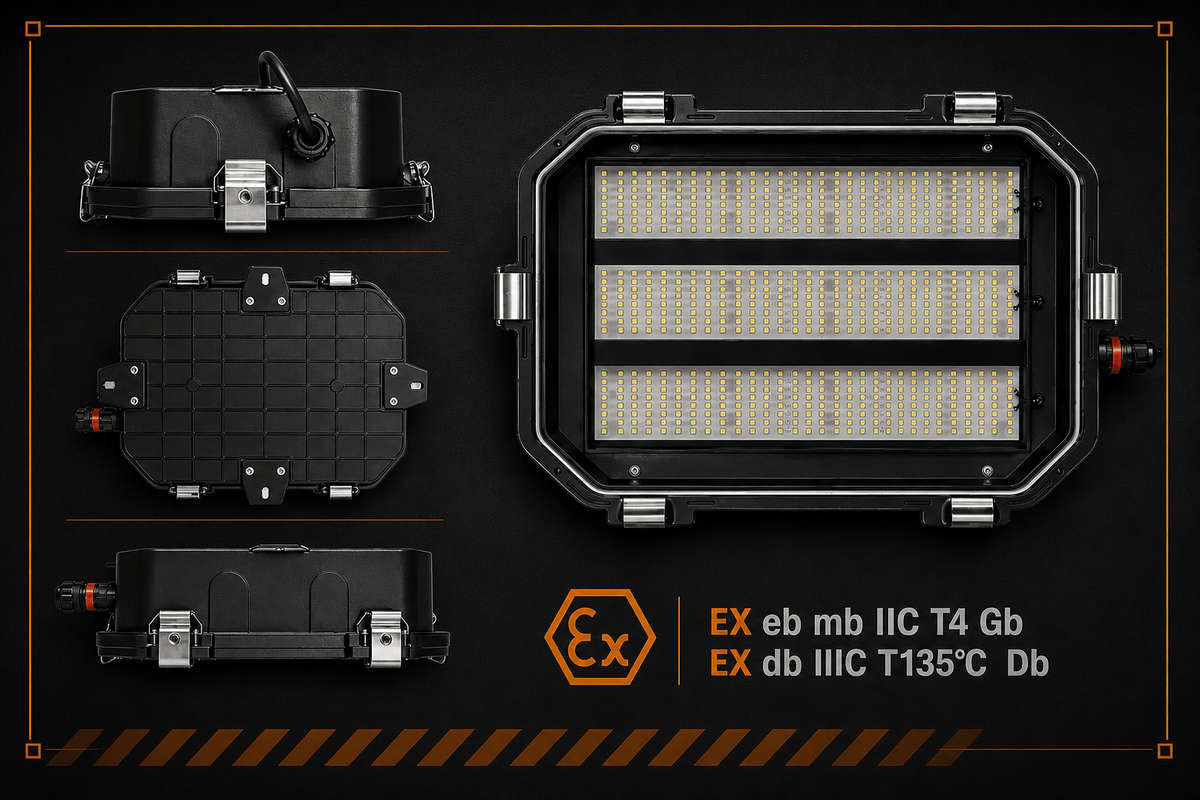

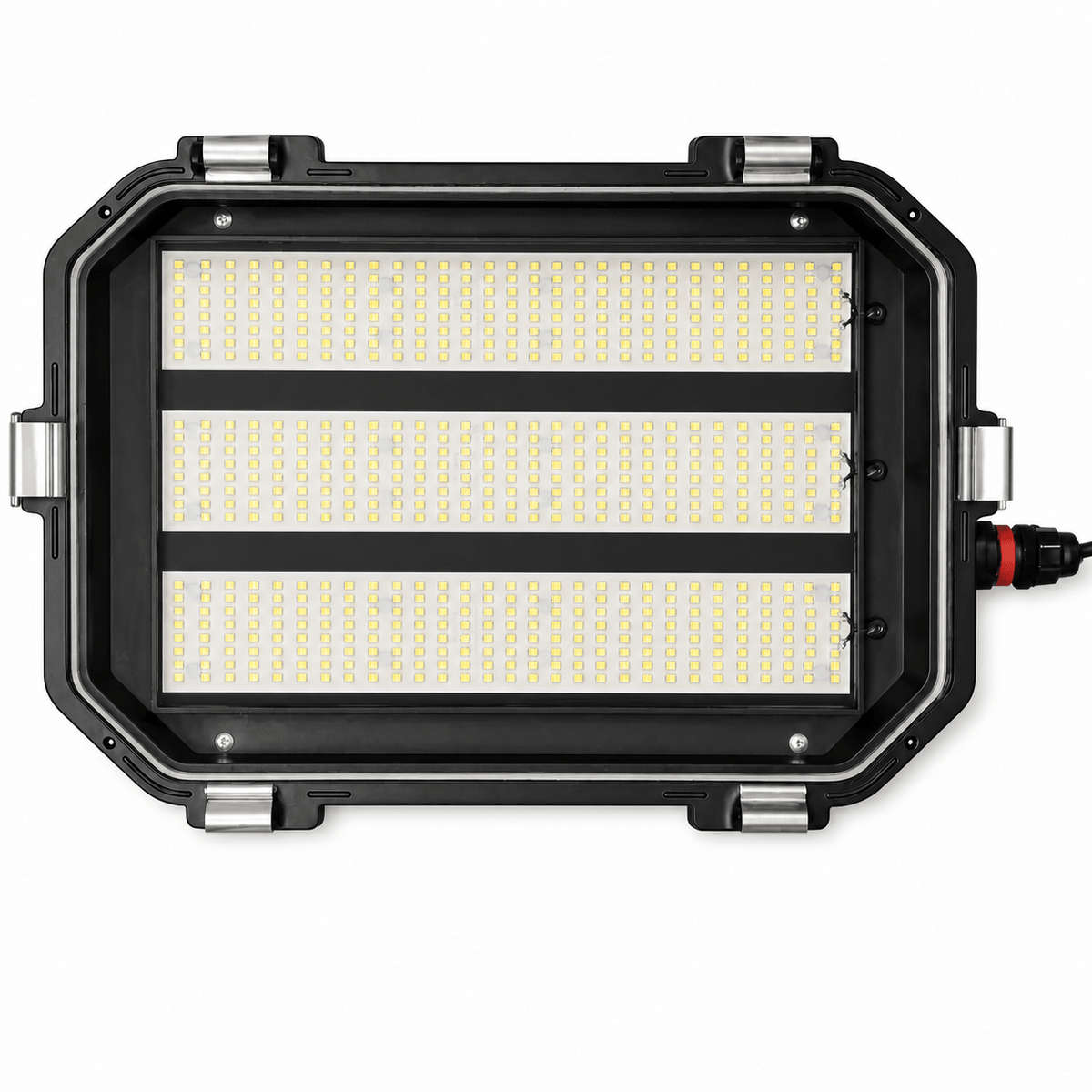

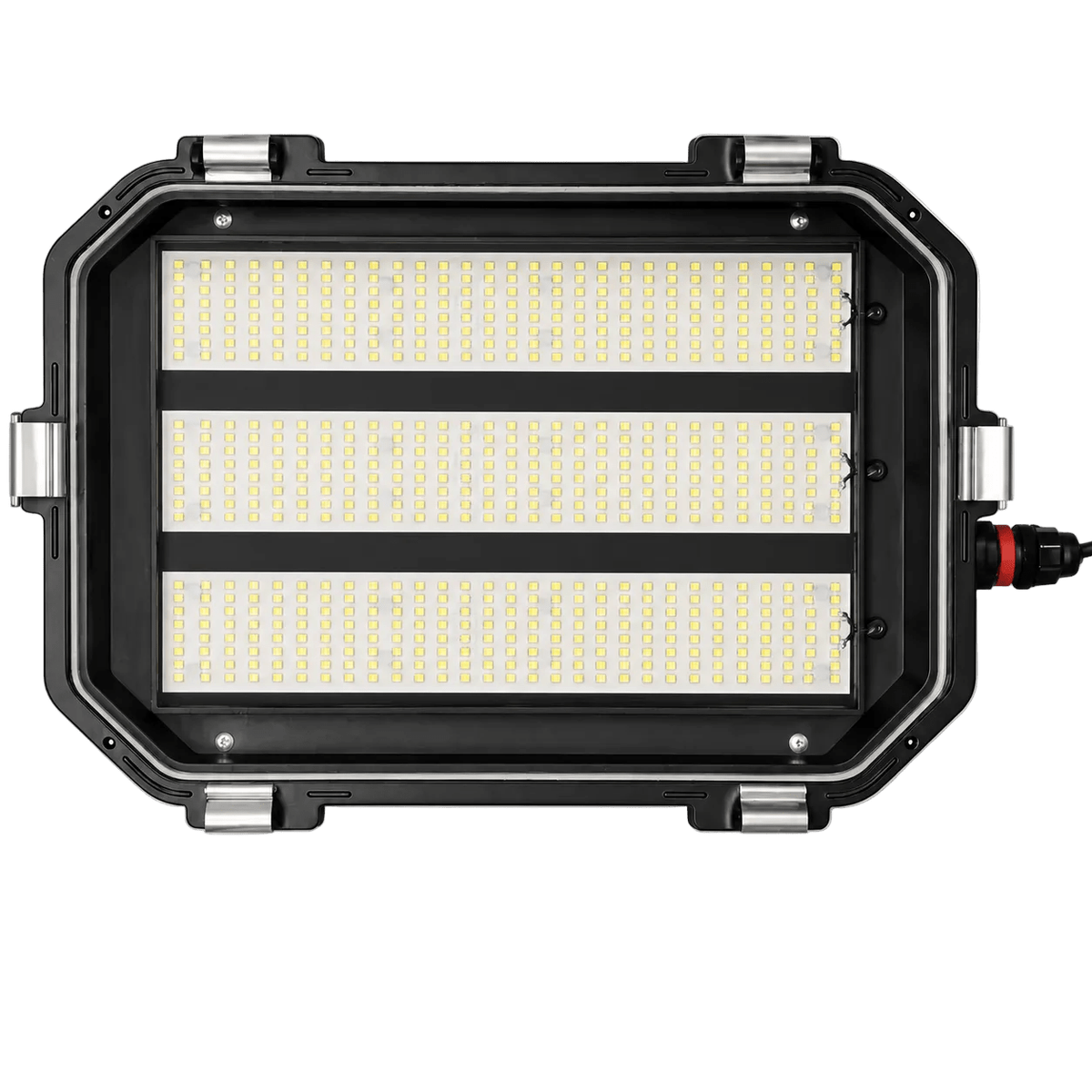

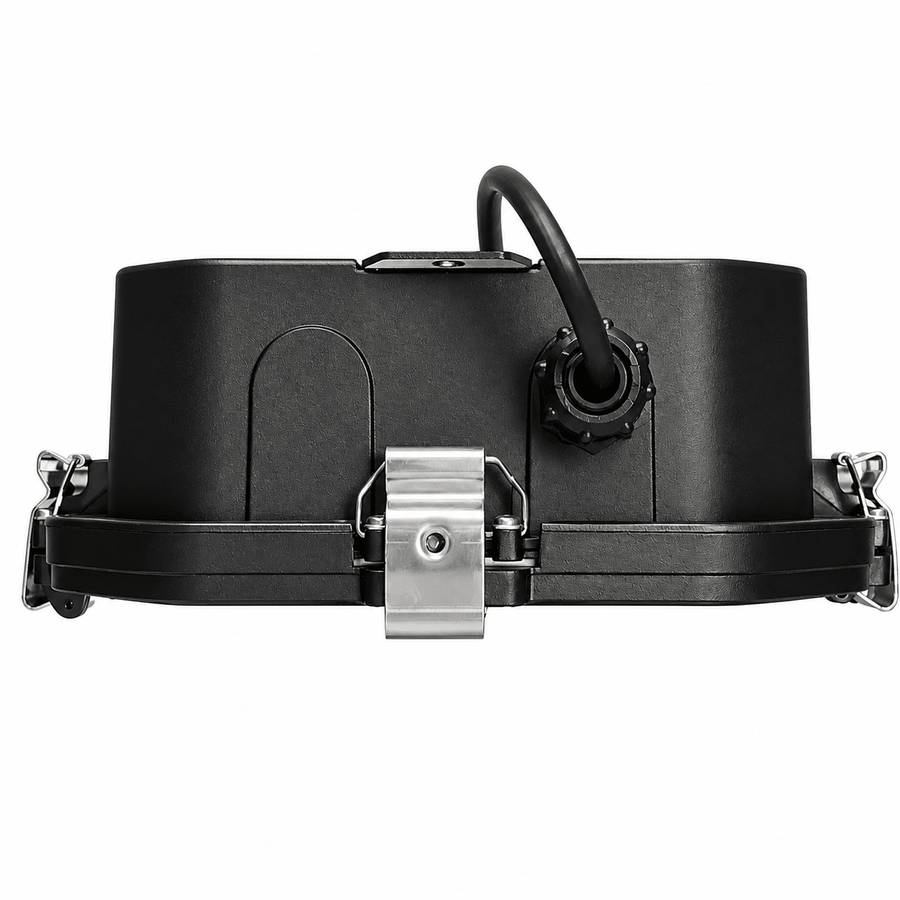

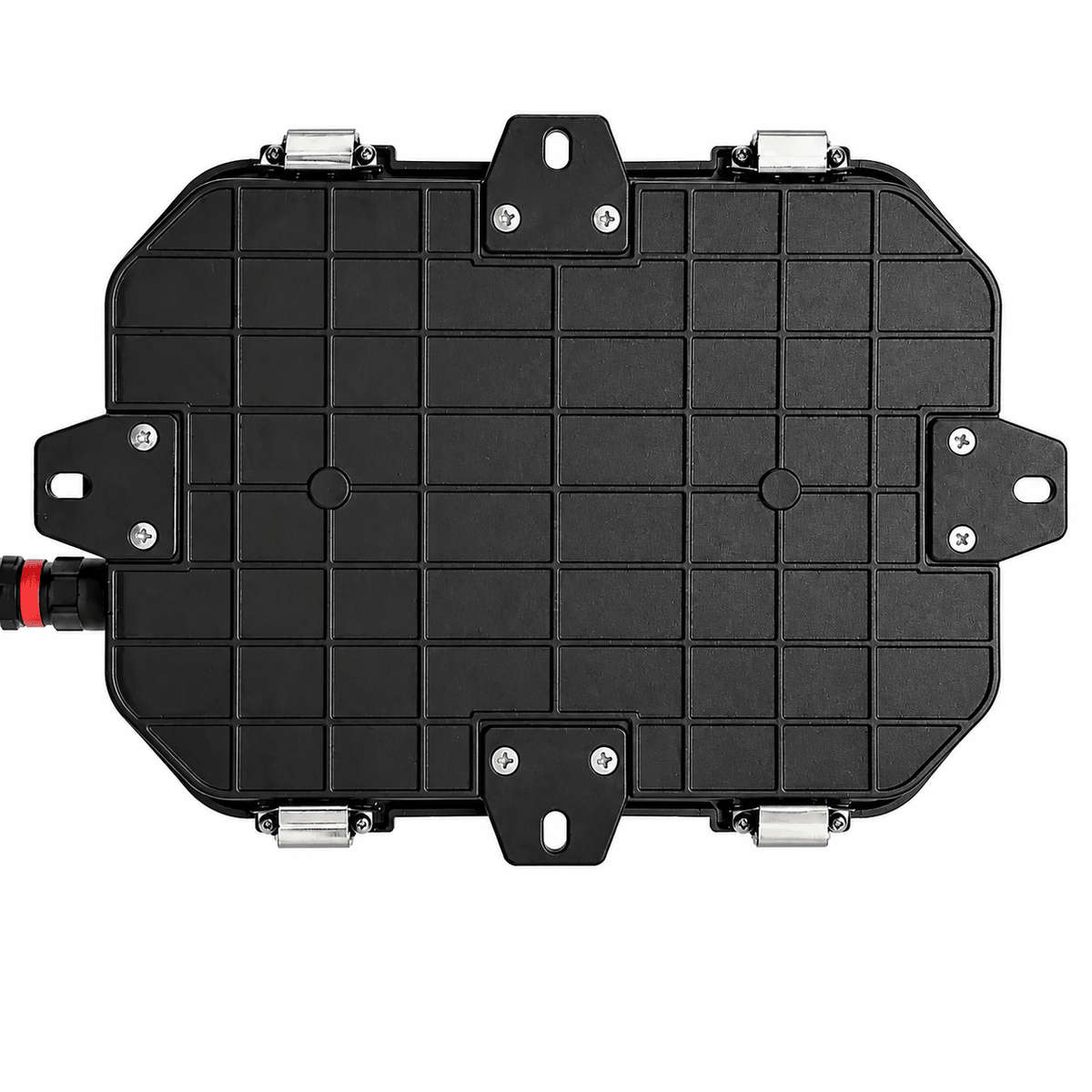

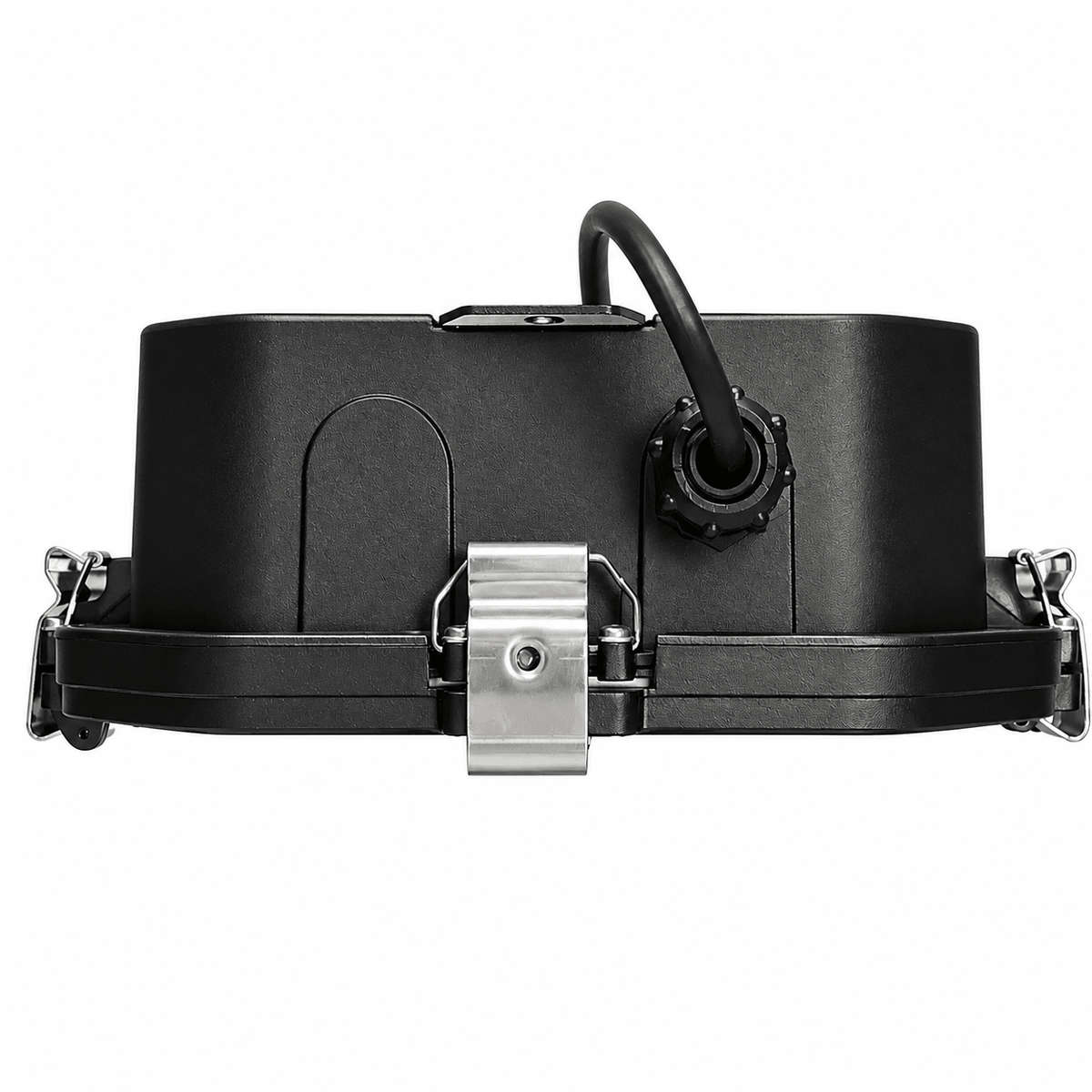

54W LED Explosion Proof Bulkhead - IP65 IK10

54W LED Explosion Proof Bulkhead IP65 IK10

This 54W LED explosion proof bulkhead is a heavy-duty lighting solution designed for hazardous industrial environments. Built to withstand tough conditions, it is ideal for applications where safety, durability, and high performance are essential.

Delivering 6,858 lumens with high efficiency, this bulkhead provides strong, uniform illumination. Its rugged aluminium housing, stainless steel latches, and high-impact polycarbonate diffuser ensure long-lasting reliability in demanding environments such as oil & gas, mining, and chemical facilities.

Practical Tip: Install explosion proof bulkheads in areas exposed to dust, moisture, or hazardous gases to ensure compliance and long-term safety.

Key Features

• 54W LED explosion proof bulkhead
• High output of 6,858 lumens
• High efficiency up to 127lm/W
• Multiple colour temperature options
• IP65 rated for dust and water resistance
• IK10 impact-resistant construction
• Heavy-duty aluminium housing
• Stainless steel latches for durability
• High-impact polycarbonate diffuser
• 70,000 hour lifespan

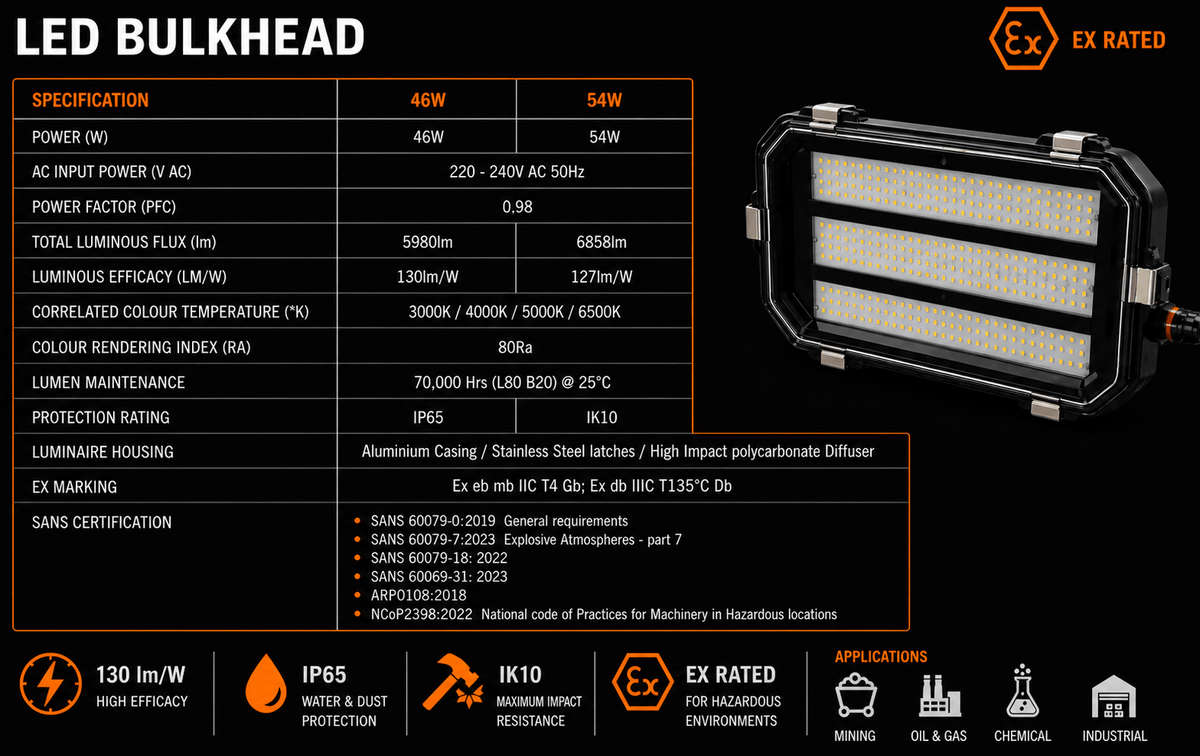

Specifications

• Wattage: 54W
• Voltage: 220240VAC
• Frequency: 50Hz
• Power Factor: 0.98
• Lumen Output: 6,858lm
• Luminous Efficacy: 127lm/W
• Colour Temperature: 3000K / 4000K / 5000K / 6500K Understanding Colour Temperature
• CRI: 80Ra
• Lumen Maintenance: 70,000hrs (L80 B20) @ 25°C
• IP Rating: IP65 Outdoor / Industrial Use
• Impact Rating: IK10
• Housing: Aluminium with Stainless Steel Latches
• Diffuser: High Impact Polycarbonate
• EX Marking: Ex eb mb IIC T4 Gb; Ex db IIIC T135°C Db
• Compliance: SANS 60079-0:2019, 60079-7:2023, 60079-18:2022, 60079-31:2023, ARP108:2018, NCoP2398:2022

Ideal Applications

• Mining environments
• Oil and gas facilities
• Chemical plants
• Industrial processing areas
• Hazardous work zones

Why Choose This EX Bulkhead

• Certified for hazardous environments
• High durability with IK10 protection
• Long lifespan with reliable performance
