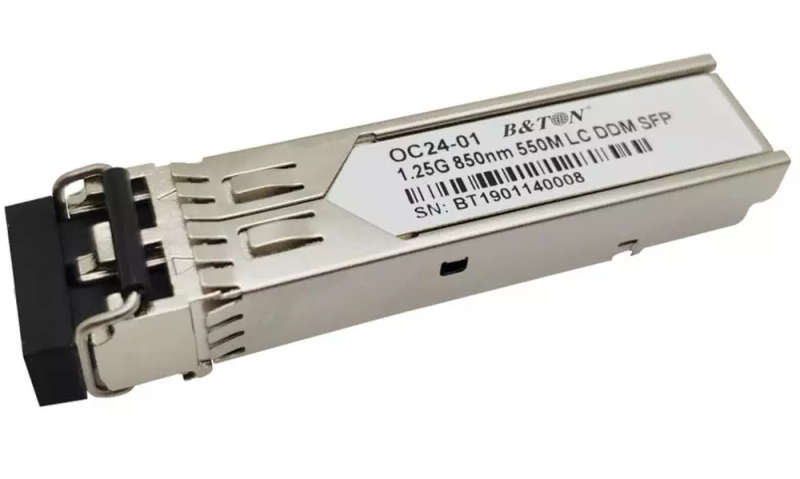

550m Multi Mode SFP Module | Dual LC Interface | Gigabit SFP miniGBIC | Cisco & Generic Network Switches
These Fiber SFP modules have been individually programmed to be compatible with Cisco and is 100% compatible with other generic sfp coding brands such as Tenda, Hikvision, TPLink, TrendNet, Netgear, Ubiquiti / Unifi and generic OEM brands.
This SFP is Hot-Pluggable and it can be inserted into a Network or POE Network Switch without the need to power-down the switch.
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. An SFP interface on networking hardware is a modular (plug-and-play) slot for a media-specific transceiver in order to connect a fiber optic cable or sometimes a copper cable.
Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.
- Support IEEE802.3 and Fiber Channel Applications
- Dual LC Connectors fiber data link with 1.25G GbE
- Support up to 550m Transmission on Duplex Multi Mode Fiber Cables 50/125 micron or 62.5/125 micron
- Connector: 2x LC UPC per Module
- Data Rate: 1.25Gbps
- Operation case temperature -40~85°C for Industrial, and 0~70°C for commercial
- RoHS6 Compliant
- Wave Length : 850nm
Example of Dual LC Fiber SFP Installation (Multi Mode OM3 Cable to be used and NOT Single Mode)
Operating Conditions
| Parameter | Unit | Min | Typical | Max |
| Storage Temperature | °C | -40 | | 85 |
| Operating Case Temp for C-temp | °C | 0 | | 70 |
| Operating Case Temp for I-temp | °C | -40 | | 85 |
| Power Supply Voltage | V | 3.1 | 3.3 | 3.5 |
| Supply Current | mA | | | 300 |
| Bit Rate for GE | Mpbs | 1250 |
| Bit Rate for Fiber Channel | Mpbs | 1062.5 |
These Dual LC Multi Mode SFP Modules are commonly installed with the Duplex Multi-Mode LC to LC Fiber Cables Below:
