| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |

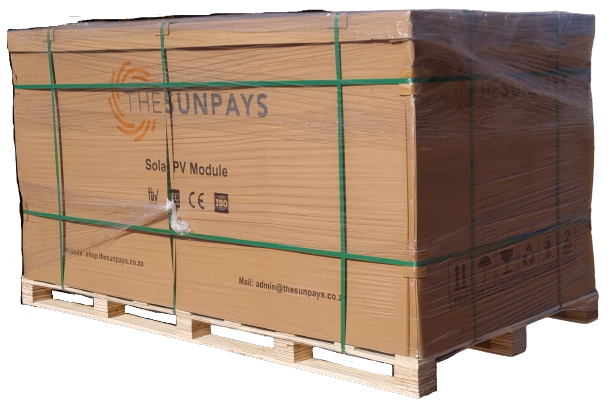

Pallet info:
31 x 550W Monocrystalline PV panel
Gross weight 911KG
Pallet Size 2290 x 1130 x 1260mm
Collection at office only. No shipping or courier options available. Ensure the correct vehicle for collection.
Specification highlights:
550W Bifacial Monocrystalline PV panel.
16 Busbar design.
144 A-grade monocrystalline solar cells.
With a 12-year product warranty and a 30-year design life warranty.
Certifications include: German (TUV) certified, IEC, and CE
Electrical specifications @ STC:
Maximum efficiency: 21.3%
Maximum power (Pmax): 550W
Maximum power voltage (Vmp): 42V
Maximum power current (Imp): 13.1A
Open circuit voltage (Voc): 51V
Short circuit current (Isc): 13.88A
Maximum system voltage: 1500VDC(IEC)
Maximum series fuse rating: 25A
Mechanical specifications:
Cell size: 182 x 91mm
Cell type: A-grade monocrystalline solar cell
Number of cells: 144(6 x 24)
Weight: 27KG
Dimensions: 2278 x 1134 x 35mm
Front side Max load: 5400 Pascal
Rear side Max load: 2400 Pascal
Junction box: IP68 rated
Connector: MC4
Cables: Photovoltaic technology cable 4.0 mm2
Max series fuse rating : 25A
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Specifications:
