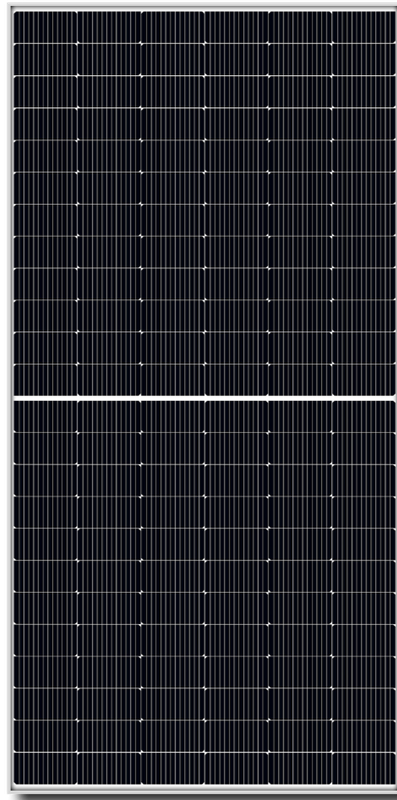

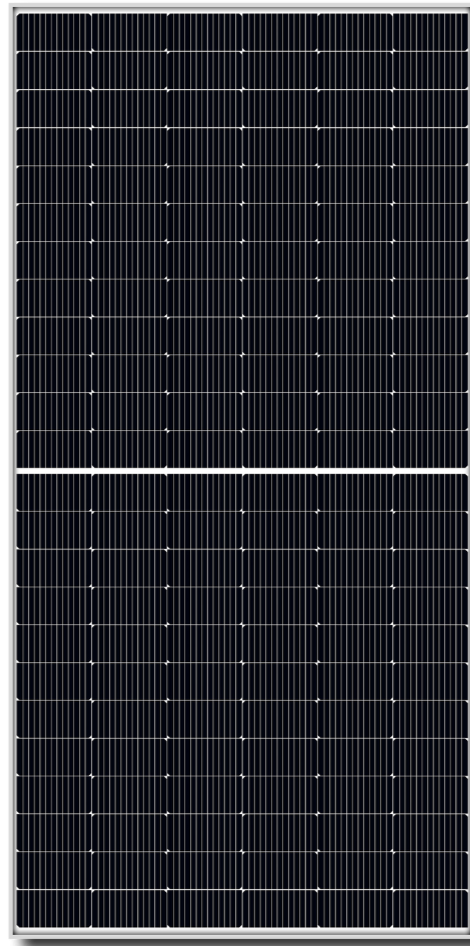

550W Mono Deichmann 12BB Solar Panel
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Specification highlights:
550W Monocrystalline PV panel.
12 Busbar design.
144 A-grade monocrystalline solar cells.
With a 12-year product warranty and a 30-year design life warranty.
Certifications include: German (TUV) certified, IEC, and CE
Electrical specifications @ STC:
Maximum efficiency: 21.3%
Maximum power (Pmax): 550W
Maximum power voltage (Vmp): 40.90V
Maximum power current (Imp): 13.45A
Open circuit voltage (Voc): 49.62V
Short circuit current (Isc): 14.03A
Maximum system voltage: 1000/1500VDC(IEC)
Maximum series fuse rating: 25A
Mechanical specifications:
Cell size: 182 x 91mm
Cell type: A-grade monocrystalline solar cell
Number of cells: 144(6 x 24)
Weight: 27kg
Dimensions: 2278 x 1134 x 35mm
Max load: 5400 Pascal
Wind load: 2400 Pascal
Junction box: IP68 rated
Connector: MC4
Cables: Photovoltaic technology cable 4.0 m m2, 900mm
Max series fuse rating : 25A
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Efficiency warranty: 90% in 12 years, 80% in 30 years**
Specifications:
