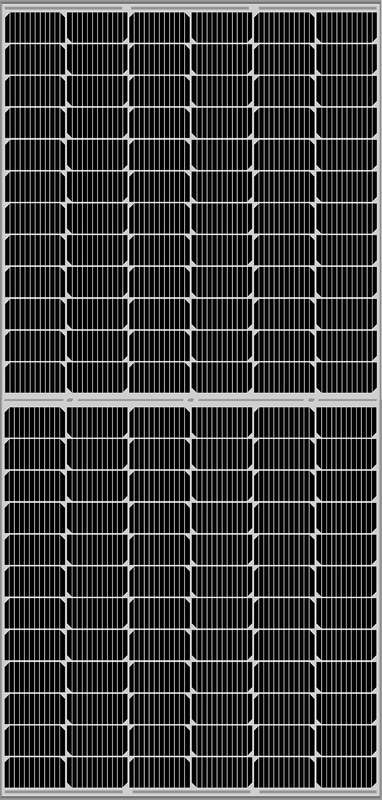

550W Mono Powitt 10BB Solar Panel

Specification highlights:

550W Monocrystalline PV panel.

10 Busbar design.

144 A-grade monocrystalline solar cells.

With a 12-year product warranty and a 30-year design life warranty.

Certifications include: German (TUV) certified, IEC, and CE

Electrical specifications @ STC:

Maximum efficiency: 21.3%

Maximum power (P_max): 550W

Maximum power voltage (V_mp): 40.99V

Maximum power current (I_mp): 13.42A

Open circuit voltage (Voc): 49.65V

Short circuit current (Isc): 14.13A

Maximum system voltage: 1500VDC(IEC)

Maximum series fuse rating: 25A

Mechanical specifications:

Cell size: 182 x 91mm

Cell type: A-grade monocrystalline solar cell

Number of cells: 144(6 x 24)

Weight: 28kg

Dimensions: 2278 x 1133 x 35mm

Max load: 5400 Pascal

Wind load: 2400 Pascal

Junction box: IP68 rated

Connector: MC4

Cables: Photovoltaic technology cable 4.0 m m², 900mm

Max series fuse rating : 25A

Warranty:

Product warranty: 12 years

Design life warranty: 30 years

Efficiency warranty: 90% in 12 years, 80% in 30 years**

Specifications:
