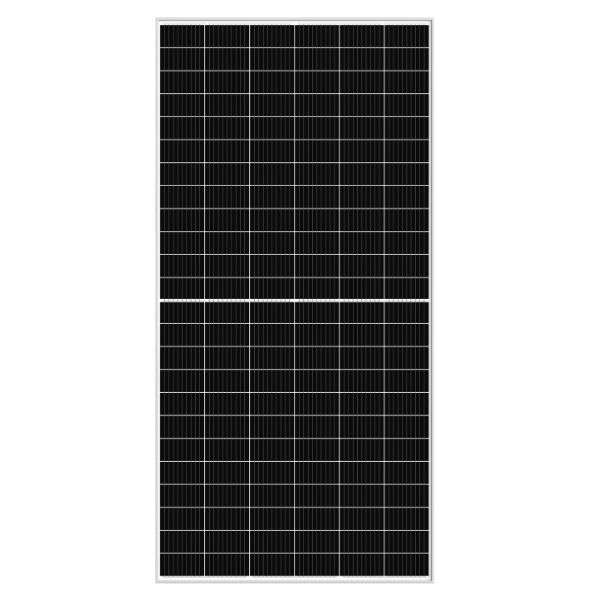

This module with its 11Bus-bar half-cell configuration can reach up to incredible power of 550W. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range:
Features;
- Higher power output
- Less shading
- Lower resistive losses
- Lower LCOE
Technical Specifications:
Cell: Mono.
Cable Cross Section Size: 4mm.
No. of Cells: 144 (6 x 24).
Junction Box: IP67, 3 diodes.
Connector: Genuine MC4-EVO2 - QC 4.10-35/45
Electrical Parameters at STC:
- Rated Maximum Power (Pmax) [W]: 550
- Open Circuit Voltage (Voc) [V]: 49.90
- Maximum Power Voltage (Vmp) [V]: 41.96
- Short Circuit Current (Isc) [A]: 14
- Maximum Power Current (Imp) [A]: 13.11
-Module Efficiency [%]: 21.3
- Power Tolerance: -0~+5W
- STC: Irradiance 1000W/m2, cell temperature 25 C, AM 1.5G.
What's in the box
1 x Solar 550w mono solar panel
