55V INDUSTRIAL POE 90W

The G90A-DG PoE Injector is a high-performance industrial 90W Power over Ethernet solution designed to power demanding devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment.

With Gigabit support, wide voltage input, and robust protection features, it ensures stable data transmission and safe power delivery

Key Features

• High Power Output – up to 90W PoE for power-hungry devices (DC 55V, 1.63A)

• IEEE 802.3bt Compatible – supports latest PoE++ standard.

• Gigabit Performance – 10/100/1000 Mbps data speeds.

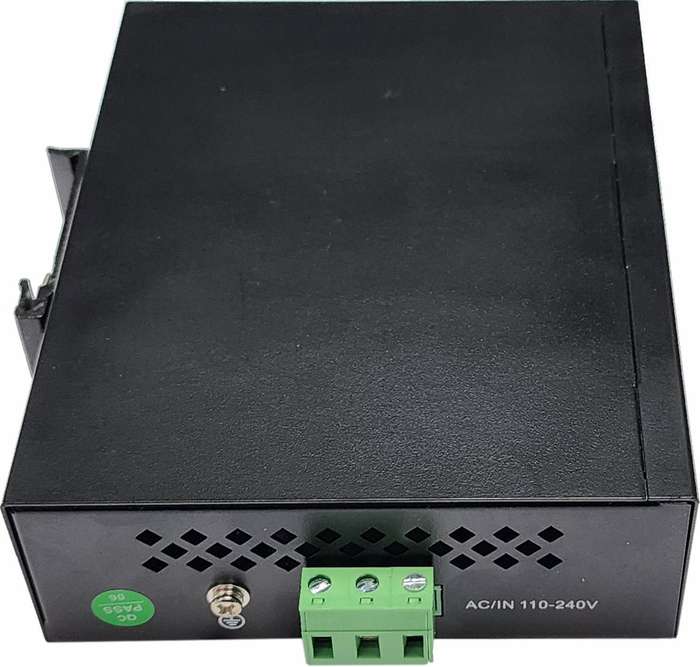

• Universal Input – 3-pin terminal block for connecting AC input (110–240V) 3-core AC cable not included (Live, Neutral, Earth)

• 4-Pair Powering – delivers power across all 8 pins for maximum efficiency (1/2/4/5 = V+ ; 3/6/7/8 = V– )

• Reliable & Safe – built-in over-voltage, over-current, and short-circuit protection.

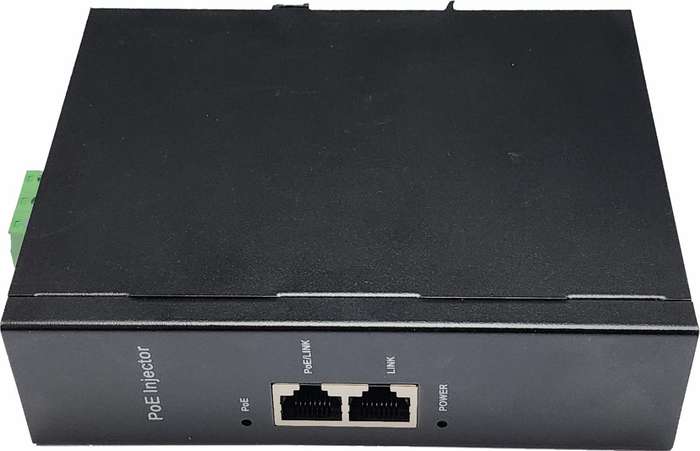

• LED Indicators – clear status lights for power and PoE.

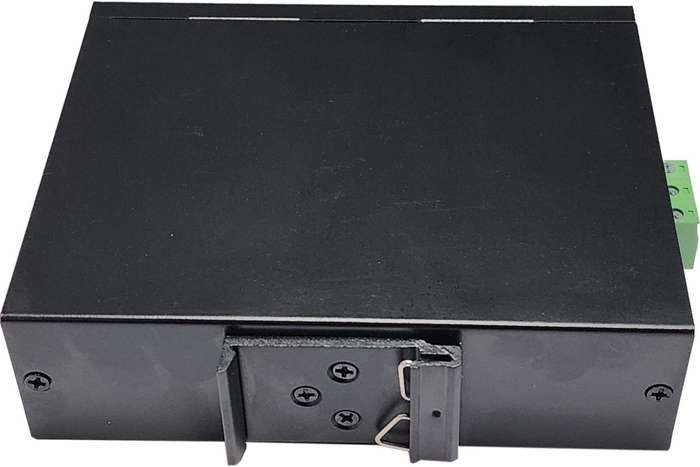

• Compact Design – easy desktop orrail-mounted installation supported
