56x56x19mm German Version 14mm Shaft Length DIY Mute Clock Movement Quartz Clock Mechanism Repair Ki

Description:
The clock movement repair kit is ideal for replacing defective units or for creating your own personalized clock projects.

Specification:
Material: Plastic
Color: Black
Battery: Not Included

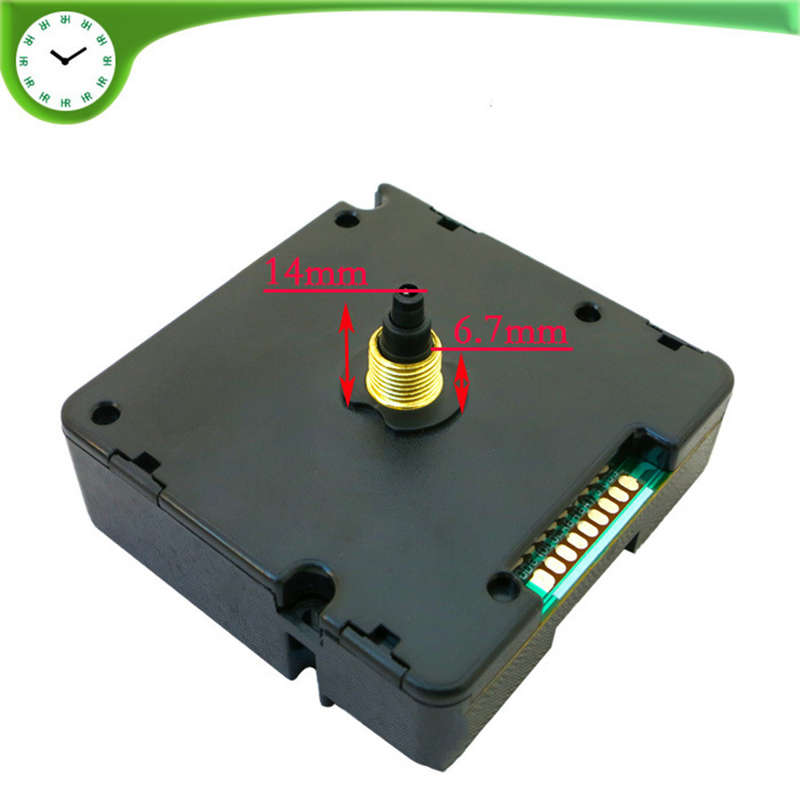

Shaft Length: 14mm (Screw 6.7mm)
Hour Hand Length: 80mm
Minute Hand Length: 110mm
Second Hand Length: 100mm
Clock Movement Sizes: 56x56x19mm
Crystal Frequency: 77.5KHz
Operating Voltage: 1.25V to 1.7V
Working Temperature: -5a-55a
Storage Temperature: -20a-70a
Average Power Consumption Current: Under 175uA at 1.5V
Receiving Current: <105uA
Receiving Times: 12x/day
Applicable Clock: Diameter 240-300mm

Features:
1. A quartz crystal controller clock movement with hour, minute and second hands.
2. Ideal for replacing defective units or for creating your own personalized clock projects.
3. Great for repairing, replacing or making a clock.
4. German wireless motor core, it automatically receives local time locally.
5. The quartz clock movement is German Version and only for European region.

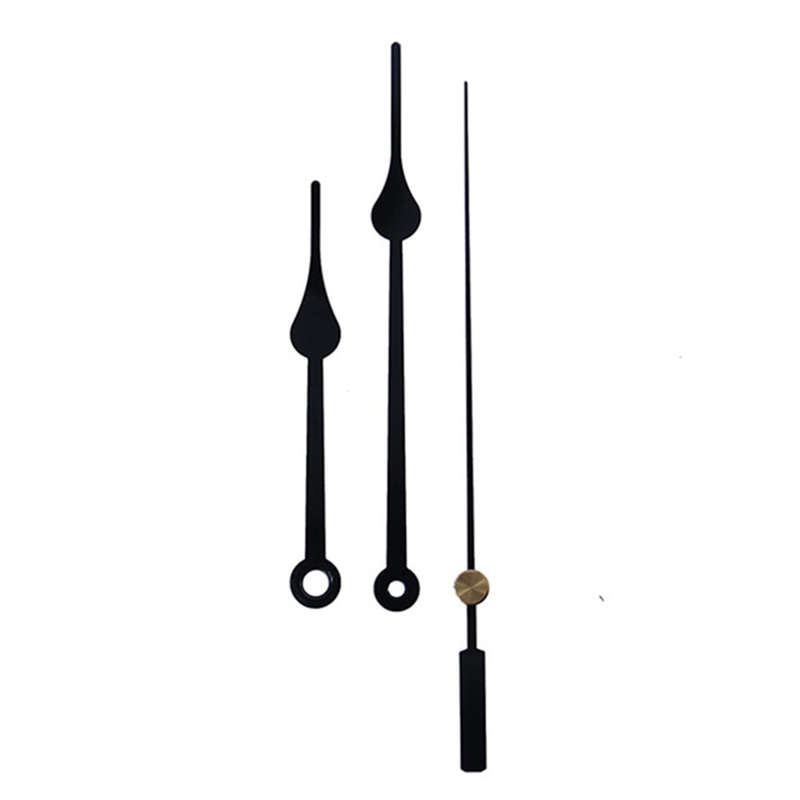

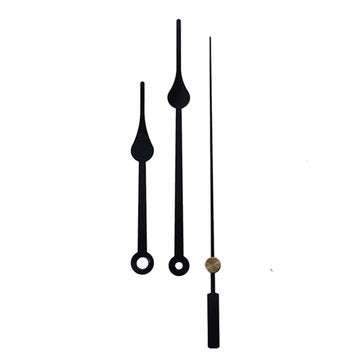

6. Comes with 3 sets of hour hand, minute hand and second hand, you can choose as your requirement.

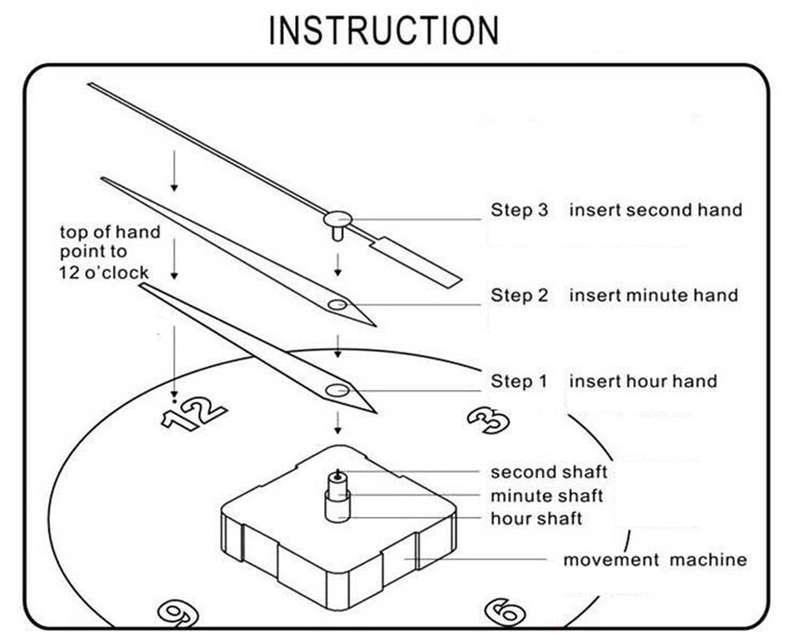

Instructions:
1.Fix the movement on the product to be installed.

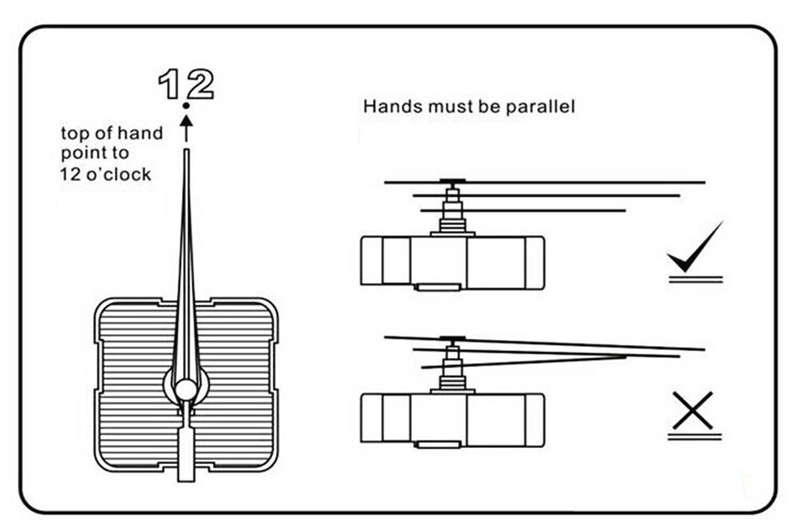

2.It will be installed in accordance with the standard 12 points.
3.Pull out the positioning pin behind the movement and then install the battery.
(Do not install the battery and then unplug the locating pin)

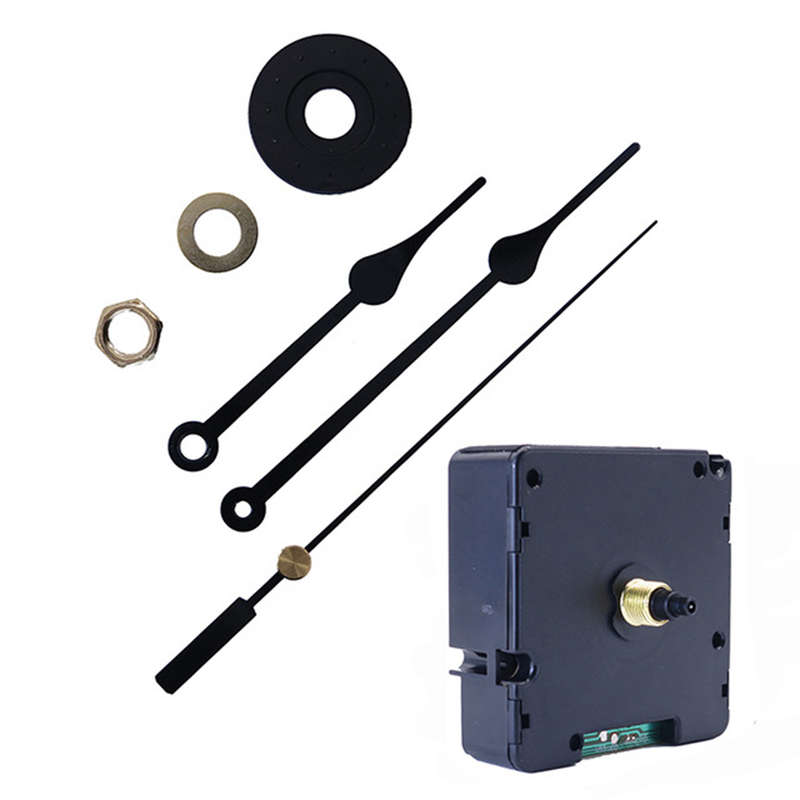

Package Included:
1 x Quartz Clock
1 x Hour Hand
1 x Minute Hand
1 x Second Hand
(The Batteries not Included)
