5A 75W DC-DC 4V-38V To 1.25V-36V Adjustable Step Down Converter Module
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

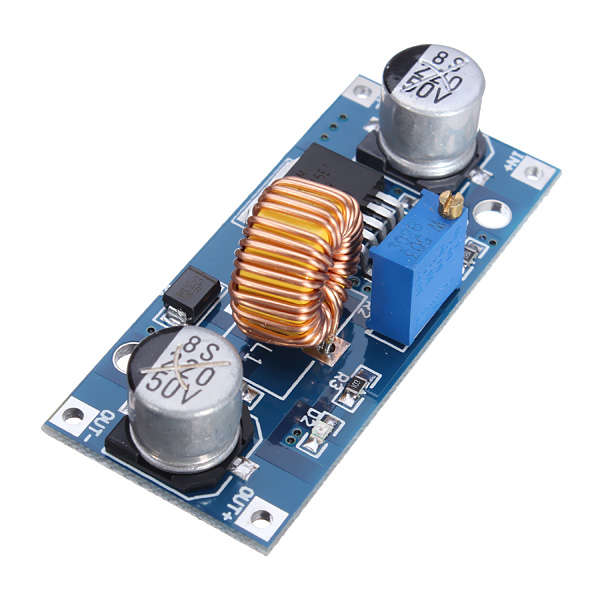

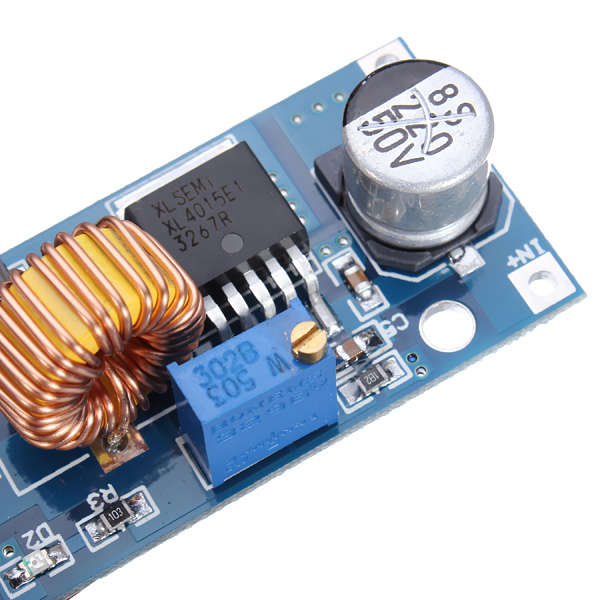

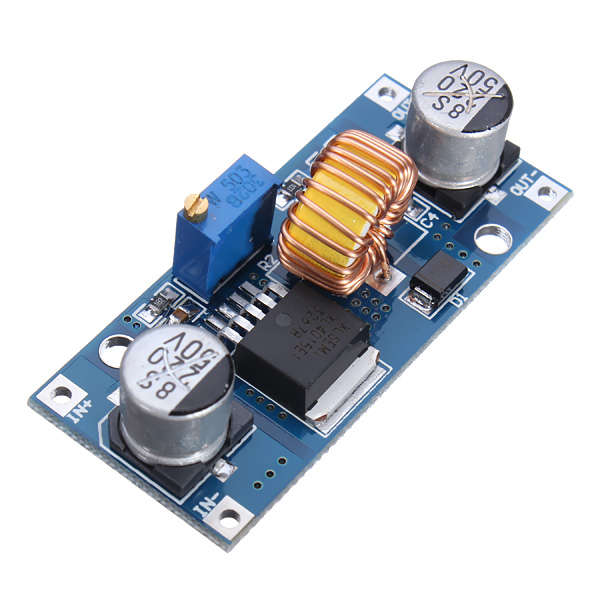

5A 75W DC-DC 4V-38V To 1.25V-36V Adjustable Step Down Converter Module
Specification:
Better than 2596, easy to 4A 50W, up to 75W adding heat sink
Input voltage: 4V ~ 38V (not more than 38V)
Output voltage: 1.25V ~ 36V (adjustable)
Output current: 0A ~ 5A (recommended 4.5A)
Output power: recommended use below 75W (add heat sink when more than 50W)
Operating temperature: -40°C ~ +85°C
Operating frequency: 180KHz
Conversion efficiency: Up to 96% (based on input and output voltage, current, pressure)
Load regulation: S (I) ≤0.8%
Voltage regulation rate: S (u) ≤0.8%
Power indicator: Yes
Short circuit protection: Yes (limit current 8A)
Over temperature protection: Yes (shutdown output automatically after over temperature)
Input Reverse Polarity Protection: None (cascade high current diode if required)
Wiring: IN+/- Input, OUT+/- Output
Size: 5.4 x 2.3 x 1.8cm
Application:
Accumulator, Power Transformer, DIY Adjustable Regulated Power, Industrial Equipment, 24V Vehicle Notebook Power Supply
12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V
Package included:
1 x Adjustable step down converter module
