Do not combine connection of input GND and output GND

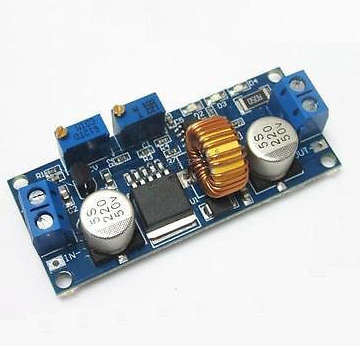

Features:
High power, high efficiency, 5A, low ripple;
Three main functions:
use as an ordinary step-down modules with overcurrent protection capabilities;
as the value of various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) charger for solar panels, wind turbines and other occasions;
used as high-power LED constant current driver module;
Having a constant voltage and constant current modes, the indicator light indicates which mode is currently in the module;
When used as a lithium battery charger, you can set the float voltage and charge current, it has a light finger
It is shown being charged or has been filled;
Current limiting protection, output short circuit will not even burn module.
Parameters:
Input: IN + input positive, IN- input negative Output way: OUT + output positive level, OUT- output negative
Input Voltage: 4-38V
Output voltage: 1.25-36V continuously adjustable
Output current: adjustable, 5A
Output Power: 75W maximum
Operating temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: Yes (limited current 8A)
Over temperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (as required in the input string into a large-current diode)
Installation: four 3mm screws
Connection: terminals or solder terminals, V-IN is the input, V-OUT output
