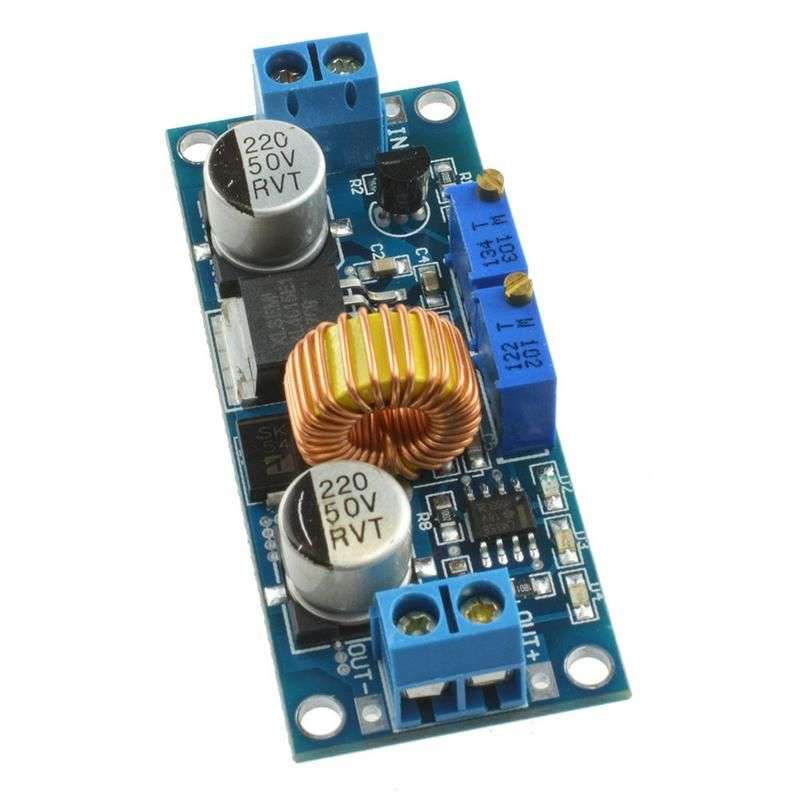

5A CC&CV Buck Step-Down Power Module XL4015

Application:- Lithium battery charger- LED DriverNote:- Do not combine connection of input GND and output GNDFeatures:- High power, high efficiency, 5A, low ripple;Three main functions:- Use as an ordinary step-down module with overcurrent protection capabilities;- As the value of various voltage lithium batteries, batteries, nickel-cadmiumnickel-metal hydride - - - - Batteries (battery) charger for solar panels, windturbines and other occasions- Used as high-power LED constant current driver module;- Having a constant voltage and constant current modes, the indicator lightindicates which mode is currently in the module;- When used as a lithium battery charger, you can set the float voltage andcharge current, it has a light finger- It is shown being charged or has been filled;- Current limiting protection, output short circuit will not even burn module.Parameters:- Input: IN + input positive, IN- input negative- Output way: OUT + output positive level, OUT- output negative- Input Voltage: 4-38V- Output voltage: 1.25-36V continuously adjustable- Output current: adjustable, 5A- Output Power: 75W maximum- Operating temperature: -40 to + 85 degrees- Operating frequency: 180KHz- Conversion efficiency: up to 96%- Short circuit protection: Yes (limited current 8A)- Over temperature protection: (automatically shut off the output afterovertemperature)- Input reverse polarity protection: None, (as required in the input string intoa large-current diode)- Installation: four 3mm screws- Connection: terminals or solder terminals, V-IN is the input, V-OUT output- Module Size: Length 61.7mm Width 26.2mm height 15mm- Weight: 25g
