SELECTED OPTION:
VOLTAGE: 5V
Features: ? 1. DC-DC boost converter module, working frequency 600KHZ. 2. Conversion efficiency up to 94% (usually 75-91%). 3. Over temperature shutdown, input under voltage and short circuit . 4. On-board high quality capacitors stabilize output voltage. 5. Reasonable component layout, easy to wire and use. ?

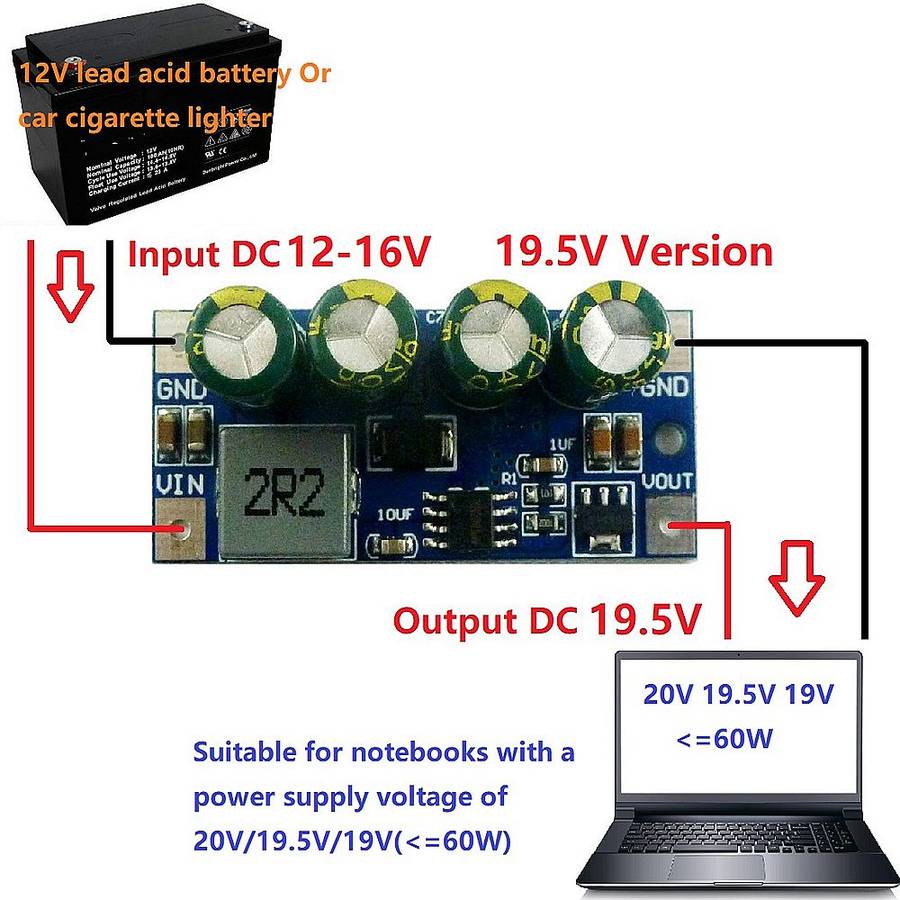

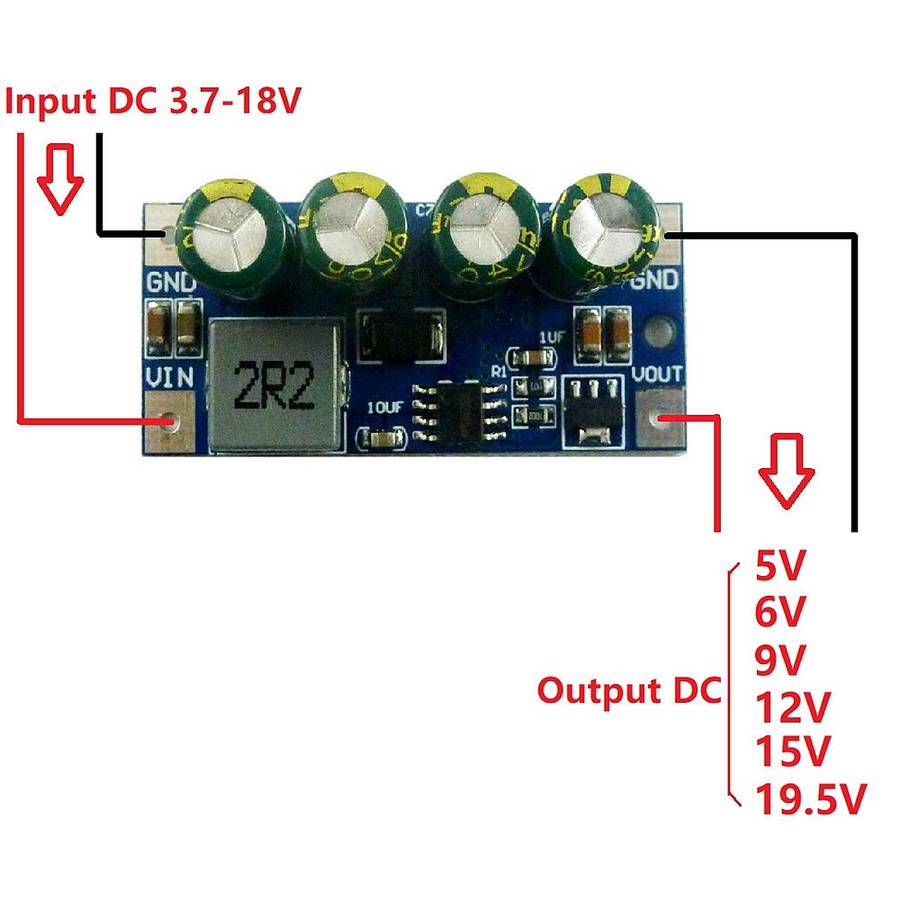

Specifications: ? Output Voltage: 5V 6V 9V 12V 15V 19.5V (Optional) Working Frequency: 600KHZ Maximum Conversion Efficiency: 94%(Normally 75%-91%) Quiescent Current: About 1MA Operating Temperature: -40~+85a?? Storage Temperature: -65~+150a?? Size :? 45x21x15mm Weight : 9g ? Output 5V: Input voltage DC 3.7~4.5V, output DC 5V±3% Maximum output: 5V / 3.5A (maximum power 17W, see picture for more details) ? Output 6V: Input voltage DC 3.7~5V, output DC 6V±3% Maximum output: 6V / 4A (maximum power 24W, see picture for more details) ? Output 9V: Input voltage DC 3.7~8V, output DC 9V±3% Maximum output: 9V / 5A (maximum power 45W, see picture for more details) ? Output 12V: Input voltage DC 3.7~11V, output DC 12V±3% Maximum output: 12V / 5A (maximum power 60W, see picture for more details) ? Output 15V: Input voltage DC 3.7~14V, output DC 15V±3% Maximum output: 15V / 4.5A (maximum power 67W, see picture for more details) ? Output 19.5V: Input voltage DC 9~18V, output DC 19.5V±3% Maximum output: 19.5V / 3A (maximum power 58W, see picture for more details) ?

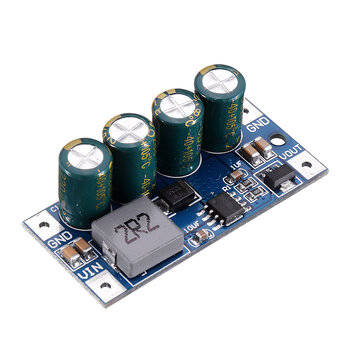

Package Included: ? 1 x 5A High-power DC DC Converter Step-Up Module ?
