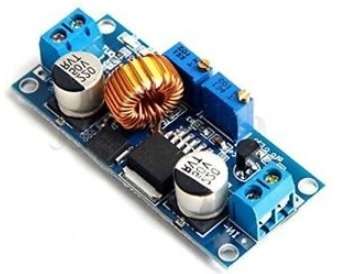

Module highlights: 5A high power, high efficiency and low ripple with power indicator
Input voltage range: 4¿38VDC (Note: input voltage not exceeding 38V)
Output voltage range: 1.25-36VDC adjustable
Output current: 0-5A, recommended for use in 4.5A.
Output power: 75W
Working temperature: -40~+85 degrees
Operating frequency: 180KHz
Efficiency: 96%¿max)
Short circuit protection: yes(limit current 8A).
Over temperature protection
Input reverse polarity protection: None (if required, high current diode in series with the input).
L x W x H: 54 x 23 x 18mm
