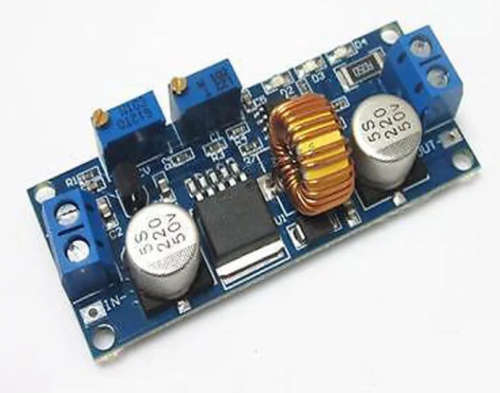

5A Lithium Charger CV CC buck Step down Power Supply Module LED Driver

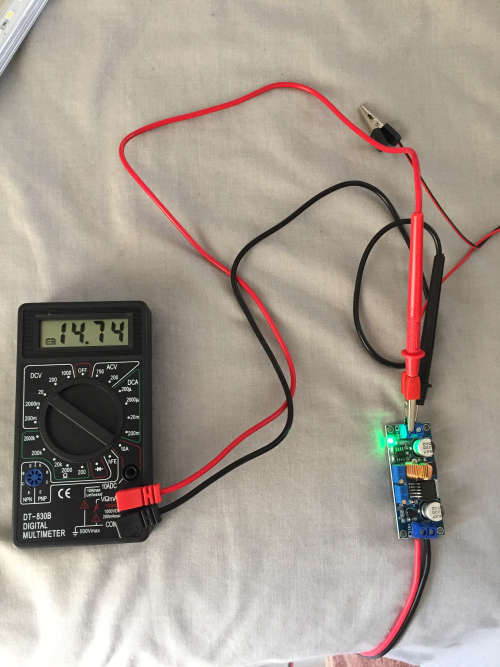

5A Lithium Charger CV CC buck Step down Power Supply Module LED Driver NewProduct DescriptionWhen you use the product, the module inputs and outputs to be isolated from groundSpecifications1.Input voltage range:638VDC(Note:input voltage not exceeding 38V)2.Output voltage range:1.25-36VDC adjustable3.Output current: 0-5A4.Output power: 75W5.High efficiency up to 96%6.Built in thermal shutdown function7.Built in current limit function8.Built in output short protection function9.Input reverse polarity protection: None (if required, high current diode in series with the input).10.L x W x H =61.7*26.2*15mm11.Weight: 20gApplication1.Use as a step-down modules with overcurrent protection capabilitiesUsage:(1) adjust the voltage potentiometer so that the output voltage reaches the value you want.(2) use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the current potentiometer so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)(3) Connected to the load.2.Use as a battery chargerUsage:(1). Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)(2). Under no-load conditions, adjust the Voltage potentiometer so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)(3). use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the current potentiometer so that the output current reaches a predetermined Charging current value.(4). Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)(5).connected to the battery charge.(1,2,3,4 steps as: Output is unloaded, do not connect the battery)3.Use as a LED constant current driver moduleUsage:(1). adjust the voltage potentiometer so that the output voltage reaches the value you want.(2). use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the current potentiometer so that the output current reaches a predetermined LED operating current.(3). Connect LED, work.(1,2 steps as: Output is unloaded, do not connect LED)
