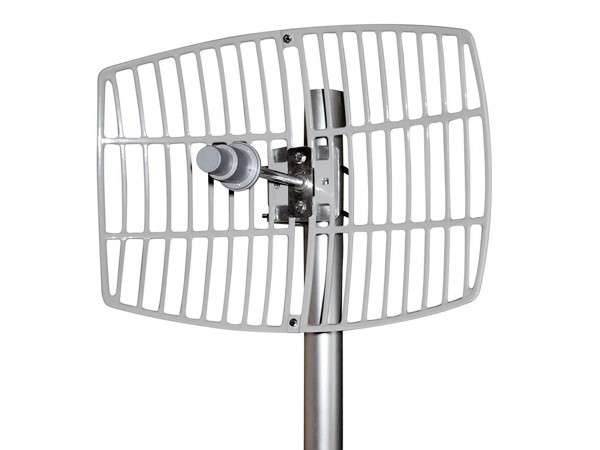

5GHz 27dBi Grid Antenna

IN STOCK at supplier.
If ordered before 12PM:
DELIVERED next day (main centres)
or 2-3 days (regional areas or large items)
COLLECTION from Geewiz Same Day (aprox 4pm)

Features:

The ANT-G527 is a high-gain 27dBi wide-band, long-range Reflector Grid Antenna, which is ideal for directional 5.1GHz-5.8GHz ISM band applications.

These antennas are ideal for point-to-point systems, point to multi-point and wireless bridges. It can be installed for either vertical or horizontal polarisation.

The antennas' construction features a rust-proof, die-cast, light-weight aluminium grid for superior strength. The grid surface is UV powder-coated for durability and aesthetics. The open-frame grid design minimises wind loading.

The ANT-G527 antenna is easy to assemble and align

Specifications:

- Frequency Range: 5150-5850MHz
- Bandwidth: 700MHz
- Gain: 26.5dBi
- Horizontal Beam-width: 6°
- Vertical Beam-width: 9°
- F/B Ratio: ¿25 dB
- VSWR: ¿1.5
- Input Impedance-¿: 50
- Polarisation: Vertical or Horizontal
- Maximum Power: 100 W
- Connector: N Female

- Dimension (m): 0.4 x 0.6
- Weight: 2.4Kg
- Pole Diameter (mm): 40 - 50
- DC Grounded
