5Inch TFT LCD Car Monitor+CMOS Waterproof Night Vision Reverse Camera

5Inch TFT LCD Car Monitor + Rear View CMOS Waterproof Night Vision Reverse Camera

Features:
1. 5-inch 16: 9
2. Resolution: 480 * 272
3. Power supply: DC 12V-24V
4. Visual range: 112 * 63mm
5. Power consumption: 2W
6. Working temperature: -15°C ~ + 50°C
7. Storage Temperature: -20°C ~ + 70°C
8. Interface: 2 AV video interface, a standard power connector road
9.Black screen when no signal
10. Product Dimensions: 11.5CM * 7.5CM * 0.8CM(Length * width *thick)

Specifications:

Image Sensor	7070
Video System	PAL/NTSC
Resolution	PAL:682(H)×504(V) NSTC:648(H)×488(V)
Horizontal Resolution	480TVL
Electronic Shutter	1s-1/10000s
SNR	>48dB
Min Illumination	0.01LUX
Video Output	1.0Vp-p/ 75Ω
View Angle	170°
terproof Ratege	DC9V-12V±0.5V
Working VoltaWa	IP67

Note:
1.Connect the power cord must distinguish between positive and negative (red +, black -) If you pick the wrong,
cartridge fuse blows immediately. Please replace the same parameters of cartridge fuse.
2.Two main components both are LCD screen,the surface is glass structure, please note that anti-extrusion.
3.Installation should be solid and reliable, to prevent the situation of falling when the car is brakeing or running and causing personal and equipment accidents.
4.12v-24V DC contact should be connected to the main power supply in order to prevent excessive voltage affecting the normal use of the machine.

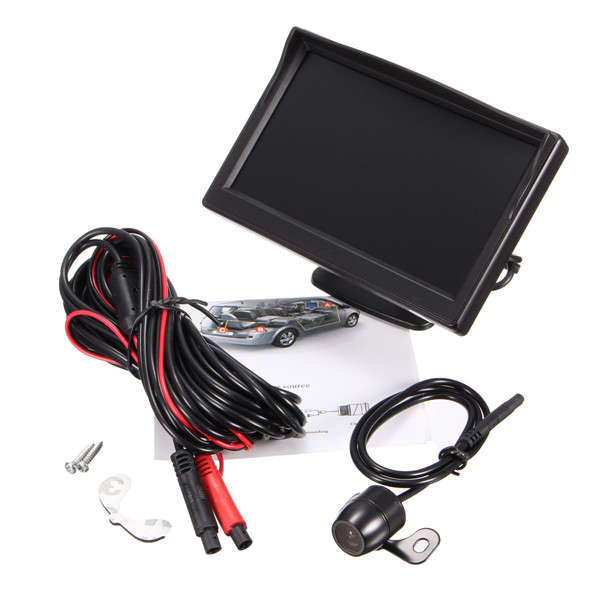

Package Included:

1 X Car Rear View Monitor	1 X Power Cable
1 X Installation of Visual Reversing	2 X Screw
1 X Car Rear View Camera

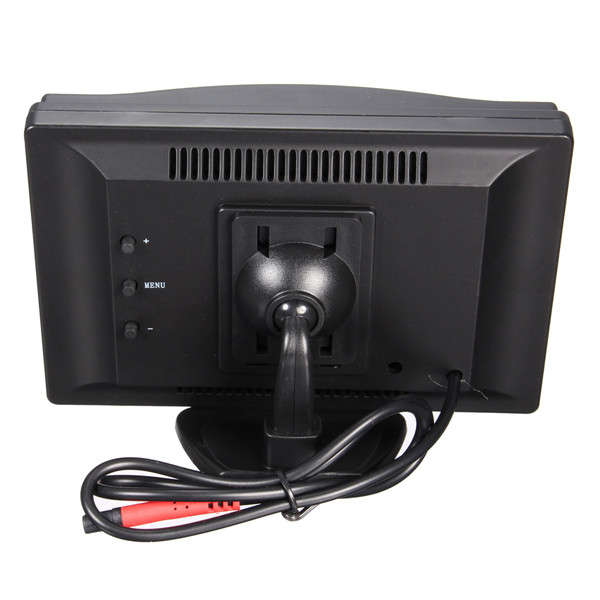

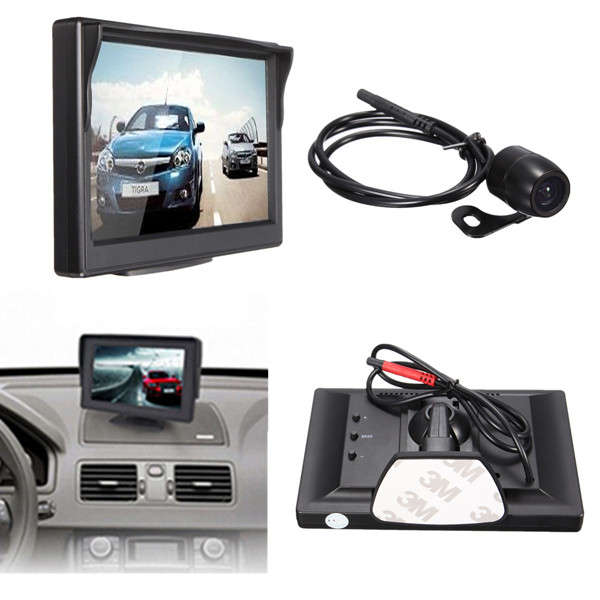

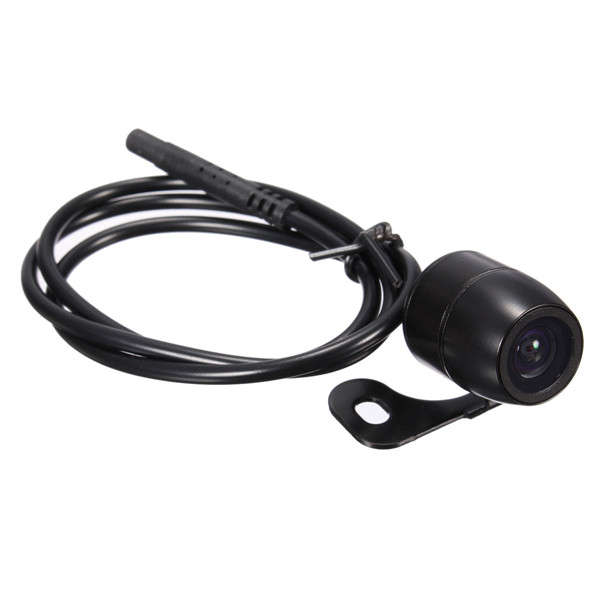

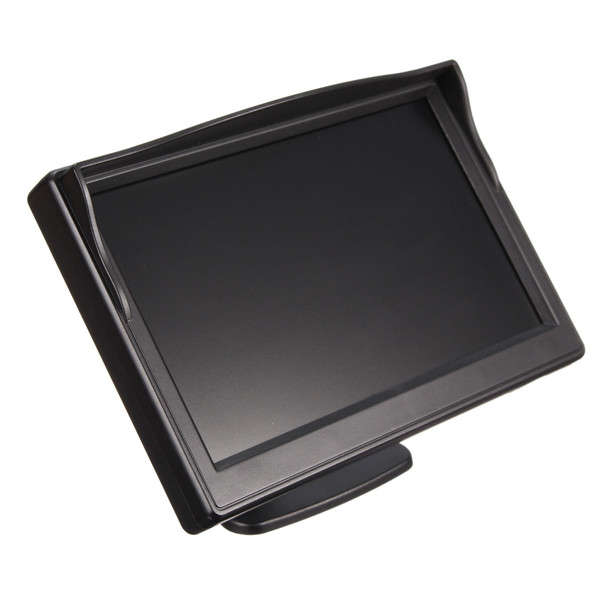

Picture details:
