The perfect solution for load shedding!

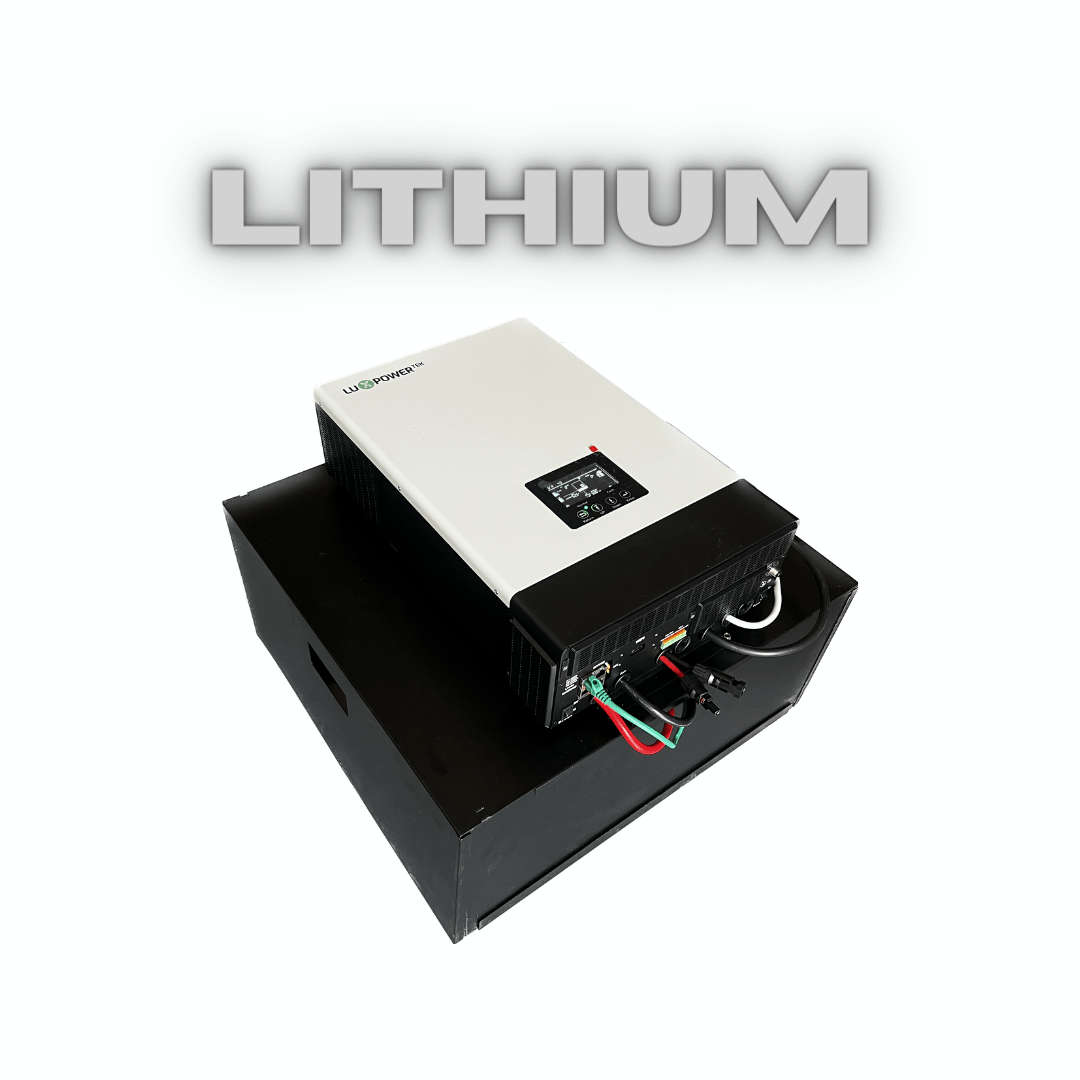

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
LUXPOWER SNA5000 WPV 5KW 48V
The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT's and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.
Key Features
Intelligent Off-Grid & Hybrid modes
PV and AC Power can power loads simultaneously
2 x MPPT's with wide input voltage range.
BMS communication to most leading brands of Batteries (See List)
Free monitoring via app and remote upgrades.
Single or unbalanced three phase
Parallel up to 10 units.
Independent generator interface.
Battery Compatability list
BYD
Dyness
Hubble
Lithium Batteries SA
PylonTech
Shoto
Revo.
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).
General:
Dimensions(W/H/D): 330x504x135mm.
Weight14Kg.
Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0C~50C.
Storage Temperature-15C~60C.
Interface.
Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.
Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life. Rack Mounted structure design reduces installation time and cost.
Features
Model: 51.2-100
Nominal Capacity (kWh): 5.12
Rated capacity: 100AH
Operating voltage range: 42V to 57.6V
Boost Charge / Float Charge Voltage: 57.6V / 54V
Depth of Charge: 90%
Usable Capacity (kWh): 4.6
Charge Voltage: 57.6V
Discharge Voltage: 48V
Nominal Voltage: 51.2V
Maximum Parallel Units: 16
Cycle Life: 5000 @ 25C
Humidity: 5%-95%
Altitude: 4000m
Installation Method: Rack Mount / Wall Mount
Terminal Stud: M8
SDA51.2-100
Compatible Inverters
Growatt, Goodwe, Victron, Deye, Sofar, Luxpower more
SDA51.2-100
WHATS INCLUDED :
1X HYBRID INVERTER LUXPOWER 48V 5KVA / 5000W
1X DOUBLE 3 POINT PLUG SOCKET
1X SHOTO 5.12KWH LITHIUM BATTERY
1X HEAVY DUTY BOX WITH LOCK WHEELS
1X BATTERY FUSE
1X MALE + FEMALE SOLAR CONNECTOR
1X POWER CABLE + SURGE PROTECTION
5 YEAR REPAIR WARRANTY ON INVERTER
