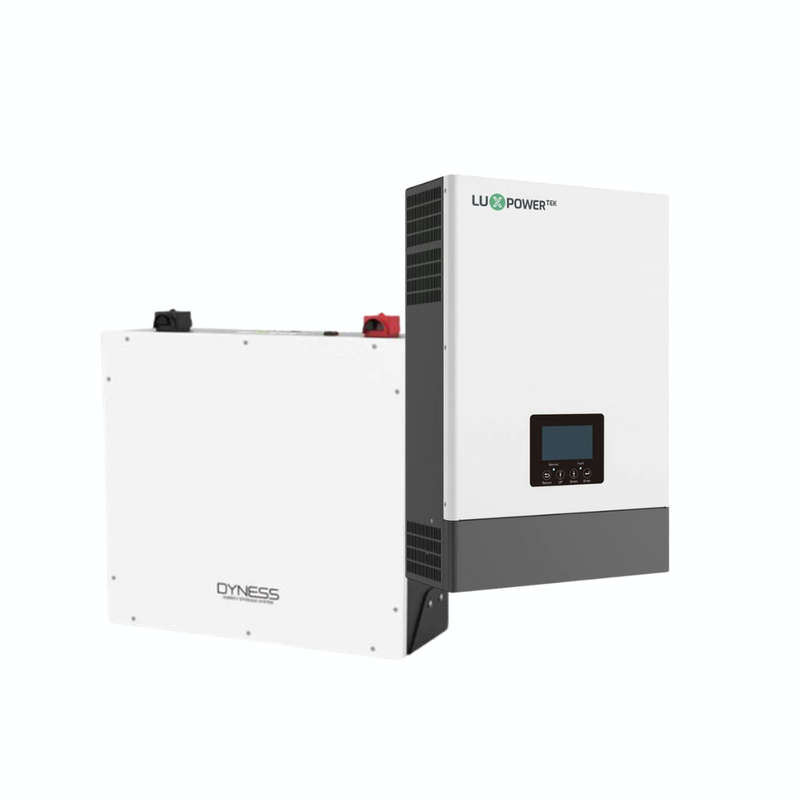

5KVA / 5000W LUXPOWER MPPT Hybrid Inverter + 5.12kWh DYNESS Lithium Battery Combo

LuxPower 5kW Off-Grid Inverter & Dyness 5.12kWh Lithium Battery Hybrid Solar Solution

Description:

The LuxPower SNA5000 WPV 5kW Off-Grid Inverter paired with the Dyness 5.12kWh Lithium Battery delivers an efficient, high-performance solar energy solution. Designed for off-grid and hybrid solar applications, this system provides seamless power management with intelligent load handling, remote monitoring, and robust battery compatibility.

Inverter Features:

• Hybrid & Off-Grid Modes: Smart power management for independent energy solutions.
• Dual MPPT Design: Wide PV input voltage range (90-500Vdc) for maximum solar energy harvesting.
• Battery-Free Operation: Can run loads directly from solar and grid power.
• BMS Compatibility: Communicates with multiple lithium battery brands for seamless integration.
• Remote Monitoring: Free WiFi connectivity for real-time tracking and firmware updates.
• Parallel Operation: Scalable up to 10 units for expanded power needs.
• Generator Interface: Supports independent generator connection for backup power.

Technical Specifications:

• PV Input:
  • Normal Operating Voltage: 240Vdc
  • Maximum PV Input Voltage: 500Vdc
  • Maximum Solar Charging Current: 120A
• Grid/AC Output:
  • Nominal Output Voltage: 220/230/240Vac
  • Feed-in Grid Voltage Range: 195-253Vac
  • Peak Efficiency: 97%
• Battery:
  • Voltage Range: 20-33Vdc
  • Maximum Charging Current: 100A
  • Maximum Battery Discharge Current: 150A
• Physical & Connectivity:
  • Dimensions: 438 × 295 × 105 mm
  • Weight: 9 kg
  • Communication: RS485 / CAN

Battery Features (Dyness 5.12kWh DL5.0 100AH 1C):

• Advanced LiFePO4 Technology: Longer lifespan, increased safety, and higher efficiency.
• Scalable Power: Supports multiple units in parallel for expanded energy storage.
• Fast Charge/Discharge: Maximum charge and discharge current of 75A.
• Integrated BMS: Intelligent battery management system for optimal performance.
• Compact & Durable: Space-saving design with robust construction for various applications.

Battery Specifications:

Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery DL5.0 100AH 1C

• • Model : DL5.0 100AH 1C

  • Module Type: LiFePo4
  • Battery Module Capacity: 5.12kWh
  • Battery Module Voltage: 51.2Vdc
  • Battery Module Capacity: 100Ah
  • Battery Cell Capacity: 320Wh
  • Battery Cell Voltage: 3.2Vdc
  • Battery Cell Capacity: 100Ah
  • Recommended Battery Module Charge & Discharge Current: 50A
  • Maximum Battery Module Charge & Discharge Current: 75A
  • Battery Module Cell Quantity: 16pcs
  • IP20
  • Charge Condition: 0°C to 55°C
  • Discharge Condition: -20°C to 55°C
  • Storage Temperature: -10°C to 35°C
  • Configuration: max 40 modules parallel
  • Communication: CAN/RS485
  • Weight: 50Kg
  • Dimensions (W x D xH): 558 x 545 x 190 mm

What's Included:

1 × LuxPower 5kW Hybrid Off-Grid Inverter (SNA5000 WPV)
1 × Dyness 5.12kWh Lithium Battery (DL5.0 100AH 1C)
1 × WiFi Dongle for Remote Monitoring
Battery Cables & Mounting Brackets

Warranty & Installation Requirements:

• 2-Year Warranty on inverter
• 10-Year Warranty on battery.
• Installation must be performed by a qualified wireman or Master Electrician registered with the Department of Labour.
• A valid Electrical Certificate of Compliance (COC) must be issued upon installation.
• The system must comply with SANS 10142 and all applicable regulations.
• Warranty claims require: Installation photos, a valid COC, and proof of a qualified installer.
