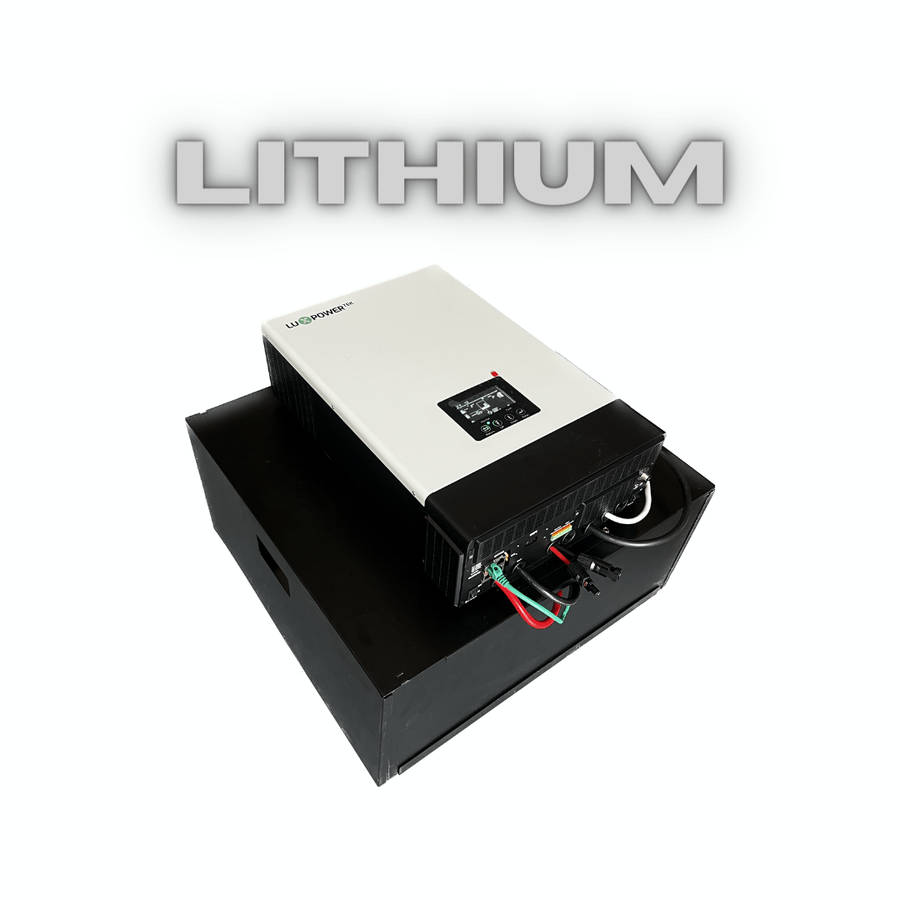

5KVA / 5000W LuxPower Portable Plug and Play power System + 5.12kWh Shoto Lithium Battery / + WIFI / MPPT
Description:
Reliable Backup Power Solution Load Shedding & Off-Grid Ready
This plug-and-play hybrid inverter system offers an efficient and reliable backup power solution for homes and businesses. Featuring the 5KVA (5000W) LuxPower SNA5000 WPV inverter and a 5.12kWh Shoto lithium battery, this system ensures continuous power supply for essential appliances. Designed to be solar-ready, it allows for seamless integration with solar panels, offering a cost-effective, eco-friendly power solution.
Assembly Notice: Trolley assembly requires 2-3 hours before in store collection.
Key Features & Benefits:
Automatic Power Transfer Instantly switches to battery power during outages.
Pure Sine Wave Output (Power Factor 1.0) Ensures safe operation of sensitive electronics.
Dual MPPT Solar Charge Controller (Built-in) Maximizes solar charging efficiency.
High PV Input Voltage (Up to 480V DC) Supports a wide range of solar panels.
WiFi & GPRS Remote Monitoring Track system performance via mobile app.
Battery Equalization Function Enhances battery longevity and efficiency.
Flexible Power Configuration Can operate with or without batteries.
Parallel Expansion Supports up to 10 inverters for increased capacity.
Compact, Portable Design Equipped with lockable wheels for easy mobility.
Battery Backup Performance:
- Powers a 150W load (TV, WiFi, lights, etc.) for up to 45-50 hours on a full charge (100% Depth of Discharge).
- Extended Cycle Life Up to 5000+ cycles, significantly outlasting traditional lead-acid batteries.
- Efficient Charging & Discharging Maintains a 90% usable capacity, reducing power loss.
- Safe & Reliable Lithium Iron Phosphate (LiFePO4) chemistry eliminates overheating, overcharging, and short-circuit risks.
System Specifications:
Inverter Specifications (LuxPower SNA5000 WPV):
- Rated Power: 5000W / 5000VA
- AC Output Voltage: 230V AC ± 5%
- Surge Power: 10,000VA (5 seconds)
- Efficiency (Peak): >98%
- Waveform: Pure sine wave
- Transfer Time: 10ms
Solar Charger Specifications:
- Maximum PV Array Power: 6000W
- MPPT Operating Voltage Range: 100V 385V DC
- Maximum PV Array Open Circuit Voltage: 480V DC
- Maximum Solar Charge Current: 100A
Battery Charger Specifications:
- Battery Voltage: 48V DC
- Battery Type: Lithium / Lead-Acid
- Maximum Charge Current (AC): 60A
- AC Input Voltage: 230V AC
- Frequency Range: 50Hz / 60Hz (Auto Sensing)
Battery Specifications (Shoto 5.12kWh Lithium Battery):
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Energy Storage Capacity: 5.12kWh
- Cycle Life: >5000 Cycles (90% Depth of Discharge)
- Charge Temperature Range: 0°C 45°C
- Discharge Temperature Range: -20°C 65°C
- Built-in Battery Management System (BMS): Yes
- Max Continuous Discharge Current: 100A
- Compatible with: Growatt, Goodwe, Victron, Deye, Sofar, LuxPower & more
Physical Specifications:
- Inverter Dimensions: 330mm x 504mm x 135mm
- Inverter Weight: 14kg
- Trolley Size: 60cm x 60cm x 45cm
- System Weight: Approx. 60kg
- Protection Degree: IP20 (Indoor Use)
What's Included in the System?
1x 5KVA LuxPower Hybrid Inverter + WIFI
1x Shoto 5.12kWh Lithium-Ion Battery (51.2V, 100Ah)
1x Heavy-Duty Portable Steel Box with Lockable Wheels
1x Surge Plug (1m Power Cable, 2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)
1x Coms Cable for Battery Communication
1x User Manual
Installation & Warranty:
- Installation Requirement: Must be installed by a certified electrical wireman or master electrician with a valid Department of Labour registration.
- Certificate of Compliance (COC): A COC is required post-installation to ensure compliance with SANS 10142 safety standards.
- Warranty Coverage:
- 2-Year Warranty on the inverter.
- 5-Year Warranty on the battery.
- Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional.
Be Prepared for Load Shedding Get Reliable Backup Power Today!
This high-performance, solar-ready backup system ensures uninterrupted power for your home or business. Whether used for residential, commercial, or industrial applications, it provides long-lasting energy storage, efficient solar integration, and remote monitoring capabilities.
Order yours today and stay powered no matter what!
