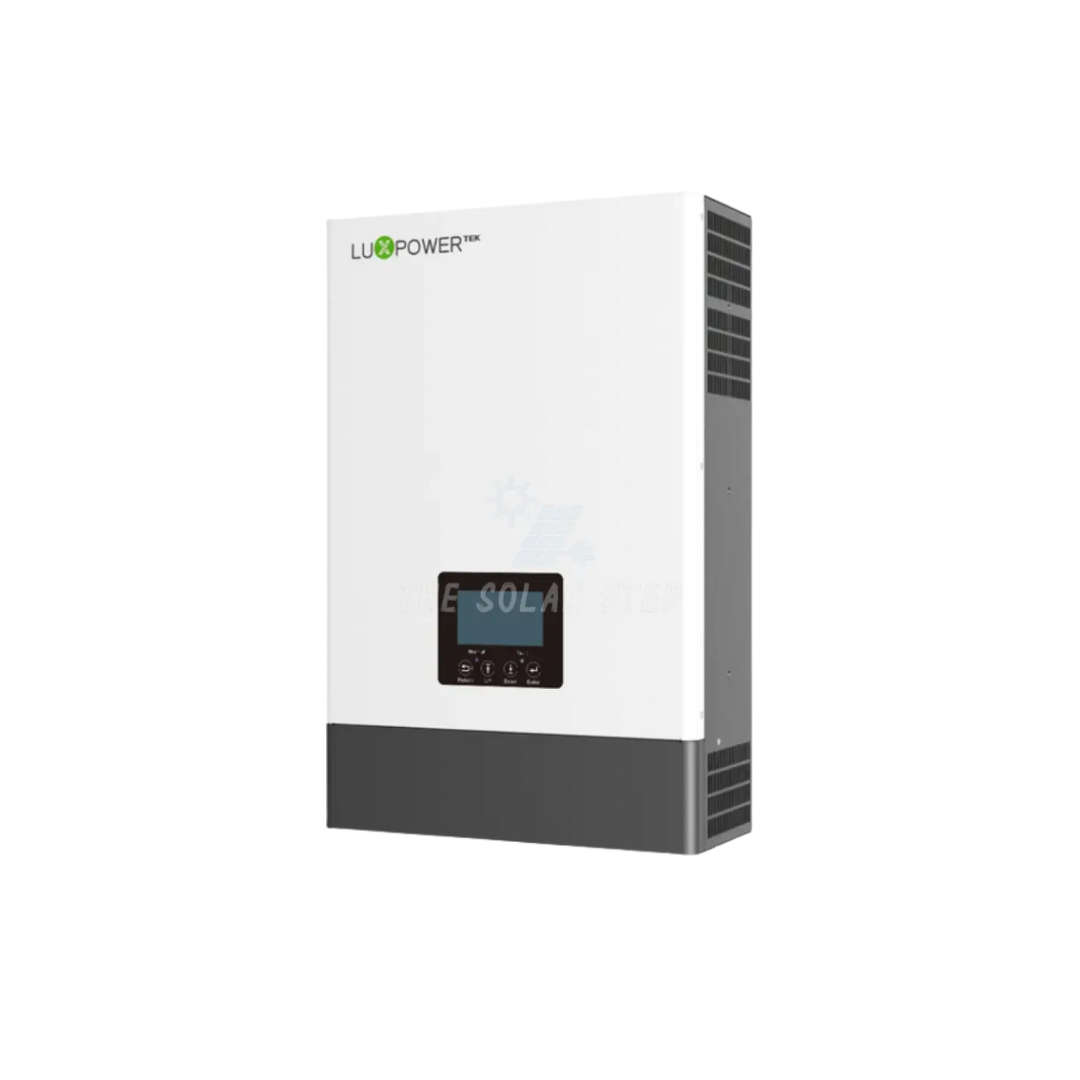

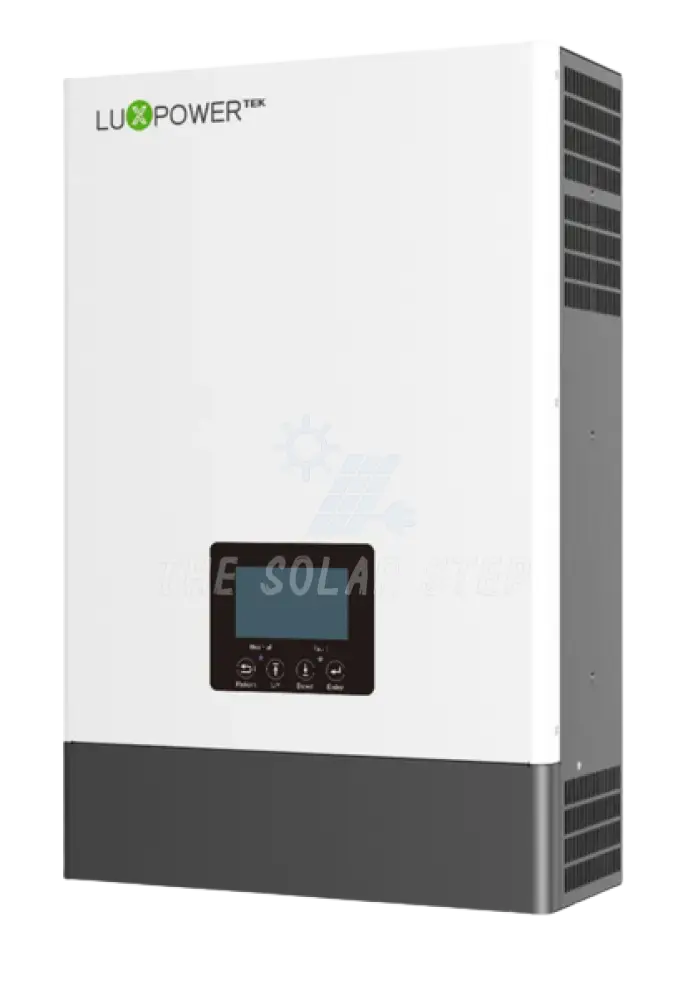

Lux Power 5KW OFFGRID Inverter (SNA5000WPV)
OUTPUT DATA
- Rated power: 5000W/5000VA.
- Parallel capacity: YES.
- Normal output voltage: 230/240, Split phase 220/110 Vac *
- Normal output frequency: 50/60Hz.
- Surge power: 10000VA.
- Switch time: 10ms.
- Waveform: Pure sine wave.
- Battery Type: Lithium/Lead-Acid.
- Normal Voltage: 51.2V/48V.
- Max. Charge Voltage: 59V.
SOLAR DATA
- Max. Recommended PV Power: 3200W/3200W.
- MPPT Tracker: 2.
- Max. PV Open Circuit Voltage: 480Vdc.
- MPPT Voltage Range: 100-385Vdc.
- Max. Solar Charge Current: 100A.
- Max. Solar Input Current: 13A/13A.
- Parallel MPPT Charger: YES.
GRID DATA
- Normal Voltage: 230Vac.
- AC Voltage Range: 110-280Vac.
- Max. Charge Current: 60A.
- Frequency Range: 50/60Hz(Auto Sensing).
INTERFACE
- Display: LCD+LED.
- Lithium Battery Communication: CAN/RS485.
- RS485/Dry Connector: YES/YES.
- Wifi/GPRS: YES/YES.
- 2 YEARS WARRANTY
SPECIFICATIONS
- Dimensions(W/H/D): 330x504x135mm.
- Weight 14Kg.
- Protection DegreeIP20.
- Relative Humidity5%~95% Relative Humidity(Non-condensing).
- Operating Temperature0°C~50°C.
- Storage Temperature-15°C~60°C.
- Applicable for pure off grid/ backup power / self-consumption / on grid situation
- Integrated with 2 MPPT solar charge controllers, MPPT ranges 120V~385V
- Rated power 5KW, power factor 1
- Be able to run with or without battery in On-grid and Off-grid mode
- With separated generator input interface, able to control generator remotely
- Solar and utility grid can power loads at the same time
- With integrated advanced parallel function, up to 9 pcs max paralleling
- Support CAN/RS485 for Li-ion battery BMS communication
- WIFI/ GPRS remote monitoring included, setting and firmware update, support website, free IOS/Android APP
Luxpower offers a range of efficient and affordable off-grid inverters, including the Luxpower 5kW Off-Grid Inverter, Luxpower SNA 5000, and Luxpower ECO Hybrid SNA 5K. These inverters are designed to provide power to homes, with or without grid power, and are compatible with a variety of battery types, including lithium and lead-acid.
The Luxpower 5kW off-grid inverter is a DC to AC power inverter with a built-in battery charger and MPPT solar charge controller, allowing for maximum power generation from solar panels. It is also generator-ready and can be used as an off-grid power source, providing freedom from the grid.
The Luxpower 5kW Off-Grid Inverter is compatible with a variety of battery management systems, including BYD, CFE Battery, Dyness, Pylontech, Revov, Shoto, and UZ Energy. It has a surge power capacity of 10000VA and is rated for 5000W/5000VA.
The Luxpower 5kW off-grid inverter also features a LCD+LED display and is equipped with WiFi/GPRS and RS485/Dry Connector for communication. It comes with a 2-year warranty and is designed for use in a range of operating temperatures and humidity levels.
To purchase or learn more about the Luxpower inverter, visit the Luxpower account login page or read reviews on the Luxpower inverter.
Installation & Warranty
-Standard 2-Year Warranty,
-Must be installed by a qualified wireman or master electrician, registered with the Department of Labour
-A valid COC (Certificate of Compliance) is required
-Installation must fully comply with SANS 10142 regulations
-Non-compliant installations may void the warranty
GENERAL INFO
- Battery voltage: 48VDC.
