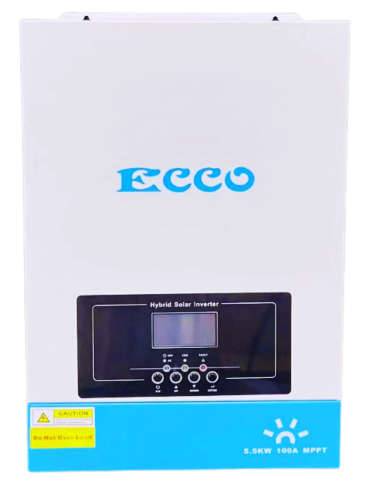

5KVA 5500W 48V 100A MPPT Hybrid Solar Inverter - ECCO (Wifi Monitoring Module Included)

5.5KVA/5500W 100A Pure Sine Wave Solar Inverter

Features

- Pure Sine Wave Solar Inverter

 - Output Power Factor 1

- High PV Input Voltage Range (120VDC - 500VDC)

- Built-in 100A MPPT Solar Controller

- Supports Multiple Output Priority: UTL, SOL, SBU, SUB

- Parallel Operation with Up to 12 units (Parallel Version)

- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)

- Supports Wireless Parallel, Without Extra Sharing of Current Cable

- RS485 Communication for BMS - Wifi Monitoring

- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle

Specifications:

- Inverter Mode

- Rated Power: 5500VA / 5500W

- DC Input: 48VDC, 127A

- AC Output: 230VAC, 50/60Hz, 23.9A AC Charger Mode

- AC Input: 230VAC, 50/60Hz, 40A

- DC Output: 54VDC

- Max. Charge Current(AC): 60A Default 30A

- Max. Charge Current(PV+AC): 100A

- AC Output: 230VAC, 50/60Hz, 23.9A Solar Charge Mode

- Max. PV Array Power: 5500W

- Min. Solar Voltage: 120VDC

- Max. Solar Voltage (VOC): 500VDC

- Max. MPPT Charge Current: 100A Ingress Protection: IP21 (Indoor Use)

- Dimensions ; 38 x 55 x 20 cm

- Weight: 10kg

What's in the box

1 x ECCO 5.5KW Inverter

1 x Wifi Monitoring Module

3 x Connecting Cables

1 x User Guide
