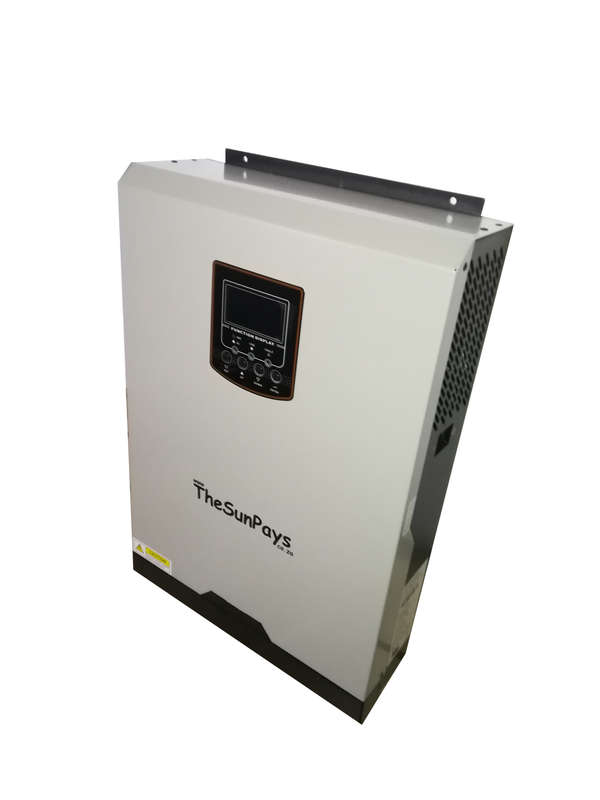

5kVA/5kW 80A VICTOR Pure Sine Wave Inverter Single

5kVA/5kW Inverter

Built in:

• 80A MPPT charge controller (from PV)
• Inverter charger (grid to battery, solar to battery)
• Bypass for grid to usage
• Can work without batteries (at least 3x panels required)

Max Watt Output:

• Continuous: 5kW
• Surge (5 seconds): 10kW

Charging Source Settings:

• Solar first, grid and solar, solar only, grid only- Can be set
• Solar only: 80A (maximum)
• Grid only: up to 60A

Output (discharge) Source:

• Solar only - Can be set
• Utility only (bypass) - Can be set
• Prioritized solar/battery/utility - Can be set

Monitoring & Setting:

• Computer Connection: Serial port
• LCD screen

Expansion: Single Inverter

• PV Panels minimum: 500W
• PV Panels maximum: 4000W
• Batteries minimum: 4 x 100Ah 12V
• Peak Efficiency: 93%
• No Load Power Consumption: <35watt

Expansion:

Single use only

Three Phase:

Does not support three phase

IMPORTANT : THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE LiFePO4 battery. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE AGM / Gel battery.
