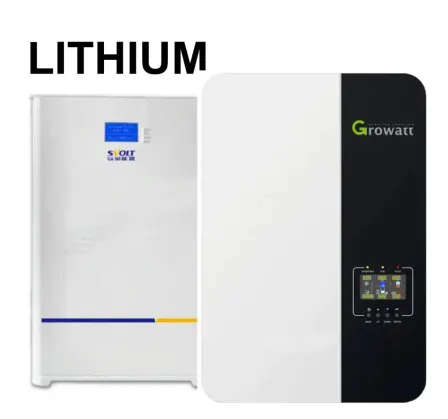

5KVA Growatt & SVolt 5.09KWh Lithium Battery Combo Backup Power Kit

10 were available / new
Indicative market price: R37,000.00
R31,500.00
15% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
GadgetlyProjects(Blacklisted)
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
GAD62814
Bob Shop ID
589247610

GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.

Functions

  • Integrated MPPT charger controller.
  • Equalization charging function.
  • Use with Batteries or without.
  • Max PV input up to 450vDC.
  • Choose grid or solar input priority.
  • WIFI/GPRS remote monitoring.
  • Parallel up to 6 inverters.
  • PV & Grid Power combine if PV energy is insufficient for load.
  • Flexible schedule for charging and discharging the batteries.

Inverter Output [AC]

  • Rated Power: 5000W.
  • AC Voltage Regulation (Battery): 230VAC 5%.
  • Surge Power: 10000VA for 5 sec.
  • Efficiency (Peak): 93%.
  • Waveform: Pure sine wave.
  • Transfer Time: 10ms 20ms.

Solar Charger

  • Maximum PV Array Power: 6000W.
  • MPPT Range @ Operating Voltage: 120VDC 430VDC.
  • Maximum PV Array Open Circuit Voltage: 450vDC.
  • Maximum Solar Charge Current: 100 A.

AC Charger

  • AC Charge Current: 80A.
  • AC Input Voltage: 230 VAC.
  • Selectable Voltage Range: 230 VAC.
  • Frequency Range : 50 Hz/60 Hz (Auto sensing).

Physical

  • Protection degree: IP20.
  • Height: 330 x 485 x 135mm.
  • Weight: 12 kg

Key Features

  • Intelligent Off-Grid & Hybrid modes
  • PV and AC Power can power loads simultaneously
  • 2 x MPPTs with a wide input voltage range.
  • BMS communication to most leading brands of Batteries (See List)
  • Free monitoring via the app and remote upgrades.
  • Single or unbalanced three phase
  • Parallel up to 10 units.
  • Independent generator interface.

PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A

What's in the box

1 x Inverter
1 x User Manual
1 x Wifi Dongle

Battery Specifications:

SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery

The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

Energy:5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage:48V
Nominal Capacity :106Ah
Energy Density:5427 KWh
Dimensions(LxWxH) :688 x 447 x 211mm
Weight (Approx.):49.5KGS
Terminal Type: M6
Terminal Torque:8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<30mO
Efficiency - round trip:99%
Self Discharge per Month:<3%
Max parallel connectors:16Pcs
Series connections:Not Allowed
Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20 C to 65
Storage Temperature :0C to 50 C
Bluetooth(App) :Optional
LCD Screen: Optional
Heating Function: Optional
Voltage Window: Optional
Recommend Charge Voltage:43.2V-58.4V
Max Charge Voltage:57.60.20V
Recommend Charge current:58.40.20V
Max Discharging Voltage:43.20.20V
Max Continuous Discharge Current :100A
Peak Discharge Current:150A

Size:

688 x 447 x 211 mm

49.5 Kg

What's In the Box:

  • 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
  • 1 x Red (Positive) Battery Cable
  • 1 x Black (Negative) Battery Cable
  • 1 x Ethernet cable
  • 1 x Manual
  • 1x Wall Mount Bracket
  • 1x Warranty Card

5 Years Warranty

10 Years Service Warranty

Combo includes:

  • 1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (5 Years Warranty)
  • 1x SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery (5 Years Warranty)
  • Battery cables and brackets
