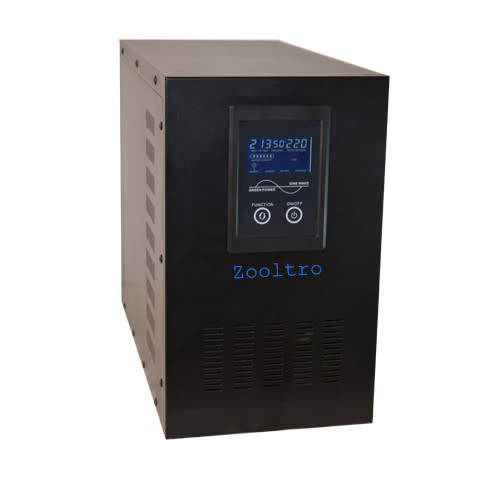

5kVA Pure Sine Wave Inverter 48V (UPS Backup system)

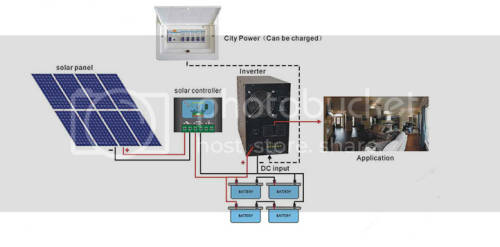

 Working principle: The solar or mains power comes to the UPS. The AC is converted to DC and this DC is constantly charging the battery. The output of the battery is fed to the Sine wave inverter and it converts DC to AC and this feeds the equipment. Since power out is always drawn from the battery, there is no time lag when mains switches off or power is lost; it just stops the battery from being charged and the UPS continues to supply power till the battery runs out

 Solar charging priority than city power mains charging

 Solar power chargers battery as primary power source, if solar power is not available then inverter will automatically be switched to charge battery from city power electricity as a secondary source

 2 in 1:  INVERTER +UPS

 LCD display include voltage input ,output frequency, output voltage, load, battery capacity, normal, unusual, overload.

Low frequency and high quality, Automatic protection function

 Can use AC power supply to charge battery(UPS function)

 Advanced performance by CPU control

 Auto voltage regulation(AVR), wide input voltage 145V~275V accurate output, AVR function

Generator compatibly and external battery connection achievable

  Adapts to all kinds of bad electric environments

 It can automatically start up with mains supply

Advanced automatic constant charging circuit, prolongs battery life

It has battery under-voltage, overload, over-discharge, short-circuit protections

Features:

Type: line Interactive DC to AC inverter

Compatible battery: 4 x 12v Lead acid, Gel or deep cycle batteries (Lead acid is recommended)

KVA ratings: 5000VA

Peak power: 7000W/7KW

Rated power: 3500W/3.5KW

DC voltage: 48VDC

Inverter structure: Power frequency structure

Inverter output: 220VAC/50Hz

Output waveform: Pure sine wave

Display: LCD

Range of application: mobile phone charging, laptops, lamps and lanterns, camera, TV, shaver, CD, fan, video game, security, professional tools, instruments of all electrical power
