This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy accessible button operation such as battery charging current, AC/Solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave inverter
- Configurable input voltage range for home appliances and personal computers via LCD setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC/Solar Charger priority via LCD Setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload/ Over Temperature/ Short Circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- This inverter can power all kinds of appliances in home or office environment, Including motor-type appliances such as tube light, fan, refrigerator and air conditioner
- Item can be mounted
Specifications:
Solar Inverter:
- Operating Temperature Range: -10~50 Degrees Celsius
- Protection Class: Class I
- Protection Degree: IP 20
Inverter Mode:
- Rated Power: 5000VA/5000W
- DC Input: 48VDC,118A
- AC Output: 230VAC, 50/60Hz, 22A
- Output Power Factor: 1.0
AC Charger Mode:
- AC Input: 230VAC, 50/60Hz, 35A
- DC Output: 54VDC, 60A (Max)
Solar Charger Mode:
- Rated Current: 60A
- System Voltage: 48VDC
- Operating Voltage range: 60~72VDC
- Max. Solar Voltage (VOC): 105VDC
- Max Charge Current: 120A
What's in the box

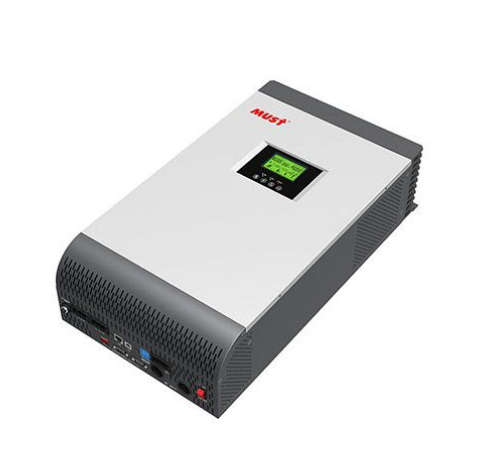

1 x 5KW 48V/60A Pure sine Wave Hybrid Inverter
1 x User Manual
