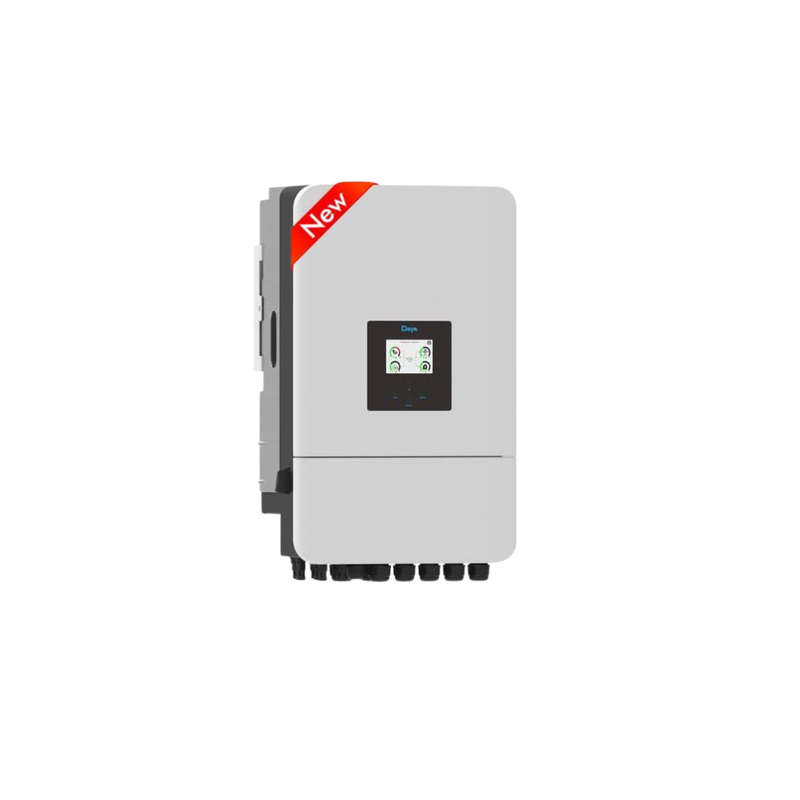

Deye 5kW Hybrid Inverter (Low Voltage) SUN-5K-SG04LP1-EU-SM2
Warehouse stock confirm availability before collection.
Technical Specifications

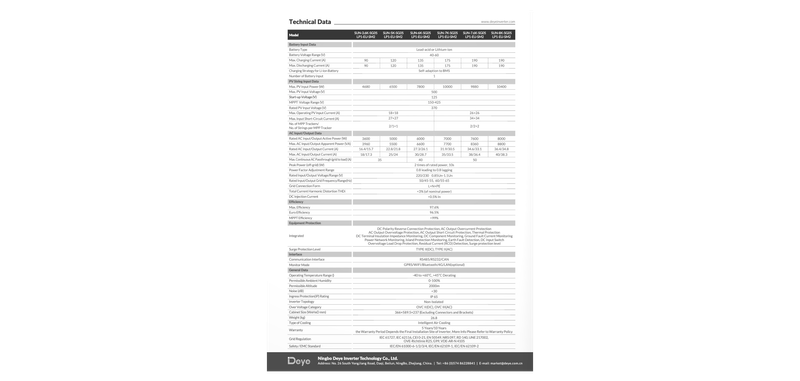

DATA SHEET
Battery Input Data
-Battery Type: Lead-acid or Lithium-ion
-Battery Voltage Range: 4060V
-Max. Charging Current: 120A
-Max. Discharging Current: 120A
-Battery Charging Strategy: Self-adaptive to BMS
PV Input (DC)
-Max. PV Input Power: 6500W
-Max. PV Input Voltage: 500V
-Start-up Voltage: 150V
-MPPT Voltage Range: 150425V
-Rated PV Input Voltage: 370V
-MPPT Tracker / Strings per MPPT: 2 / 1+1
-Max. DC Input Current: 18A+18A
-Short Circuit Current: 27A+27A
AC Output (On-grid)
-Rated Output Power: 5000W
-Max. Output Apparent Power: 5500VA
-Rated AC Voltage / Frequency: 230V / 50Hz
-Rated Grid Output Current: 21.7A
-Max. Output Current: 22.8A
-Power Factor: Adjustable from 0.8 leading to 0.8 lagging
-THD: <3%
-Grid Connection Type: Single-phase
AC Output (Off-grid)
-Max. Output Power: 5000W
-Rated Voltage / Frequency: 230V / 50Hz
-Peak Power (10s): 2x rated power
Efficiency
-Max. Efficiency: 97.6%
-Euro Efficiency: 97.0%
-MPPT Efficiency: 99.9%
General
-Dimensions (W×H×D): 364 × 693 × 200mm
-Weight: 26.8kg
-Noise Emission: <30dB

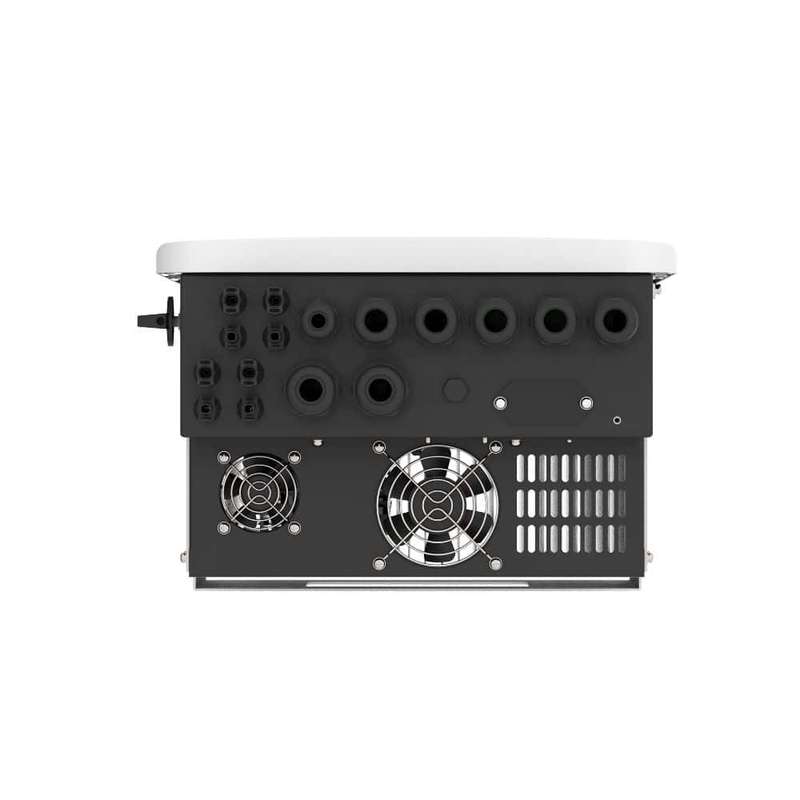

-Cooling: Intelligent air cooling
-IP Protection: IP65 (indoor/outdoor)
-Altitude: 2000m
-Operating Temp.: 40°C to 60°C (derating above 45°C)
Features & Communication
-Monitor Options: Wi-Fi / GPRS / RS485 / CAN / Bluetooth / 4G
-Supported Battery Comms: CAN/RS485
-Inverter Topology: Transformerless
-Warranty: 5 years standard
Certifications
-Safety / EMC / Grid Compliance: IEC62109-1/2, IEC61727, NRS097-2-1, SANS, CE
Installation & Warranty
-Standard 5-Year Warranty, extendable to 10 years depending on installation site and registration
-Must be installed by a qualified wireman or master electrician, registered with the Department of Labour
-A valid COC (Certificate of Compliance) is required
-Installation must fully comply with SANS 10142 regulations
-Non-compliant installations may void the warranty
