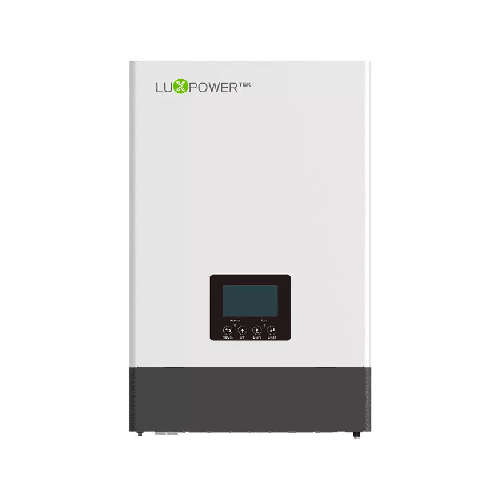

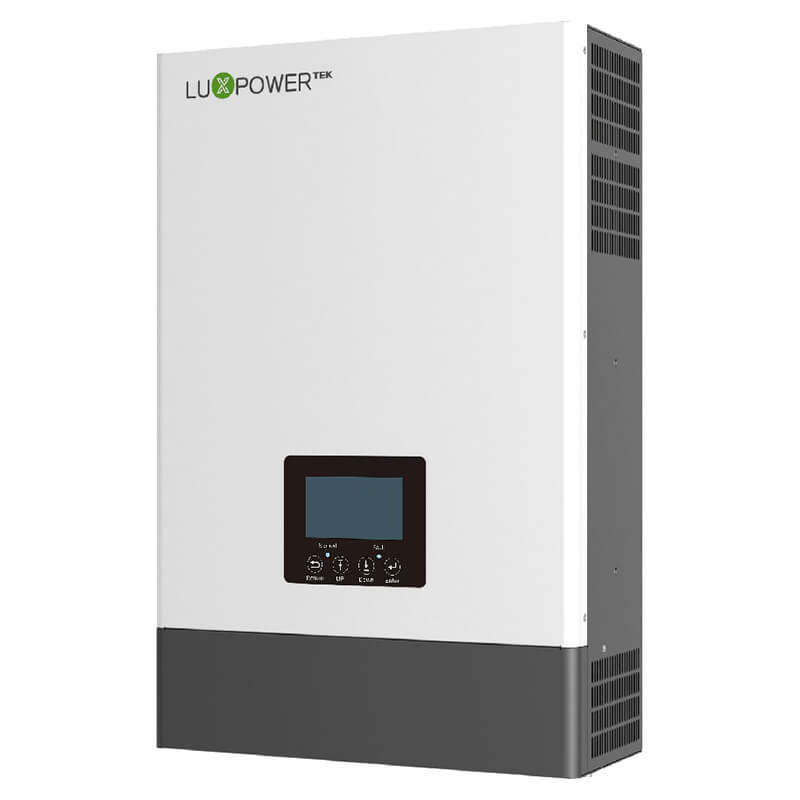

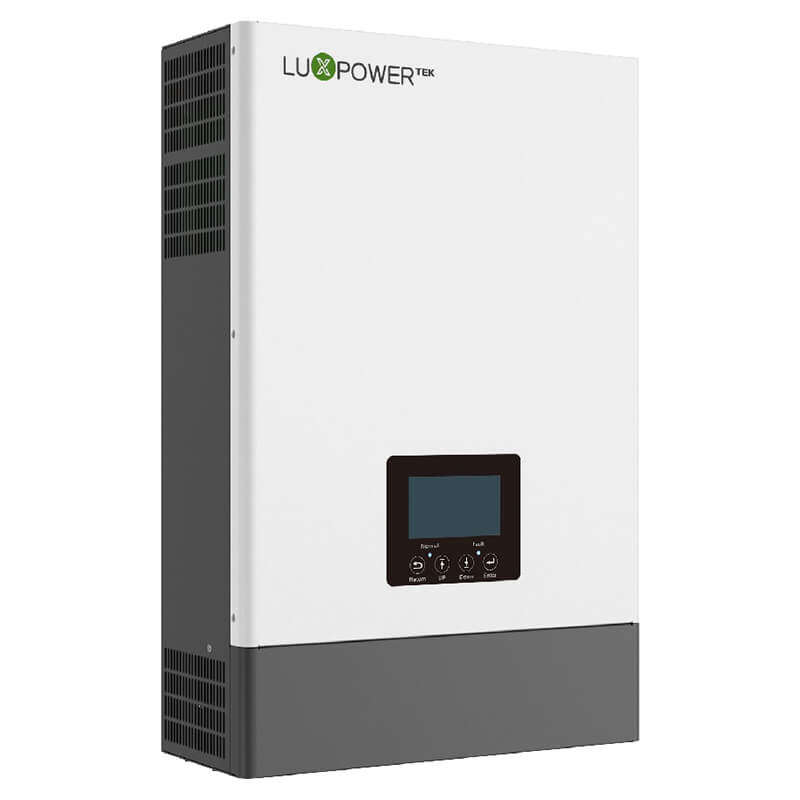

5kW Lux Power Off-Grid Inverter (SNA Series)

Overview

The 5kW Lux Power Off-Grid Inverter from the SNA Series is a robust and efficient solution designed for residential and small commercial solar power systems. This inverter is perfect for users who need a reliable off-grid energy solution, offering high performance and seamless integration with various solar setups. Whether you are looking to power your home or a small business, the Lux Power 5kW inverter ensures consistent energy supply even in areas with unstable or non-existent grid connections.

Key Features

• High Efficiency: The Lux Power 5kW inverter boasts an impressive efficiency rate, maximizing the energy harvested from your solar panels to ensure optimal power output.
• Off-Grid Capabilities: Designed specifically for off-grid applications, this inverter provides a reliable power source for homes and businesses in remote or grid-independent locations.
• Advanced Battery Management: The inverter supports multiple battery types, including lithium-ion and lead-acid, with intelligent battery management to prolong battery life and ensure efficient energy storage.
• User-Friendly Interface: Featuring an intuitive LCD display and easy-to-use controls, the inverter allows for real-time monitoring of your solar system's performance and quick adjustments as needed.
• Durable Design: Built to withstand harsh environmental conditions, the Lux Power 5kW inverter features a rugged design and high-quality components, ensuring long-term reliability and durability.

Specifications

Input (PV DC)

• Max. PV array power(W): 8000 (4000/4000)
• Rated PV input voltage(V): 320
• Number of independent MPPT inputs: 2
• PV input voltage range(V): 100~480
• MPPT voltage range(V): 120~385
• Start-up voltage(V): 100
• Max. PV input current per MPPT(A): 17/17
• Max. PV short-circuit current input per MPPT(A): 25/25

Battery

• Compatible battery type: Lithium-ion/Lead-Acid
• Rated battery voltage(V): 48
• Battery voltage range(V): 38.4~60
• Max. charge/discharge current(A): 110/110
• Max. charge/discharge power(W): 5000
• Recommend capacity of battery per inverter: >200AH
• Force wake up battery from PV function: YES
• Force wake up battery from Grid function: YES

Grid

• Rated AC voltage(V): 230
• Rated AC frequency(Hz): 50/60
• Rated AC output current(A): 22
• Rated AC output power(W): 5000
• Max. AC input power(W): 8000
• PF: 0.99 (Adjustable from 0.8 leading to 0.8 lagging)
• THDI: <5%
• Max. continuous AC passthrough current(A): 35

UPS

• Rated output power(W): 5000
• Rated output voltage(V): 230
• Rated output current(A): 22
• Rated output frequency(Hz): 50/60
• Surge power, duration: 2Pn, <2s
• Switching time: <15ms@Single/<30ms@Parallel
• Wave form: Sine wave
• THDV: 3%

Efficiency

• Max. MPPT efficiency: 99.9%
• Max. efficiency: 93.0%
• Max. charge efficiency: 93.0%
• Max. discharge efficiency: 93.0%

Protection

• Over current/voltage protection: YES
• AC Short-circuit current protection: YES
• Grid monitoring: YES
• AC Surge protection Type III: YES
• Battery reverse polarity protection: YES

General

• Dimensions(W*H*D): 330*505*135mm/13*19.9*5.3inch
• Weight: 14.5kg/32lbs
• Ingress protection rating: IP20
• Operating environment temperature range(°C): 0~50
• Storage temperature range(°C): -15~60
• Relative humidity: 5%~95%
• Display & Communication interface: LCD+LED, RS485/Wi-Fi/CAN
• Warranty: 2 years
• Cooling method: Smart Cooling
• Topology: Transformer-less
• Altitude: <2000m
• Noise emission(typical): <50dB

Standards & Certification

IEC 62109-1, IEC 61000, IEC62040/EN62040, IEC62109, NRS 097-2-1

Downloads

• Download Datasheet

Applications:

• Residential solar power systems in off-grid locations
• Small commercial solar installations
• Remote cabins and holiday homes
• Backup power solutions for areas with unreliable grid power

Why Choose the Lux Power 5kW Inverter? Choosing the Lux Power 5kW Inverter means investing in a high-performance, reliable energy solution that is tailored for off-grid applications. With its advanced features, efficient power conversion, and durable design, this inverter ensures you have a consistent and dependable power supply, no matter where you are.
