5m AVIC Car GPS Navigation Internal External Magnetic Aerial Antenna for Pioneer F700BT F900BT

12 were available / new

R473.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3477

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612463682

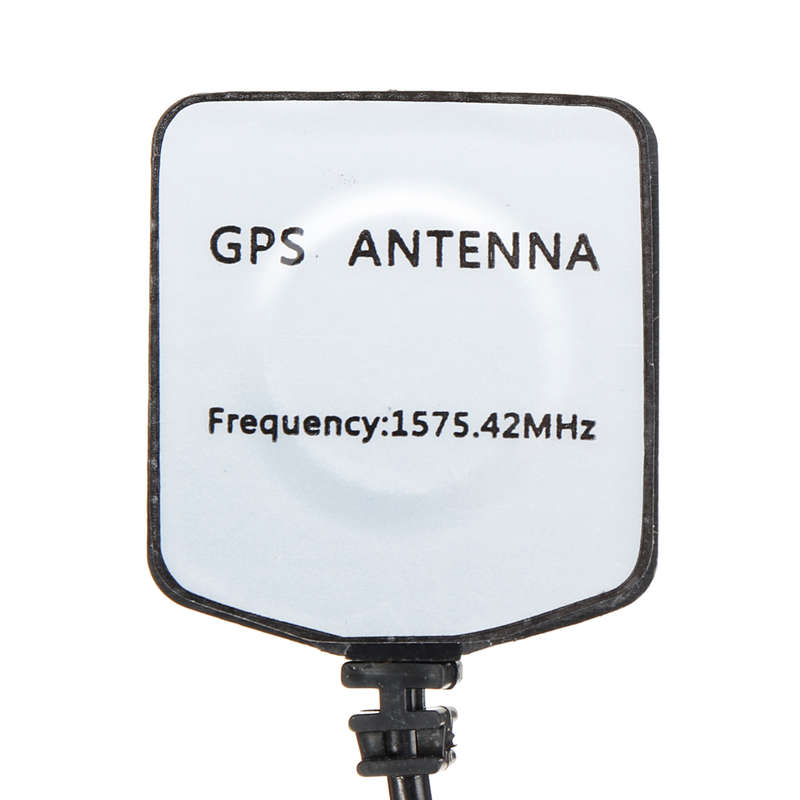

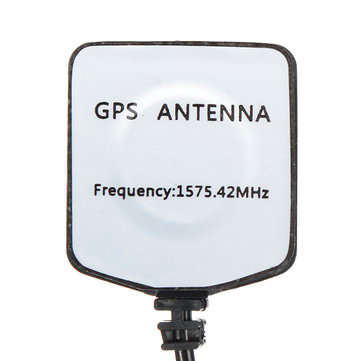

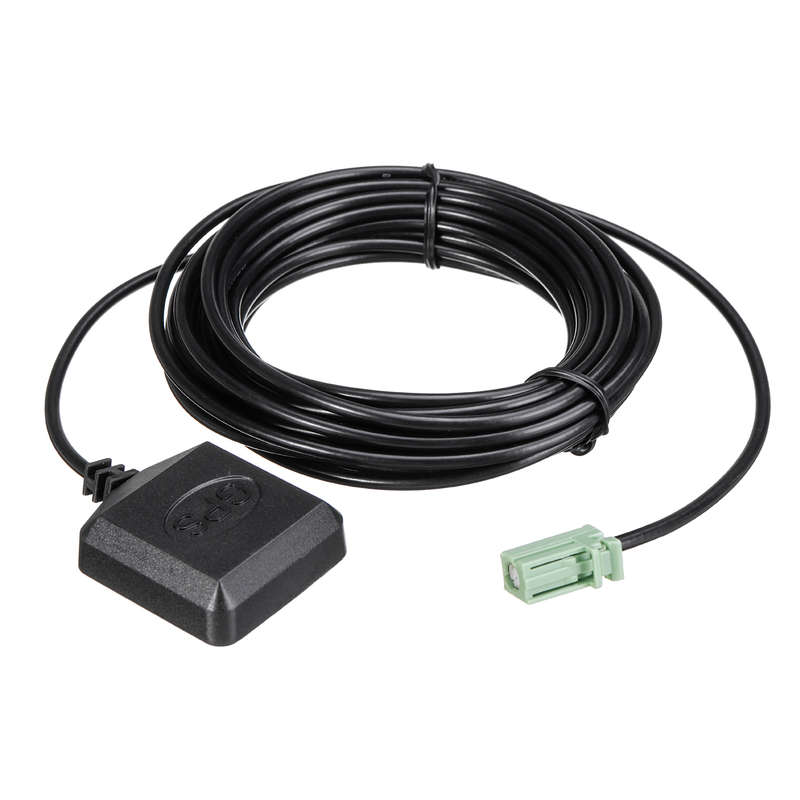

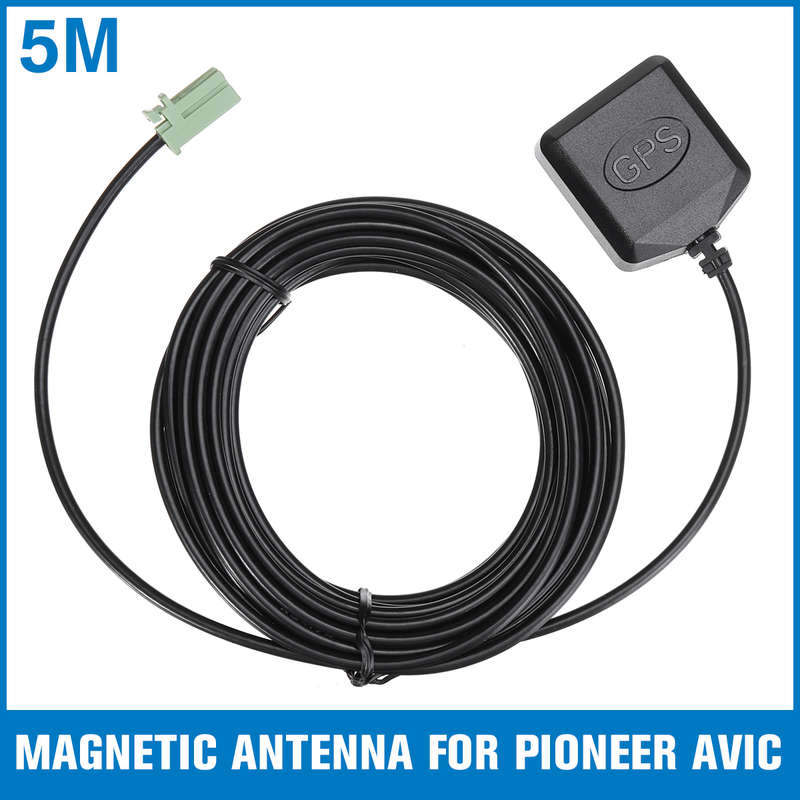

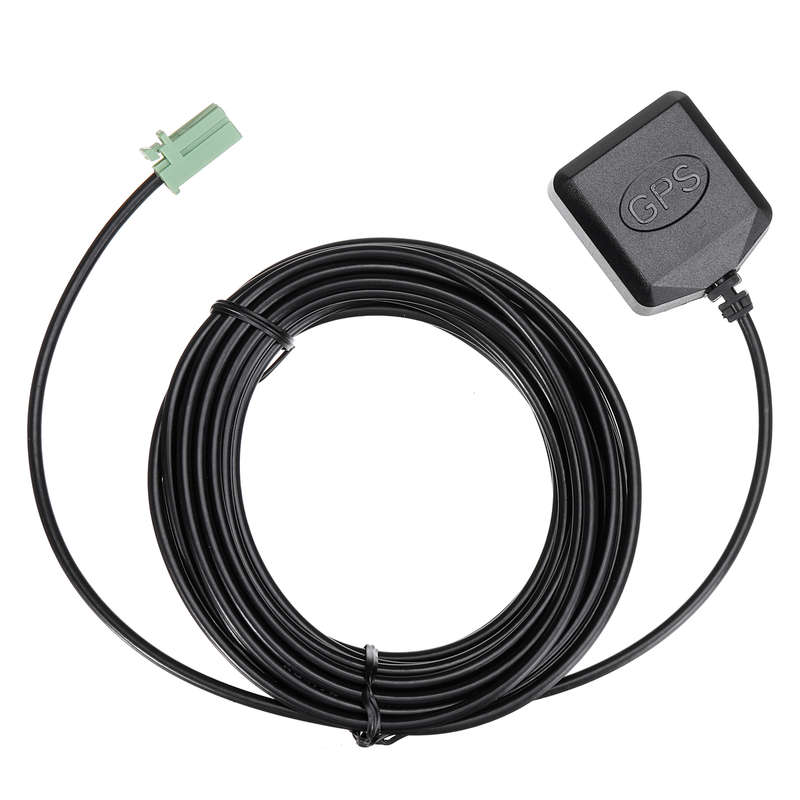

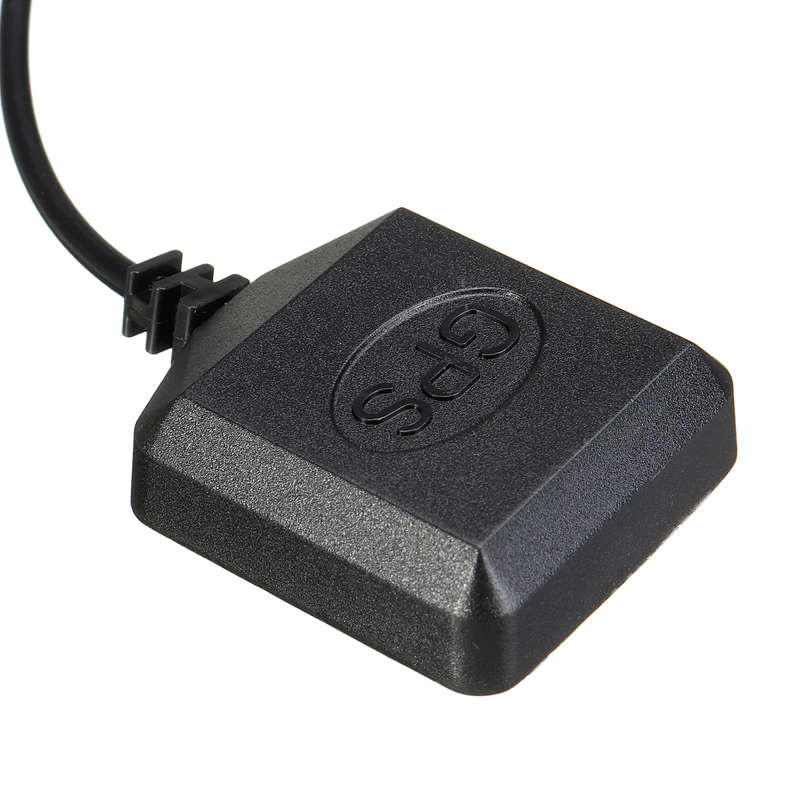

5m GPS AVIC-F Internal / External Magnetic Aerial Antenna for Pioneer F700BT F900BT ? Description: This GPS antenna can be mounted both internal (eg, pit,roof) and external in car body by a very strong magnet on the enclosure.
Placing the antenna outside the car makes a better receiving signal transmitted from the satellite. ? Specifications: Compatible Brand: For Pioneer Connectivity: Avic length: about 5 meters Active gain for better signal Built-in Powerful Low Noise Amplifier Magnetic Base and Water Resistant ? Compatible Model:? For all Pioneer AVIC navigation models, such as AVIC-F7010BT, AVIC-F700BT, AVIC-F900BT, AVIC-F90BT, AVIC-Z110GT, AVIC-X920BT, etc. ? Features: Dielectric Antenna Center Frequency: 1575.42MHz&pm;3 MHz V.S.W.R: 1.5:1 Band Width: &pm;5 MHz Impendence: 50 ohm Peak Gain: >3dBic Based on 7??7cm ground plane Gain Coverage: >-4dBic at a??90?ﾣ<0<+90?ﾣ(over 75% Volume) Polarization RHCP ? LNA/Filter: LNA Gain (Without cable): 28dB Typical Noise Figure: 1.5dB Filter Out Band Attenuation (f0=1575.42 MHZ): 7dB Min f0+/-20MHZ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ V.S.W.R: <2.0 DC Voltage: 3V , 5V, 3V to 5V DC current: 5mA ,10mA Max ? Mechanical: Weight: <110(g) Size: 50??39??16mm Cable RG174: 5 meters Mounting: Magnetic base Housing: Black ? Environmental: Working Temp: -40~+85a?? Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis Humidity Humidity: 95%~100%RH Weatherproof: 100% Waterproof ? Package included: 1x GPS Antenna
