5m AVIC Car GPS Navigation Internal External Magnetic Aerial Antenna for Pioneer F700BT F900BT

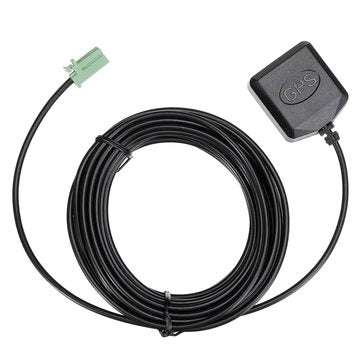

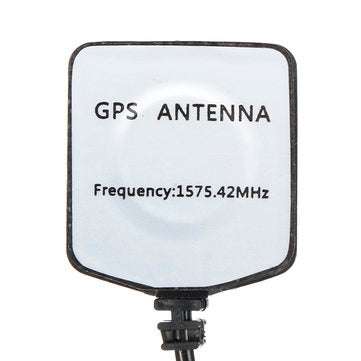

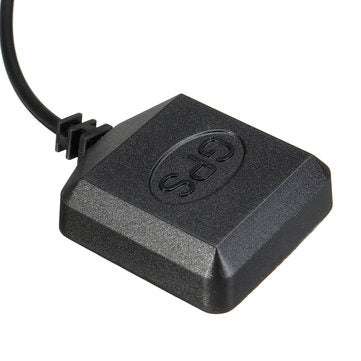

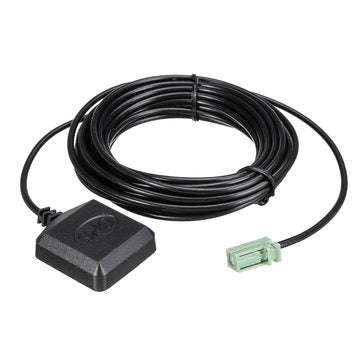

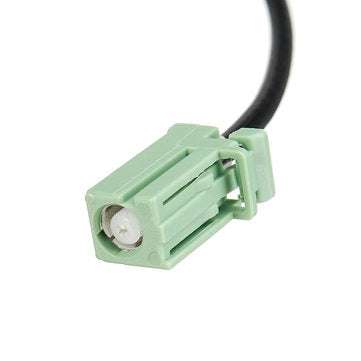

5m GPS AVIC-F Internal / External Magnetic Aerial Antenna for Pioneer F700BT F900BT Description: This GPS antenna can be mounted both internal (eg, pit,roof) and external in car body by a very strong magnet on the enclosure.
Placing the antenna outside the car makes a better receiving signal transmitted from the satellite. Specifications: Compatible Brand: For Pioneer Connectivity: Avic length: about 5 meters Active gain for better signal Built-in Powerful Low Noise Amplifier Magnetic Base and Water Resistant Compatible Model: For all Pioneer AVIC navigation models, such as AVIC-F7010BT, AVIC-F700BT, AVIC-F900BT, AVIC-F90BT, AVIC-Z110GT, AVIC-X920BT, etc. Features: Dielectric Antenna Center Frequency: 1575.42MHz&pm;3 MHz V.S.W.R: 1.5:1 Band Width: &pm;5 MHz Impendence: 50 ohm Peak Gain: >3dBic Based on 77cm ground plane Gain Coverage: >-4dBic at a90ﾣ<0<+90ﾣ(over 75% Volume) Polarization RHCP LNA/Filter: LNA Gain (Without cable): 28dB Typical Noise Figure: 1.5dB Filter Out Band Attenuation (f0=1575.42 MHZ): 7dB Min f0+/-20MHZ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ V.S.W.R: <2.0 DC Voltage: 3V , 5V, 3V to 5V DC current: 5mA ,10mA Max Mechanical: Weight: <110(g) Size: 503916mm Cable RG174: 5 meters Mounting: Magnetic base Housing: Black Environmental: Working Temp: -40~+85a Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis Humidity Humidity: 95%~100%RH Weatherproof: 100% Waterproof Package included: 1x GPS Antenna
