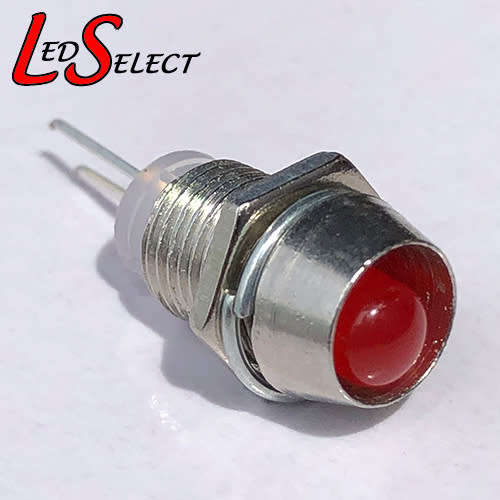

5mm Led Red + Metal Holder **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
5mm LED Red + Holder:
Category: 2000312645 / 2018312645 - 5mm LED
Specifications (LED):
Size: 5mm
Forward Voltage: 2.0 - 2.2V DC
Lens Color: Red
Reverse Current (uA): <=30
Viewing Angle: 20 - 25 Degree
Absolute Maximum Ratings: (Ta=25°C)
Max Power Dissipation: 80mw
Max Continuous Forward Current: 24mA
Max Peak Forward Current: 75mA
Lead Soldering Temperature: 240°C (<5Sec)
Operating Temperature Range: -25°C - +85°C
Preservative Temperature Range: -30°C - +100°C
Specifications (Holder):
Material: Plastic and metal
Colour: Silver
Size: Approx. 1.4 x 1.1cm
Thread Diameter: Approx. 7.6mm
Internal: 5mm
